- Page 1 3DME BT G2 © 2022 ASI Audio. All rights reserved. Model 3DME x Sensaphonics is protected by US Patent 8,160,26 3DME-Product-Manual-Android-BTG2-English-20220316 Novocento Wide Light and Avenir Next Demi no outlines...
-
Page 2: Table Of Contents
Welcome to 3DME Three Dimensional Music Enhancement Hardware and Features Getting Started: Connecting Your 3DME and Attaching Eartips 6 The Audio Seal Test 10 The ASI Audio App 13 Pairing the 3DME with the ASI Audio App 15 The Main Screen 17... -
Page 3: Welcome To 3Dme Three Dimensional Music Enhancement

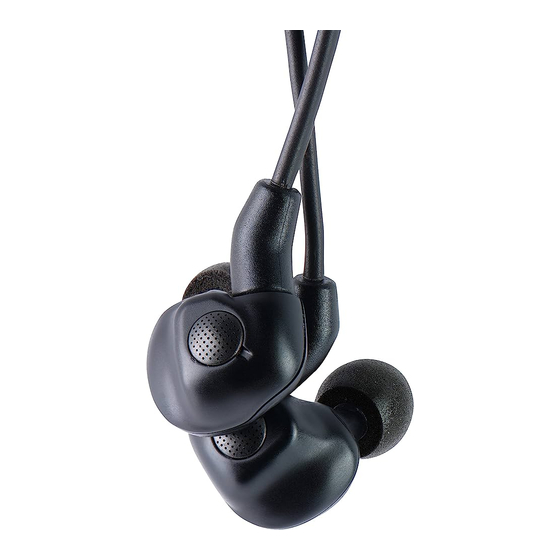

ELCOME HREE IMENSIONAL USIC NHANCEMENT 3DME Bodypack Mixer/Amplifier 3DME is a unique in-ear listening system that combines patented Connects and combines your Active Ambient™ audio sound source with the ambient technology from Sensaphonics® mic feed to add 3D stage mic with a powerful smartphone app level to your monitor mix. -
Page 4: Hardware And Features
ARDWARE EATURES • Universal fit in-ear monitors • 3DME In-Ear Monitors • IEM Drivers: Dual-driver • 3DME bodypack with lithium ion battery balanced armature, crossover-free • Stereo jumper cable • Embedded binaural ambient • USB-C bodypack charging cable microphone system •... - Page 5 7 - USB power/charging status LEDs 3DME Bodypack (bottom) 1 - Ambient volume control switches (+/-) 8 - Power switch (bottom) (top panel) 9 - Monitor output mini-jack (bottom); 2 - Battery status LEDs (4 LEDs) (top tip-left, ring-right. The output signal...
-
Page 6: Getting Started: Connecting Your 3Dme And Attaching Eartips
GETTING STARTED: CONNECTING YOUR 3DME AND ATTACHING EARTIPS Your 3DME universal-fit IEMs have embedded Active Ambient microphones to capture the ambient sound around you and deliver accurate 3D directionality. - Page 7 For rich, full sound, the earpieces must be fully inserted to achieve a full, tight seal. Three sizes of ear tips are included. NOTE: The earpiece cables are designed to run up, over and behind the ears, meeting behind the head. Ear buds without tips 2.
- Page 8 2. Roll the tip between your fingers 4. Hold the earpiece in place for to compress the foam into a thin 15-30 seconds, allowing the tip to cylinder. expand and conform to your ear canal. This will create a custom fit 3.
- Page 9 Audio Seal Test. Very rarely, an ear tip can come off and remain in the ear canal when removing your 3DME IEM. Should this occur and the ear tip cannot be removed easily, please consult or immediately visit an audiologist or medical provider.
-
Page 10: The Audio Seal Test
To access, tap the ‘Seal Test button (ear) found in the upper right of the ASI Audio app screen In-ear monitors require a full seal of the ear canal for full bass response. A poor seal also reduces hearing protection and can enable acoustic feedback. - Page 11 3DME bodypack. consistent, secure fit with a full seal for 2. Connect the 3DME bodypack to the outstanding isolation and comfort. To ASI Audio App. See “PAIRING THE 3DME find an audiologist and get fitted for WITH ASI AUDIO APP”...
- Page 12 What You Hear Probable Meaning What To Do Both tones, clear & at Correct insertion with Rock on! Proceed to the mic level, the same level proper fit & full seal limiter, and EQ screens on the ASI Audio app. Both tones, but the Incomplete seal Isolate problem to left or right...
-
Page 13: The Asi Audio App
UDIO The ASI Audio app is the control center for Music Enhancement, with access to a suite of sound tools that let you customize the sound of your 3DME. Download from Google Play Store or Amazon Appstore. Supported Android versions: 7.0... - Page 14 The app has 3 main screens: Mic Level & Limiter; Equalizer; and Options. As you customize the Mic level, Limiter, and EQ to your preferences, settings are automatically saved to the bodypack and stay active until changed with the app.
-
Page 15: Pairing The 3Dme With The Asi Audio App
PAIRING THE 3DME WITH ASI AUDIO APP 4. Go to the ASI Audio App and touch the 1. Download the ASI Audio 3DME BT G2 App from Google Play Store or Amazon Appstore. Bluetooth icon on the upper left corner 2. - Page 16 6. Connection status will display 8. The Bluetooth icon on the upper left "Connected". corner will have 2 dots on it indicating the devices are paired 7. Touch "<ASI Audio" on the upper left corner.
-
Page 17: The Main Screen
CREEN Includes controls for ambient mic level and limiter threshold. Left and right channels may be treated as a binaural pair, or adjusted separately by tapping the Join/Separate button. Joined L/R channels is the system default. The Join/Separate switch on this screen applies to the Mic level and Limiter Threshold. - Page 18 Note: The 3DME’s ambience microphone -Maximum volume reduction is 20 feature can also be used by itself (without a separate IEM feed) for acoustic -Limiter function can be turned off ensembles – essentially operating as a (not recommended!). custom-tuned high fidelity earplugs with volume control.
- Page 19 Notes on limiting Feedback/Start-up Squeal • • The 3DME limiter is designed for Suppressor: music with adaptive attack, average responding, frequency selective If the earpieces are inserted with operation. the bodypack already switched • The Limiter Action Link/Unlink on, a feedback squeal could occur until the earpieces are sealed.
-
Page 20: The Equalizer Screen
QUALIZER CREEN The 3DME lets you customize personal equalization via a 7-band EQ. -Each band is adjustable from +12 to -12 -The Separate/Join switch (at the bottom) allows Left and Right channel adjustments to be joined (default) or adjusted separately by choosing LEFT or RIGHT... -
Page 21: The Options Screen
PTIONS CREEN 3DME Bodypack Buttons This option allows you to program the (+/-) buttons on the bodypack top panel for either Step Mode or Set Mode. In Step Mode (default), the + and – buttons on the bodypack change the Mic Level one step at a time (+12 dB to -24 dB, plus Off). - Page 22 Earpiece Type appropriate. The 3DME is supplied with standard high- performance dual driver earpieces. Custom Pro earpieces are available by special order, and may be ordered in dual or quad driver versions. If you are using the bodypack with Custom Pro quad driver earpieces, switch to the Quad position.
-
Page 23: The Pop-Up Menu - Presets And Help
OP-UP RESETS Tap the three dots in the upper right corner to load and save a preset, and open help. Presets and Help... - Page 24 Save a Preset While the 3DME automatically saves current settings for your next session, you can also save multiple presets for different situations. • Tap the 3 dots to open the pop- up menu. • From the pop-up list, tap Save and enter a name for your preset.
- Page 25 • Scroll the list and select a preset. Load a Preset to the Bodypack This downloads the selected Preset to the 3DME bodypack and replaces all current settings. • Tap the “down-arrow” icon to send that Preset to the bodypack •...
- Page 26 Rename a Preset • Scroll My Presets to find the desired preset • Tap the “pencil” icon. and type a new name • Tap the "disk" icon, then DONE to return to the previous app screen If the preset name is loaded, it will also be renamed.
- Page 27 • Firmware updates • About – ASI Audio App Version, 3DME Bodypack Serial Number, 3DME Firmware Version, Warranty Registration, etc. Note: A notification will appear in the ASI Audio App when a Firmware Update is available and ready to install.
- Page 28 Follow the on-screen prompts to locate and download the latest firmware • Wait until the “Installing Firmware” status is complete • Follow the on-screen instructions to disconnect, power down, then turn on and re-connect the 3DME to complete the firmware update...
- Page 29 Several app functions require an internet connection. This includes ASI Audio email, website links, and firmware update.
-
Page 30: Charging The Battery
LED will blink slowly, then quickly The status of the battery on the bodypack is also indicated by the icon at the bottom right of the main screen of the ASI Audio App when the bodypack is connected. Bodypack bottom... -
Page 31: Cleaning And Maintenance
& M LEANING AINTENANCE For maximum life of your 3DME Keep the sound ports and ambient mics system: of your IEMs free of debris. Clogged sound ports can result in reduced levels • Do not expose to temperature and a muddy, muffled sound. Also keep extremes. -
Page 32: About Safe Sound Levels And Hearing Protection
Active Under optimistic OSHA exposure Ambient microphone system, limits, 2 hours at 100 dBA is the 3DME can help swing the odds in safe limit without protection – and your favor. this assumes no levels over 85 dB... - Page 33 Isolating Earphones ASI Audio App Properly fitted IEMs enable safer The 3DME App helps you to keep monitoring by reducing unwanted levels under control in several sound so users hear more clearly ways. First, the Mic Level control at lower volume levels. However,...
- Page 34 3D directionality, which is especially effective for acoustic musicians. When used without a 3DME is a powerful tool, but no monitor mix, 3DME still acts as product will prevent hearing customized high-fidelity hearing injury if you don’t stay within device, with the ambient stage established exposure guidelines.
-
Page 35: Technical Specifications
ECHNICAL PECIFICATIONS 20 Hz– 20 kHz Frequency Response Microphone Input Overload 135 dB-SPL Maximum Output, 500 Hz 122 dB-SPL Microphone Equivalent Input Noise 27 dBA-SPL Monitor Equivalent Input Noise -104 dBV(A) (EQ disengaged), -101 dBV(A) (EQ engaged) Output Noise 20 dBA-SPL (EQ disengaged), 23 dBA-SPL (EQ engaged) Acoustic Insertion gain Off, -24 dB to +12 dB in 16 steps... -
Page 36: Support
ASI Audio Customer Service UPPORT Toll Free: 833.274.2244 Local Customers: 216.970.7873 We are grateful you have decided to Email: customerservice@asiaudio.com be proactive about hearing health. Talk Web: www.asiaudio.com to us: NOTE: This equipment has been tested and found to comply within the limits for a Class B digital device, pursuant to part 15 of the FCC Rules. - Page 37 Beachwood, OH. This warranty is in lieu of Register Your Product other warranties, expressed Register your 3DME through the ASI Audio or implied, including, but not app Help menu or visiting asiaudio.com. limited to, any implied warranty or merchantability of fitness for a Caution: No User Serviceable Parts Inside.
- Page 38 About ASI Audio ASI Audio, Inc. is the result of a partnership between Sensaphonics, Inc. and Think-A- Move, Ltd. By combining the patented Active Ambient™ technology developed by Sensaphonics with Think-A-Move’s expertise in product/app design and manufacturing, we have created 3DME, a next-generation IEM product that takes you beyond mere monitoring to music enhancement.
- Page 39 This equipment complies with FCC/IC RSS-102 radiation exposure limits set forth for an uncontrolled environment. This equipment should be installed and operated with minimum distance 20cm between the radiator & your body. 3DME is a professional equipment that is sold through ASI only...
- Page 40 www.asiaudio.com...
