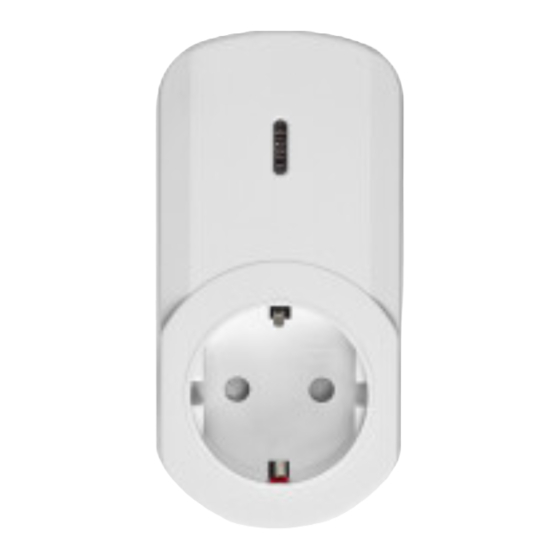

Cotech EMP416S Quick Start Manual

Surge Suppressor
Art.no. 36-1258
Please read the entire instruction manual before using the product and save it for future reference. We reserve
the right for any errors in text or images and any necessary changes made to technical data. If you have any
questions regarding technical problems please contact our Customer Services.
Safety
• The surge suppressor should only be connected to
an earthed indoor wall socket.
• Check that all connected devices are rated at
the same mains supply voltage (230 V 50 Hz).
• Make sure that the electrical socket that the product
is plugged into is easily accessible in case it
and the connected product need to be quickly
disconnected from the mains electricity.
• Do not connect products of this type to each other.
• Do not cover the product.
Note: The surge suppressor's switch should be in
the on position I and be lit for the outlets to carry current
and be operational.
Note: The green (PROTECT) indicator must be lit in
order for the surge suppressor feature to be operational.
If the green (PROTECT) indicator does not light, this
indicates that the surge suppressor feature is no longer
operational. The device will continue to function as
a standard extension lead but no surge protection will
be provided to any connected devices.
Product description
• The surge suppression feature is designed to protect
connected devices during e.g. thunder storms.
Note! The surge suppression feature will not protect
against near or direct lightning strikes.
• Safety shuttered.
• Equipped with two varistors, a gas discharge tube
and two fuses.
• Protection status indicator.
• On/off switch. Turns the outlets on and off.
• Wall bracket.
UNITED KINGDOM • CUSTOMER SERVICE tel 020 8247 9300 e-mail customerservice@clasohlson.co.uk
internet www.clasohlson.co.uk postal 10 – 13 Market Place, Kingston upon Thames, Surrey, KT1 1JZ
Model EMP416S
Operating instructions
1. Check that all devices to be connected to the surge
suppressor are first turned off.
2. Check that the surge suppressor's switch is also
turned off (O) before plugging the devices into
the sockets in the surge protector.
3. Plug the surge suppressor into a wall socket.
4. Switch the surge suppressor's power switch to
the on position I. The switch and green (PROTECT)
indicator should be lit.
5. Switch on the connected device/s.
Responsible disposal
This symbol indicates that this product
should not be disposed of with general
household waste. This applies throughout
the entire EU. In order to prevent any
harm to the environment or health
hazards caused by incorrect waste
disposal, the product must be handed
in for recycling so that the material
can be disposed of in a responsible
manner. When recycling your product,
take it to your local collection facility or
contact the place of purchase. They will
ensure that the product is disposed of in
an environmentally sound manner.
Specifications
Max load 230 V AC, 50 Hz, 16 A (3,680 W)
lll
Type
Uoc P-N = 2.5 kV
P/N-E = 5.0 kV
Max overvoltage 6,000 V
Max current spike Outlet L-N: 4,500 A pulse for 8/20 μs
Outlet L-E : 4,500 A pulse for 8/20 μs
Outlet N-E: 4,500 A pulse for 8/20 μs
Max energy
uptake 165 joules pulse form for
10/1,000 μs (outlet)
Reaction time < 1 ns
Lead HO5VV-F 3G 1.5 mm²
