Summary of Contents for Herdio HWA16BT
- Page 2 FCC Requirement ： Changes or modifications not expressly approved by the party responsible for compliance could void the user’s authority to operate the equipment. This device complies with Part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) this device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.
- Page 3 Controller Receives & Directs Bluetooth Wireless Audio Works with All of Your Favorite Devices: (Smartphones,MP3 Players, Tablets, Laptops, Computers, etc.) Bluetooth Network Name: 'Herdio ' (No Password Required) Wireless Range: 30' Feet (10 Meters) Power Output 100 Walt Peak, 40 Watt RMS x 2 Ch.@ 4 Ohm Bluetooth Version: 5.0...
- Page 4 3. Then, go to your Smart device's Bluetooth Network Settings and connect to the Wall Plate. The Network Name will appear as 'Herdio' on your device list. No password is required to connect but if you are prompted enter '0000' (4 zeroes).

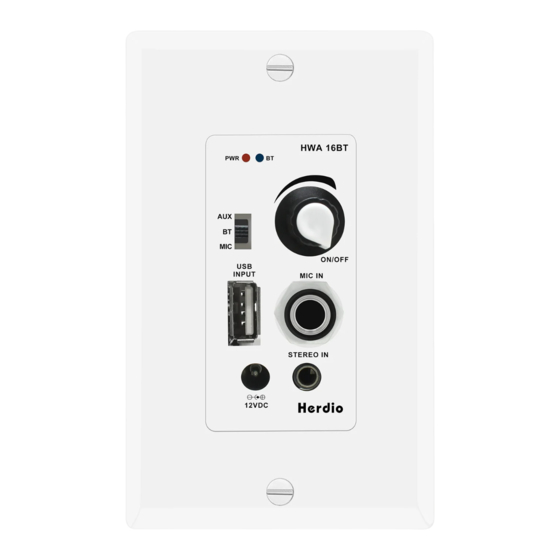

- Page 5 1. PWR: Power LED. Press and Hold the volume knob for more than 3 Seconds to POWER the Unit ON/OFF. 2.INPUT SELECTION: Audio Input between AUX/B T/MIC 3.USB PORT: USB Card Reader&USB Charge(5V 1A) 4.DC 12V IN: 12V DC Power Supply 5.BT: Bluetooth Signal LED 6.VOL UME/ON/OFF: Master Volume Control with Power ON/OFF 7.MIC IN: 1/4 Microphone Input Connector Jack...
- Page 6 Under normal circumstances, power is connected to the front panel power input via the included AC adapter.Power may be supplised from an alternatve 12V DC power source via the rear pigtail RED+ /BL .ACKS leads (for hard-wired installatons ). When an AC adapter powers the unit, via the front panel power input, the RED+ lead is disconnected.
