Summary of Contents for KUMA Connect Lite
- Page 1 Connect Lite, Play and Pro Quick Start Guide Please note: the 4 x supplied antennas are labelled LTE and WiFi and MUST be connected to the correct ports on the device, also labelled. LTE antennas X2 WIFI antennas X2 Ver 5.12.2021.04v1...
-
Page 2: Sim Connection
PLEASE UNSURE YOU SCREW THE WIFI ANTENNAS ONTO THE WIFI PLUGS AND THE LTE (4G) ANTENNAS ON TO THE LTE PLUGS. THERE ARE LABELS ON THE ANTENNAS – DO NOT MIX THEM UP SIM connection Insert a standard (large) size SIM card ONLY According to the interface identification on the device, insert the SIM card, and pay attention to the metal contacts and the cut out angle direction of the card. - Page 3 Connect the power adapter Wireless connection Power supply socket Wireless name and WiFi password Available on the device label Connect to LAN network port Wired connection If you don't want a cable connection, you don't need to connect LAN cable To connect to the device's WiFi signal Search for WiFi, find and connect to the WiFi wireless signal sent by the device by default [each product has a unique WiFi name (SSID)
- Page 4 Set up using wired connection If you used Wi-Fi to configure the Kuma Connect, you can connect to the Wi-Fi signal directly. You do not need to set up the wired connection. This step can be skipped. Confirm that your computer is [automatically obtain IP address] Please connect your computer network cable to the LAN interface of this product or connect to the default WiFi of this product.
-
Page 5: Configuration Parameters
Configuration parameters Change Kuma Connect Wi-Fi network name and password 1. Connect to the Kuma Connect, enter 192.168.188.1 in the browser address bar to enter the management area. 2. Enter the default account admin, the default password admin (no spaces, all lower case). After logging in successfully, enter the management interface and set the relevant parameters you want to set. -
Page 6: Frequently Asked Questions (Faqs)
Frequently Asked Questions - FAQs FAQ1: What should I do if I forget my username and password? (how to reset the device?) If you forget your username and password, or you cannot configure due to an error, you can press and hold the reset button on the device for 10 seconds whilst the device is powered on, and then release it to restore the device to its factory status. - Page 7 sure that the proxy server is not checked. 2. If you want to use the computer settings, please check the wireless network configuration or local network configuration of the computer to ensure that the computer "automatically obtains the IP address" and the DNS server address. 3.

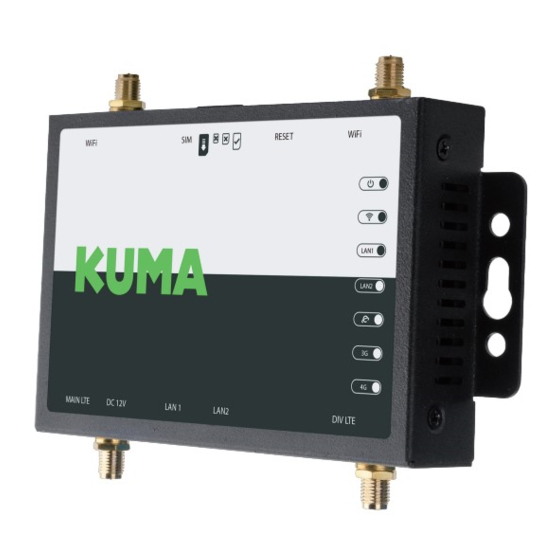

- Page 8 For LTE antenna installation, do not confuse with WiFi. Please tighten when installing. A network interface used to connect switches or computers. Sim standard large card interface for inserting SIM card. Reset the factory setting button, press and hold for 10 seconds during the live operation of the device, and then release.
- Page 9 No internet connection? Adding an APN If your Kuma Connect is connected to the network (the 3G or 4G light is lit), but the Internet status light is not on then you may need to enter the SIM provider APN settings manually. Most UK providers settings are pre-installed, but you can use any SIM if you wish to add your own settings here.
- Page 10 Antenna Connections and labels The 4 x supplied antennas are labelled and MUST be connected to the correct ports on the device, also labelled. LTE antennas X2 WIFI antennas X2 If you have a Kuma Connect Play or Pro, simply replace the supplied LTE (4G) antennas with the upgraded antennas on your chosen model.
-
Page 11: Specifications
Specifications Network 2* LAN 2FF SIM Interface Button Reset DC Adapter Input voltage: 12V, 1A Routing & wi�i chipset model MT7628N Routing & wi�i processor info IEEE 802.11 a/b/g/n Base DDR/SPI 64MBytes/16MBytes Main antenna Internal antenna Receive diversity antenna Internal antenna WiFi band 2400MHz-2483.5MHz MIMO for WiFi... - Page 12 www.kuma.co.uk www.kuma.co.uk...
