Mach Power WL-AC5250-047 Manual

Network controller per wireless ap
Hide thumbs
Table of Contents

Advertisement

Quick Links

Download this manual
NETWORK CONTROLLER PER WIRELESS AP
WL-AC5250-047

Advertisement

Table of Contents
loading
Need help?

Need help?

Do you have a question about the WL-AC5250-047 and is the answer not in the manual?

Questions and answers

Summary of Contents for Mach Power WL-AC5250-047

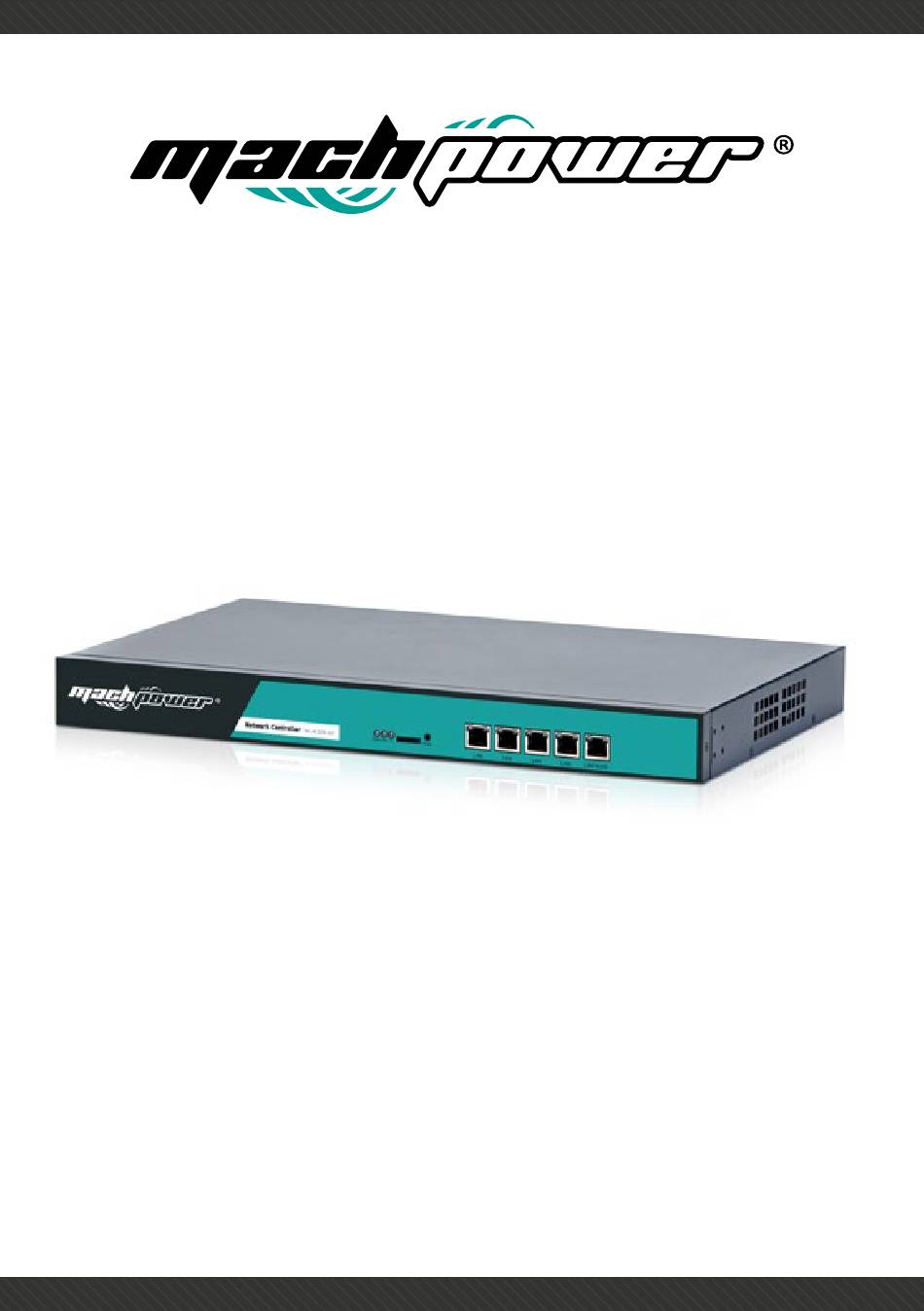

  • Page 1 NETWORK CONTROLLER PER WIRELESS AP WL-AC5250-047...
  • Page 3 Thanks for choosed our product ___________________________________________________________________ INDEX Chapter 1 Manual Introduction Chapter 2 Products Introduction 2.1 Products description 2.2 Products properties 2.2.1 Hardware property 2.2.2 Software property 2.3 Product layout 2.3.1 Front Panel 2.3.2 Rear Panel 2.3.3 Connection Chapter 3 Configuration Guide 3.1 Login Web Interface Chapter 4...

  • Page 4: Chapter1 Manual Introduction

    Products description WL-AC5250-047 is a highly performance WLAN controller, specially for Indoor and outdoor wireless access points which set up in hotel or small-medium sized enterprise; It’s capable for managing all Access point, support AP auto-detection, AP status preview, AP configura- tion,MAC filtering, AP software upgrade simultaneously to provide high quality&performance&...

  • Page 5: Chapter3 Configuration Guide

    LED becomes quick-flash from slow-flash. Then release the button and wait WL-AC5250-047 to reboot to its factory default settings. After that, the default IP address of WL- AC5250-047 is still 192.168.10.1,default user name and password are both admin RJ45 Ports: 5x10/100M/1000Mbps auto-negotiation RJ45 Ethernet Port;...

  • Page 6: Chapter4 Function Setting

    Device List Device list show the current wireless AP access into WL-AC5250-047, display the total quantity/Online/Offline Wireless AP connected to WL-AC5250-047, Then Wireless AP’s name, IP address, MAC address, QTY of end users, Firmware version, Channel as showed in following picture: Let’s introduce following button one by one:...
  • Page 7   SN: Show how many AP access into this AC controller Location: show where the AP setup Name: what’s the name of this AP. Device IP: AP’s IP address, click this IP address, can access into AP’s GUI when you set an static IP address for your PC in same IP segament.
  • Page 8 Wireless Basic: Mainly to setup the AP’s SSID, VLAN, Security. For the VLAN, the top networking should be with VLAN switch, and input the switch’s VLAN ID in the blank part. The VLAN ID range is 0~4094.v Wireless Advanced: user can configure the AP’s mode, channel, Fregament Threshold, coverage threshold, Max Station. Remark: For Fragment Threshold, RTS Threshold, Beacon Interval, Aggregation, ShortGI, Rev Option, we recommand to keed in default.
  • Page 9 ALL AP: Mean now show all the online AP, offline AP. Can select online AP or offline AP. Refresh Interval: mean how long this AC controller will refresh the AP QTY. Search by IP: mean search the wireless AP by IP address, make hook in the white box, input IP address, then search. Search by MAC: mean search the wireless AP by MAC address, make hook in the white box, input MAC address, then search Batch Set: mean can configure the wireless AP’s data in batch.
  • Page 10 Device Log Device Log show AP’s record, such as on line recording, offline recording, device configuration recording. Address Server Through Address Server, to set server IP address, subnet mask; Server address Pool, main to assign IP address to the connected wireless AP, no need to specify the IP address for wireless AP manually when operation.
  • Page 11 Click Gateway will automatically jump to the WAN settings as 4-4-1 When select to intelligent gateway, WL-AC5250-047 will have a router function, can work as a main router with Gigabit WAN/LAN port. It support Dynamic IP, Static IP; PPPOE; PPTP.
  • Page 12 How to make WL-AC5250-047 work with your authentication server: Gateway ID: Mean Gateway’s MAC address. In this part, our WL-AC5250-047 should work in Intelligent Gateway, mean this ID is the MAC of WL-AC5250-047. Web server name: this name is from server supplier, can fill or not fill. Take our cloud Platform for example: input wifidog in this part.
  • Page 13 Gateway 4.6.1 IP/Port Filtering IP/Port Filtering: IP/Port forwarding enable, router will limited the data forwarding according to the filtering rule. If the filtering rule is [refuse] , then the router will refuse to forward the data in accordance with filtering rule.; If the filtering rule is [allow], the router will forward the data in accordance with filtering rule.
  • Page 14 4.6.3 URL Filtering URL Filtering: Enabling URL filtering, router will restrict access to the pointed URL; URL address: Set up the declined URL address 4.6.4 Port Forwarding Port forwarding: Port forwarding is to forward data from one port to another port, enabling external users have access to an internal private IP in LAN, from an external triggered NAT router ;...
  • Page 15 there are USB Disk, SAMBA Settings, DLNA settings for choose USB Disk: When insert the USB disk to router’s USB port, then will appear following page show the files directory path and parti- tions name.User can add/delete the files. Directory path: Display the current equipment in the directory Partitions Name: Display the current equipment in the partition Add: Add a directory to the equipment Delete: Deletes a directory in equipment...
  • Page 16 4.8.2 Status: Enable or Disable QoS function Upload: Set up total uploading bandwidth Download: Set up total downloading bandwidth IP Address Range: Set up IP range of bandwidth MAC address: Set up bandwidth control by mac address, user can choose it from Scan MAC, or setup by manual. Mode: QoS mode settings, shared mode means under the QoS rules, the main PC within all IP range can share the specified bandwi- dth;...
  • Page 17 Custom NTP Server: Setting user-defined synchronization server IP address Time Zone: Setting the router’s time zone Device Status 4.9.1 Basic Status Show WL-AC5250-047’s firmware version, hardware version, system uptime. 4.9.2 LAN Status LAN Setting: Show WL-AC5250-047’s LAN IP, DHCP server status and MAC address...

  • Page 18: Appendix A Product Spec

    4.9.3 WAN Status WAN Setting: It show WL-AC5250-047’s WAN status, Connect Type, WAN IP, Subnet Mask, Gateway IP, DNS and MAC info. 4.10 WAN Status If you meet with problem in understanding on above info, click help, then will pop up one window for better understanding.
  • Page 19 Working Humanity 10% ~ 90% RH (non condensation) Storage Humanity 5% ~ 90% RH (non condensation) Power 100-240V ~ 50/60Hz...
  • Page 20 Mach Power ® è un marchio registrato All Right Reserved > visita il nostro sito www.machpower.it...
