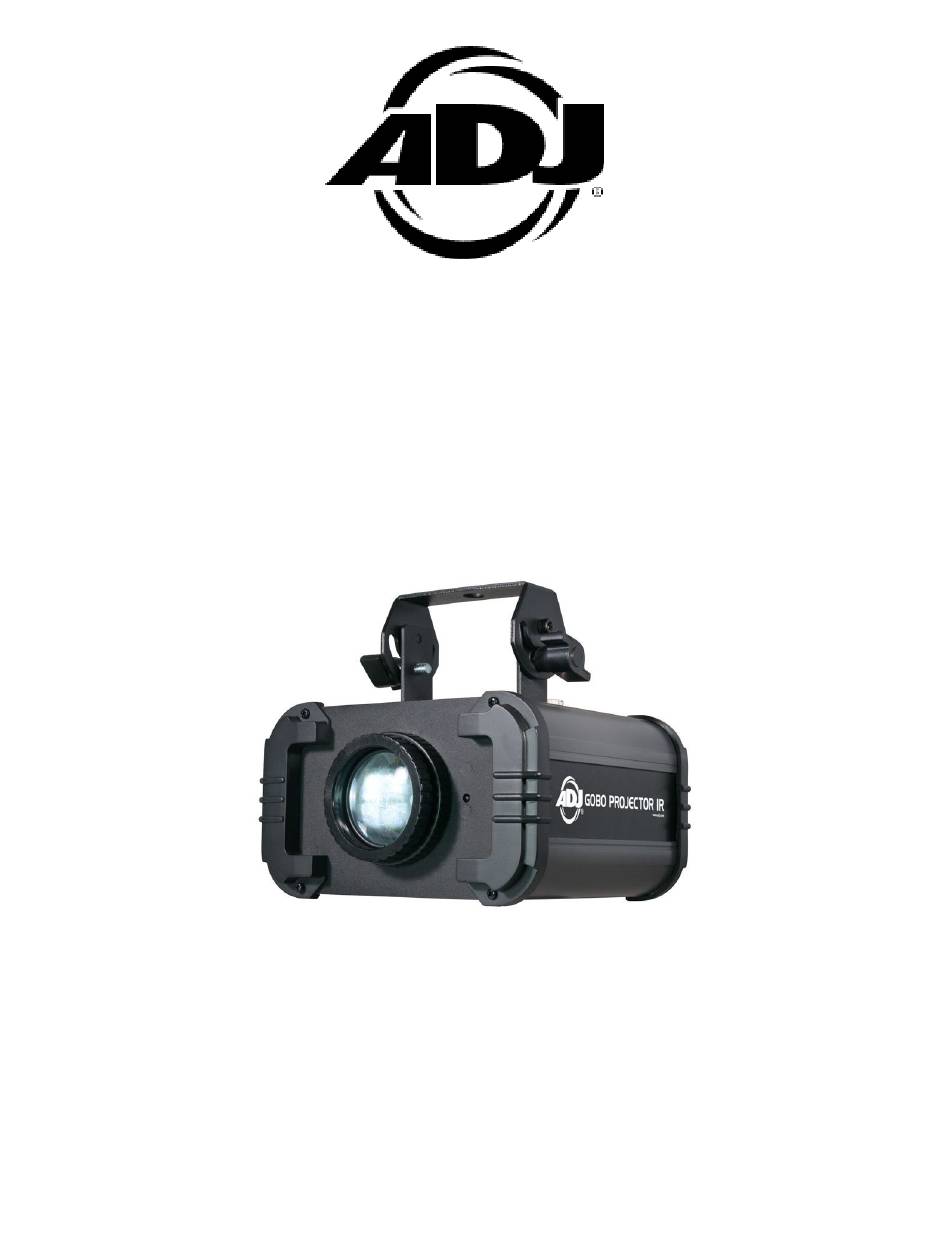

- Page 1 GOBO PROJECTOR IR User Manual Revised 04/26/2022...
- Page 2 ©2022 ADJ Products, LLC all rights reserved. Information, specifications, diagrams, images, and instructions herein are subject to change without notice. ADJ Products, LLC logo and identifying prod- uct names and numbers herein are trademarks of ADJ Products, LLC. Copyright protection claimed includes all forms and matters of copyrightable materials and information now allowed by statutory or judicial law or hereinafter granted.
- Page 3 Please keep this manual with the unit for future reference. Unpacking: Thank you for purchasing the Gobo Projector IR by ADJ Products, LLC®. Every device has been thoroughly tested and has been shipped in perfect operating condition. Carefully check the shipping carton for damage that may have occurred during shipping.
-
Page 4: Limited Warranty (Usa Only)
The sole responsibility of ADJ Products, LLC under this warranty shall be limited to the repair of the product, or replacement thereof, including parts, at the sole discretion of ADJ Products, LLC. All products covered by this warranty were manufactured after August 15, 2012, and bear identifying marks to that effect. -
Page 5: Warranty Registration
WARRANTY REGISTRATION The Gobo Projector IR carries a 2 year limited warranty. Please fill out the enclosed warranty card to validate your purchase. All returned service items, whether under warranty or not, must be freight pre- paid and accompanied by a return authorization (R.A.) number. The R.A. number must be clearly writ- ten on the outside of the return package. - Page 6 PRECAUTIONS Safety Issue: This unit may blow the fuse if the maximum allotted load of 1 amp is reached. Please refer to the Fuse Replacement section of this manual for detailed instructions. • Ensure that the voltage of the power source matches the required voltage of the unit. •...
-
Page 7: Operation
OPERATION Introduction: The ADJ Gobo Projector IR is a rotating gobo projector. This fixture is designed for mobile DJ’s, clubs, bands, roller rinks and any arena that requires a compact, light weight, easy to use unit. This fixture also features a light weight case design and an adjustable hanging bracket. - Page 8 ADJ UC IR CONTROL The UC IR (sold separately) infrared remote gives you control of various functions. To control the fix- ture, you must aim the remote at the front of the fixture and be within the maximum range of 30 feet.
-
Page 9: Gobo Replacement
ADDING A COLOR GEL The Gobo Projector IR includes with 4 colored gels, which can be installed at any time in order to add background color to your gobo. Follow the steps below to install a color gel: 1. -
Page 10: Fuse Replacement
FUSE REPLACEMENT Locate and remove the unit’s power cord, then find the fuse holder inside the power socket. Insert a flat-head screw driver into the power socket and gently pry out the fuse holder. Remove the bad fuse and replace with a new fuse of the same rating. Please note that the fuse holder has a built-in socket for a spare fuse, so be sure not to confuse the spare fuse with the active fuse. -
Page 11: Specifications
Please Note: Specifications and improvements in the design of this unit and this manual are subject to change without any prior written notice. ADJ Products, LLC 6122 S. Eastern Ave. Los Angeles, CA 90040 USA Tel: 323-582-2650 / Fax: 323-725-6100 Web: www.adj.com / E-mail: info@adj.com A.D.J. Supply Europe B.V. Junostraat 2 6468 EW Kerkrade Netherlands service@adjgroup.eu / www.adj.eu...
