Installation Kit

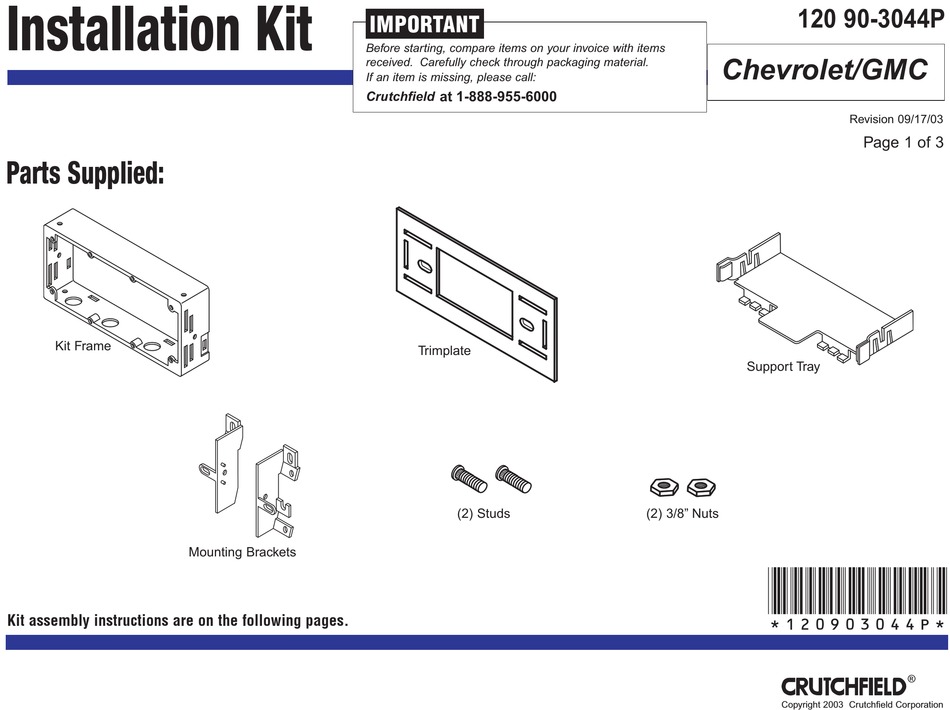

Parts Supplied:

Kit Frame
Kit assembly instructions are on the following pages.
Before starting, compare items on your invoice with items
received. Carefully check through packaging material.
If an item is missing, please call:
Crutchfield
Mounting Brackets
IMPORTANT
at 1-888-955-6000
Trimplate
(2) Studs
120 90-3044P
Chevrolet/GMC
Support Tray
(2) 3/8" Nuts
*120903044P*
Copyright 2003 Crutchfield Corporation
Revision 09/17/03
Page 1 of 3
®
