Summary of Contents for Exact solutions FRAME-PF-UNI-PORAD

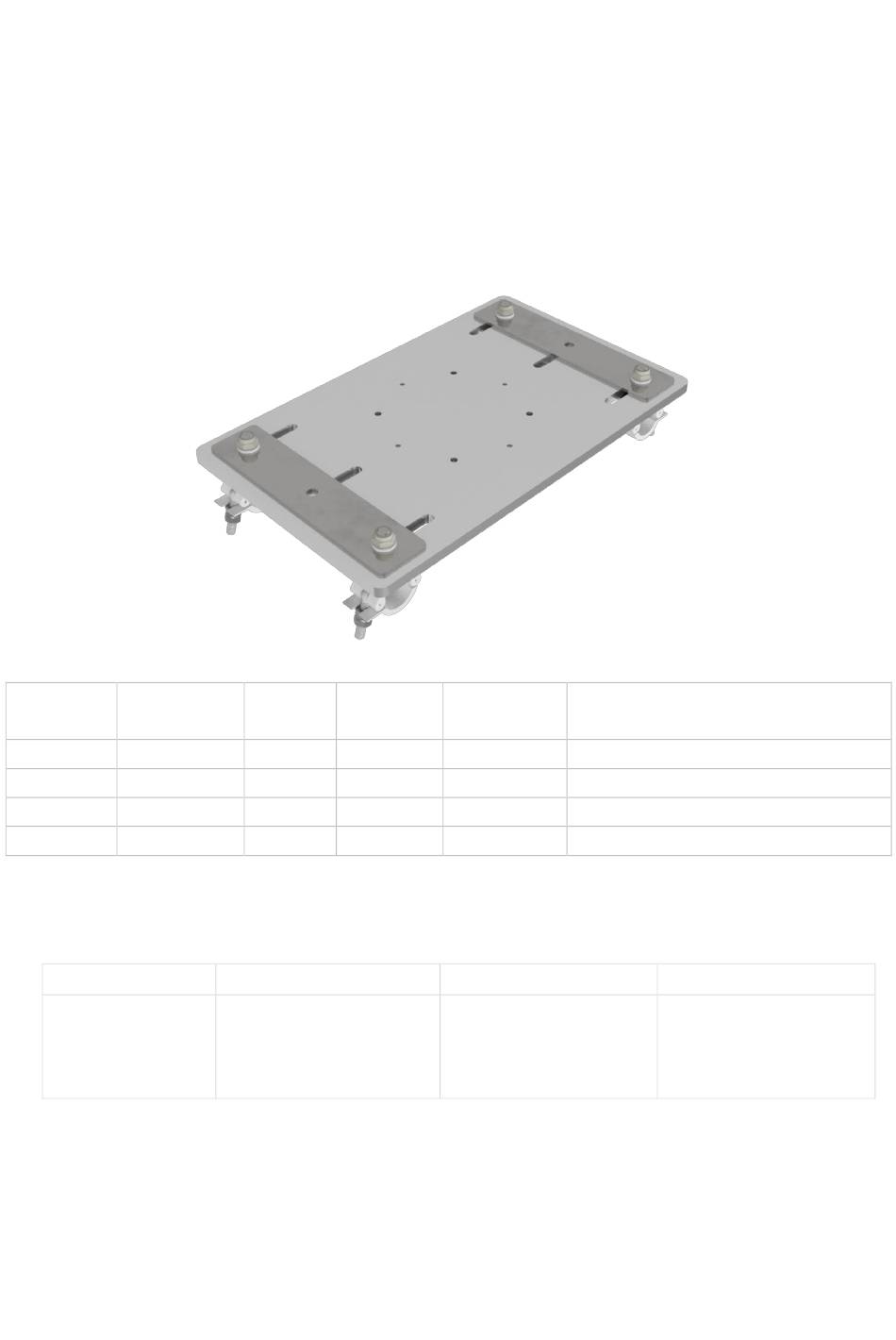

  • Page 1 FRAME-PF-UNI-PORAD Portrait Adapter Manual Version 1.3 Date Revision Author Check Final Check Description 04.10.2016 DWN / TSN First Draft 22.02.2019 50 mm Clamps removed 02.01.2020 Layout change 03.04.2020 EVO Link added Frames compatible with the Portrait Adapter: Current Frames EOL Frames...

  • Page 2: Table Of Contents

    Version 1.2 Table of content 1. Preamble ....................... 2 1.1 FRAME-PF-UNI-PORAD designations..................2 1.2 Compatible frames for FRAME-PF-UNI-PORAD series ..............3 1.3 Tools required ...........................4 2. Safety instructions ..................4 3. What’s in the box? ..................9 4. Optional accessories ..................10 5.

  • Page 3: Preamble

    Manual FRAME-PF-UNI-PORAD Version 1.2 1. Preamble Congratulations on your purchase of the FRAME-PF-UNI-PORAD Portrait Adapter from EXACT solutions GmbH. Model number: FRAME-PF-UNI-PORAD Please read very carefully the instructions provided in this manual. In the following pages you will find all the information needed for a safe and correct installation.

  • Page 4: Compatible Frames For Frame-Pf-Uni-Porad Series

    Manual FRAME-PF-UNI-PORAD Version 1.2 Compatible frames for FRAME-PF-UNI-PORAD European market Non-European market Manufacturer m.no.: FRAME-EVO-P10 Manufacturer m.no.: FRAME-EVO-P10-US Panasonic EU m.no.: ET-RFD40 Panasonic USA m.no.: ET-PFD365 Manufacturer m.no.: FRAME-EVO-P14 Manufacturer m.no.: FRAME-EVO-P14-US Panasonic EU m.no.: ET-RFD50 Panasonic USA m.no.: ET-PFD465 Manufacturer m.no.: FRAME-EVO-P20...

  • Page 5: Tools Required

    Manual FRAME-PF-UNI-PORAD Version 1.2 Tools required 1 x Nr. 10 Screw-wrench 1 x Nr. 5 Allen key 1 x Nr. 13 Screw-wrench 1 x Nr. 6 Allen key 1 x Nr. 17 Screw-wrench 1 x Universal torque wrench 2. Safety instructions...
  • Page 6 LINK-200 for detailed information  For suspended installations, use only designated hanging accessories, like EVO-LINK-200 series. Note that the maximum weight load limit for FRAME-PF-UNI-PORAD is 60 Kg if using M6 screws and 150Kg if using M8 screws 03.04.2020 Page 5 of 19...
  • Page 7 Manual FRAME-PF-UNI-PORAD Version 1.2  When installing the Portrait Adapter with the EVO-LINK-200 series make sure to not exceed the maximum weight load limits of EVO-LINK-200 series of 200 kg (440.924 lbs). Do not install the Portrait Adapter while people are present under the installation zone.
  • Page 8  Protection objective: avoid injury from hitting the head.  Wear a helmet Note that the maximum weight load limit for FRAME-PF-UNI-PORAD is 60 Kg if using M6 screws and 150Kg if using M8 screws 03.04.2020 Page 7 of 19...
  • Page 9 Manual FRAME-PF-UNI-PORAD Version 1.2 Incorrect installation may lead to certain parts of the Portrait Adapter or the entire Portrait Adapter to fall down.  Protection objective: prevent personal injury and property damage.  Double check the Portrait Adapter and its installation.

  • Page 10: What's In The Box

    Manual FRAME-PF-UNI-PORAD Version 1.2 3. What’s in the box? FRAME-PF-UNI-PORAD Portrait Adapter Used for hanging projector frames in portrait mode. Number of units: 1 Weight: 4,5 kg / 9.92 lbs Including: 4 x 30mm rigging clamps  4 x 10mm RippLock™ Zinc-Plated washers ...

  • Page 11: Optional Accessories

    Manual FRAME-PF-UNI-PORAD Version 1.2 4. Optional accessories EVO-LINK-200 Optional accessory for ceiling mount installations. It has M8 and M6 mounting screws. More information can be found in the “EVO- LINK-200 series” manual. EVO-LINK-201 Optional accessory for ceiling mount installations. It has M8 and M6 mounting screws and additional fine adjustment.

  • Page 12: Fitting The Evo-Link-200 Series With The Portrait Adapter

    Manual FRAME-PF-UNI-PORAD Version 1.2 The optional accessories must be purchased separately. They are not included in the standard package! 5. Assembling the portrait adapter with EVO-LINK-200 Torque: M8: 25±0.5 Nm M6: 10±0.5 Nm Step1: EVO-LINK-200 series mounts have four M6 and four M8 screws to fix it to the portrait adapter.

  • Page 13: Adjusting The Rigging Clamp Position

    Manual FRAME-PF-UNI-PORAD Version 1.2 Step 2: One can choose between those two sets of screws. Use the 5 mm hex key to tighten the four M6 screws with a torque of 10±0.5 Nm and the 6 mm hex key to tighten the four M8 screws with a torque of 25±0.5 Nm. All four M6 screws or all four M8 screws have to be used.

  • Page 14: Attaching The Portrait Adapter To The Frame-Evo-P10 / P20 / E20 Frames

    Manual FRAME-PF-UNI-PORAD Version 1.2 Step 2: Move the rigging clamps together with the four stainless steel plates until the desired position is reached and then tighten back the four M10 DIN 980 safety nuts with a torque of 50 Nm. Please move the rigging clamps and the...
  • Page 15 Manual FRAME-PF-UNI-PORAD Version 1.2 Step 2: Attach the Portrait Adapter to the frame and tighten back the eight M8 nuts using the Nr.13 screw wrench. Please make sure that the nuts are properly tightened, otherwise accidents can occur! 03.04.2020 Page 14 of 19...

  • Page 16: Attaching The Portrait Adapter To The Frame-Evo-P14 / E10

    Manual FRAME-PF-UNI-PORAD Version 1.2 8. Attaching the portrait adapter to FRAME-EVO-P14/ E10 Torque: 50 Nm Middle position Outer position For attaching the Portrait Adapter to the FRMAE-EVO-E10 or P14, two rigging clamps must be repositioned from the outer position to the middle position and one rigging clamp can be removed.
  • Page 17 Manual FRAME-PF-UNI-PORAD Version 1.2 Step 3: Move the rigging clamps together with the four stainless steel plates until the desired position is reached and then tighten back the two M10 DIN 980 safety nuts with a torque of 50 Nm.

  • Page 18: System Maintenance And Inspection (Re-Examination)

    Manual FRAME-PF-UNI-PORAD Version 1.2 9. System maintenance and inspection (re-examination) The Portrait Adapter does not require special maintenance but a visual inspection must be done prior to every installation in which the Adapter is involved:  Please make a visual inspection to be sure that all the screws are in the right place and none are missing;...

  • Page 19: Declaration Of Conformity

    Manual FRAME-PF-UNI-PORAD Version 1.2 Declaration of Conformity 03.04.2020 Page 18 of 19...

  • Page 20: Imprint

    Manual FRAME-PF-UNI-PORAD Version 1.2 Imprint EXACT solutions GmbH Lustheide 85 51427 Bergisch Gladbach GERMANY Tel.: +49 2204 9485 30 E-Mail: info@exactsolutions.de Web: www.exactsolutions.de 03.04.2020 Page 19 of 19...
