5046196PCOM

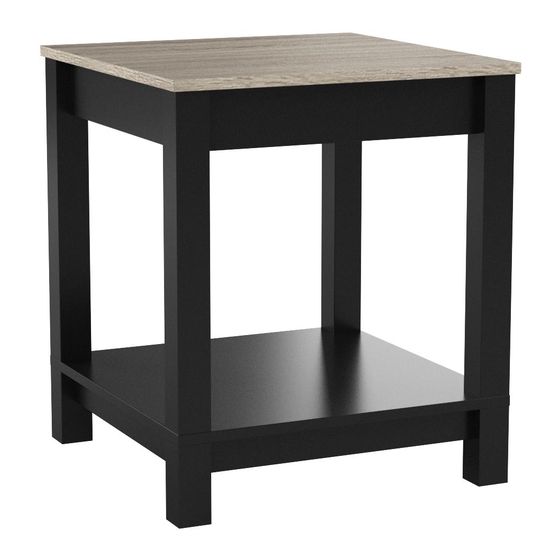

Carver End Table
Date of Purchase: ____/____/_____
Lot Number:
THIS INSTRUCTION BOOKLET CONTAINS IMPORTANT SAFETY INFORMATION. PLEASE READ AND KEEP FOR FUTURE REFERENCE.
Do Not Return This Product!
Contact our customer service team for help first
Call: 1-800-489-3351 (toll free)
Monday-Friday 9am - 5pm CST
Visit: www.ameriwoodhome.com
WARNING
–Unit can tip over causing severe injury or death.
–Anchor unit to stud in wall (if instructed to)
–Do not allow children climb on unit
–Put heavy items on lower shelves or drawers
B345046196PCOM00YX
Easy
Assembly Difficulty Meter
Follow Ameriwood Home
Tough
Advertisement
Table of Contents
Related Manuals for Ameriwood HOME 5046196PCOM
Summary of Contents for Ameriwood HOME 5046196PCOM
- Page 1 Easy Tough Assembly Difficulty Meter WARNING Follow Ameriwood Home –Unit can tip over causing severe injury or death. –Anchor unit to stud in wall (if instructed to) –Do not allow children climb on unit –Put heavy items on lower shelves or drawers...
-
Page 2: Helpful Hints
Contact Us! Do NOT return this product! Contact our friendly customer service team first for help Call us! Assembly Tips 1-800-489-3351 Monday-Friday 9am - 5pm CST Visit ameriwoodhome.com Helpful Hints PEOPLE NEEDED FOR ASSEMBLY: 1-2 ESTIMATED ASSEMBLY TIME: 1 HOUR - Open your item in the area you plan to keep it for less heavy lifting - Identify, sort and count the parts before attempting assembly - Compression dowels are tapped in with a hammer... -
Page 3: Before You Start
Before You Start Read through each step carefully and follow the proper order Separate and count all your parts and hardware Give yourself enough room for the assembly process Have the following tools: Flat Head Screwdriver, #2 Phillips Head Screwdriver and Hammer Caution: If using a power drill or power screwdriver for screwing, please be aware to slow down and stop when screw is tight. -
Page 4: Board Identification
Board Identification Not actual size T5046196010YX T5046196020YX T5046196030YX TOP PANEL BOTTOM PANEL T5046196040YX T5046196050YX T5046196060YX UPPER SUPPORT PANEL LOWER SUPPORT PANEL FOOT ameriwoodhome.com... -
Page 5: Part List
Hardware Bag Reference Number: 25046196PCOM0YX Part List Actual Size TYX0001 TYX0002 TYX0030 TYX0029 Cam Bolt Cam Lock DOWEL 6 X 30 BOLT M6 X 70 15-12 ameriwoodhome.com... - Page 6 Step 1 TYX0001 TYX0030 * raw edges are shaded ameriwoodhome.com...
- Page 7 Step 2 Quick Assembly TYX0002 Proper orientation of CAM LOCK * raw edges are shaded ameriwoodhome.com...
- Page 8 Step 3 Quick Assembly TYX0002 TYX0029 Proper orientation of CAM LOCK * raw edges are shaded ameriwoodhome.com...
- Page 9 Maximum Loads This unit has been designed to support the maximum loads shown. Exceeding these load limits could cause sagging, instability, product collapse, and/or serious injury. Warning: Risk of serious injury to person - do not place a television on this furniture. This furnitur is not approved for use with a television.
- Page 10 Visit your local retailer's website, rate your purchased product and leave us some feedback! We would like to extend a big “Thank You” to all of our customers for taking the time to assemble this Ameriwood Home product, and to give us your valuable feedback ameriwoodhome.com...
