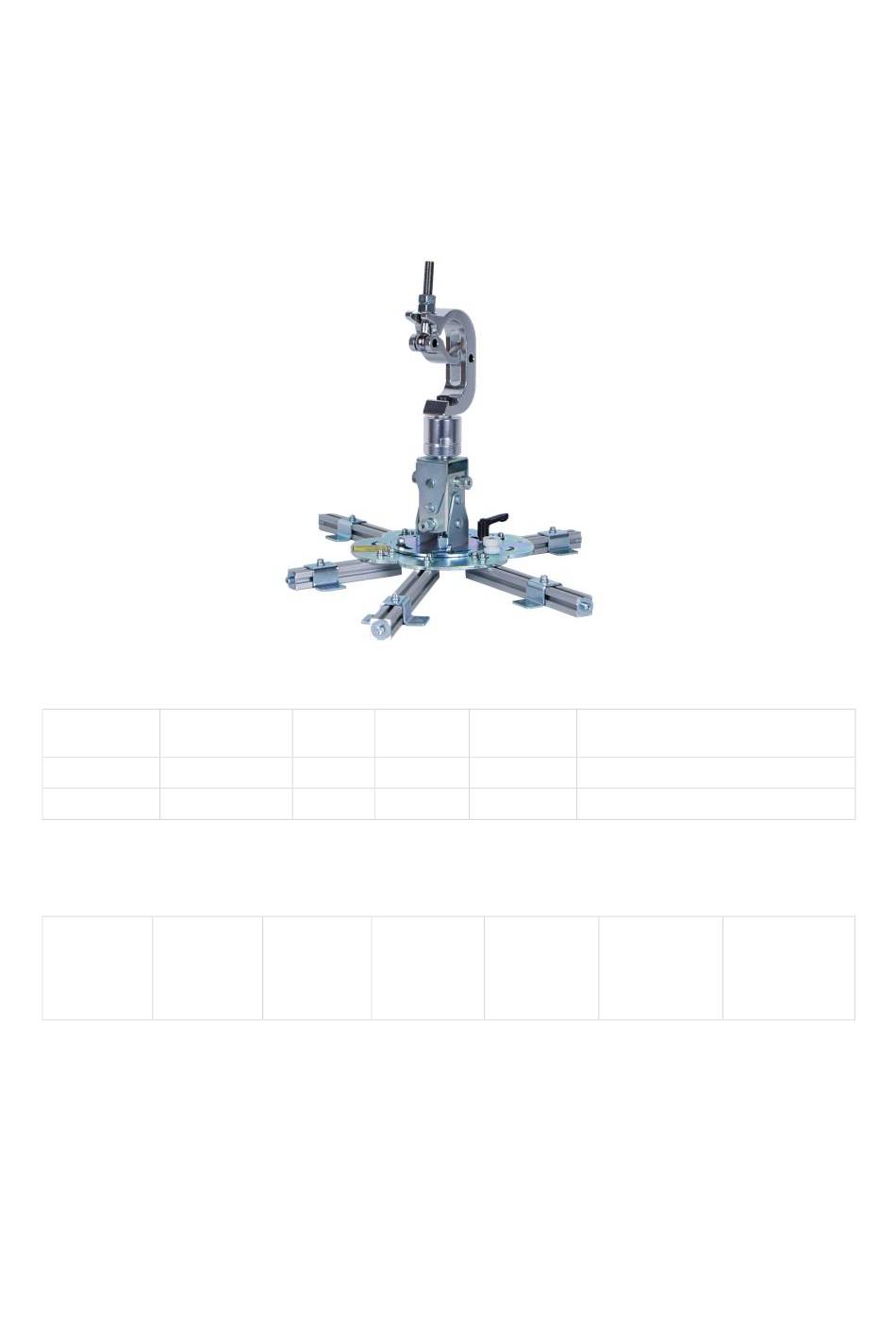

Universal truss mount for projectors TH-PROJ-UNI
Date
Revision No. Author Checked Approved
12.06.2019
02.02.2020
The following projectors can be attached to this ceiling mount:
PT-EZ590
PT-EW550
PT-EW650
PT-EX520
PT-EX620
The listed projectors are only examples. Nearly every projector with a maximum
weight of 25kg / 55,1 lbs can be attached to the PAULINE ceiling mount.
PAULINE
Manual Version 1.1
1.0
KWR
1.1
TSN
PT-RZ570
PT-DZ870
PT-MZ770
PT-DW830
PT-MZ670
PT-DX100
DWN
RPA
DWN
VIU
PT-DZ6710
PT-DZ6700
Description
Version 1.0
Layout change
PT-DW6300
EP-EB-L510U
PT-D6000
PT-D5000
Advertisement
Table of Contents
Related Manuals for Exact solutions PAULINE TH-PROJ-UNI
Summary of Contents for Exact solutions PAULINE TH-PROJ-UNI
- Page 1 PAULINE Universal truss mount for projectors TH-PROJ-UNI Manual Version 1.1 Date Revision No. Author Checked Approved Description 12.06.2019 Version 1.0 02.02.2020 Layout change The following projectors can be attached to this ceiling mount: PT-EZ590 PT-EW550 PT-RZ570 PT-DZ870 PT-DZ6710 PT-DW6300 EP-EB-L510U PT-EW650 PT-EX520 PT-MZ770...
-
Page 2: Table Of Contents
Manual Pauline TH-PROJ-UNI Version 1.2 Table of content 1. Preamble ....................... 2 1.1 Tools required ...........................3 2. Safety instructions ..................4 3. What’s in the box? ..................8 4. Adjustment options ..................11 5. Mounting the PAULINE ceiling mount to a truss ......... 12 6. -
Page 3: Preamble
Manual Pauline TH-PROJ-UNI Version 1.2 1. Preamble Congratulations on your purchase of the PAULINE universal ceiling mount for projectors from EXACT solutions. Please read very carefully the instructions provided in this manual. In the following pages you will find all the information needed for a safe and fast installation. -
Page 4: Tools Required
Manual Pauline TH-PROJ-UNI Version 1.2 1.1 Tools required The tools required are: 3 mm hex key to adjust the 5 arms of the PAULINE, a 4mm hex key to turn the adjustment screws (Figure 1) SW19 Wrench (Figure 2) to tighten and loosen the C-clamp on top... -
Page 5: Safety Instructions
Manual Pauline TH-PROJ-UNI Version 1.2 2. Safety instructions INTENDED USE The PAULINE ceiling mount is intended for use by fully qualified, trained and competent persons to provide a safe and secure installation and adjustment of projectors. Only use the ceiling mount with projector in a closed environment (conference rooms, theatres, convention halls, etc.) where there is no wind,... - Page 6 Manual Pauline TH-PROJ-UNI Version 1.2 If the quick-snap is not locked, the entire system can fall down and property damage or injuries may occur. Make sure not to exceed the maximum weight load limits of 25 Kg / 55,1 lbs.
- Page 7 Manual Pauline TH-PROJ-UNI Version 1.2 Prior to any installation, you must do a visual inspection to make sure that the system is in a good condition. For more information please refer to chapter “6. System maintenance and inspection (Re-examination)” RISK SITUATIONS Risk of injury due to the possibility of falling objects during the assembly or disassembly of the PAULINE ceiling mount.
- Page 8 Manual Pauline TH-PROJ-UNI Version 1.2 Insufficient load capacity of the supporting structure may lead to certain parts of the PAULINE ceiling mount or the entire PAULINE ceiling mount to fall down. Protection objective: Prevent personal injury and property damage.
-
Page 9: What's In The Box
Manual Pauline TH-PROJ-UNI Version 1.2 3. What’s in the box? PAULINE Used for projector installation Number of units: 1 Weight: 3,5 kg / 7,71 lbs 1) 5 x M4x16 DIN 912 g. steel 10.9 5 x M5x16 DIN 912 g. steel 10.9 5 x M6x16 DIN 912 g. - Page 10 Manual Pauline TH-PROJ-UNI Version 1.2 4. Attaching the Projektor to the ceiling mount. Step 1: Position the PAULINE ceiling mount in the middle over the projector. For the following process, it’s beneficial to loosen all three screws on each arm, so you can move the arms and the metal plates freely around.
- Page 11 Manual Pauline TH-PROJ-UNI Version 1.2 Step 2: Place the RippLOCK Safety Washers (2) over each corresponding hole. Secure the screws (1) into each hole. Ensure each screw runs through the plate and catches into the corresponding thread in the projector surface.
-
Page 12: Adjustment Options
Manual Pauline TH-PROJ-UNI Version 1.2 4. Adjustment options Roll By turning the upper adjustment screws to the left and right you can adjust the position of the projector with an angle of ± 22 degrees. Pitch By turning the lower adjustment... - Page 13 Manual Pauline TH-PROJ-UNI Version 1.2 Before installation: By unlocking the quick release (shown in the picture to the left) the C-clamp can be turned around the Z-Axis by 360 degrees. Attention: Do not use this adjustment option, while the ceiling mount is already hanging on a truss.
-
Page 14: Mounting The Pauline Ceiling Mount To A Truss
Manual Pauline TH-PROJ-UNI Version 1.2 5. Mounting the PAULINE ceiling mount to a truss To hang the ceiling mount on a truss one must use the attached C-clamp. Always use both M12 nuts to make sure the clamp cannot loosen itself. -
Page 15: System Maintenance And Inspection (Re-Examination)
Manual Pauline TH-PROJ-UNI Version 1.2 6. System maintenance and inspection (Re-examination) The PAULINE does not require special maintenance but a visual inspection must be done prior to every installation in which the system is involved: Please make a visual inspection to be sure that all the screws on each arm are in the right place and none are missing. -
Page 16: Dimensions
Manual Pauline TH-PROJ-UNI Version 1.2 7. Dimensions Figure 4: PAULINE ceiling mount drawings, weight: 3,5 kg / 7,71 lbs 02.01.2020 Page 15 of 16... -
Page 17: Imprint
Manual Pauline TH-PROJ-UNI Version 1.2 Imprint EXACT solutions GmbH Lustheide 85 51427 Bergisch Gladbach GERMANY Tel.: +49 2204 9485 30 E-Mail: info@exactsolutions.de Web: www.exactsolutions.de 02.01.2020 Page 16 of 16...
