Summary of Contents for Motorhead MH-02-LM-B1-196-1

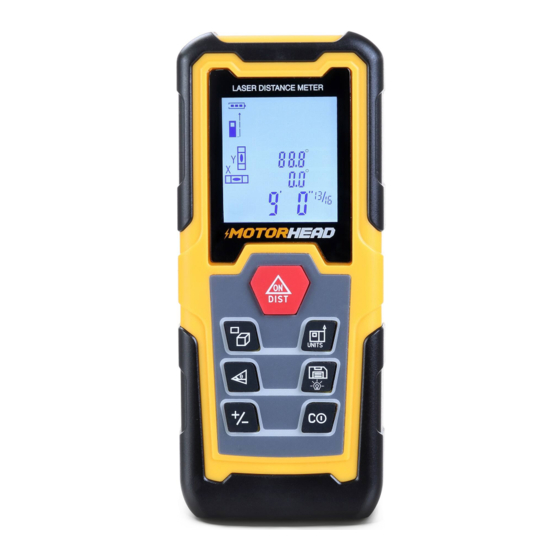

- Page 1 196Ft/60M Laser Distance Measure w/ Digital Level & 50-Set Data Storage (MH-02-LM-B1-196-1) DIST UNITS Customer Service Phone # 1-866-608-5212 E-Mail: support@motorheadtool.com Register your tool on MOTORHEADTOOL.COM for a Free Extended Warranty!
-
Page 2: Table Of Contents
Laser Distance Measure (MH-02-LM-B1-196-1) CONTENTS Safety Instructions .......................3 Instrument Care and Maintenance .................5 Faults, Causes & Troubleshooting ................7 Error Messages .......................7 Technical Specification ....................8 Display screen overview....................9 Illustrations of Display Screen Icons...............9 Touch Buttons & Their Functions................11 Instrument Functions, Applications and Operations........13... -
Page 3: Safety Instructions
Laser Distance Measure (MH-02-LM-B1-196-1) Safety Precautions ! Be sure you’ve read and understood all provisions and operating instructions contained herein before use of the instrument. Failure to follow these safety rules and operating instructions may result in laser radiation, electric shock or personal injury, which are all dangerous. - Page 4 Laser Distance Measure (MH-02-LM-B1-196-1) Don’t remove or damage any warning label fixed on the instrument. 2. Keep the instrument out of the reach of children. Don’t point the laser beam emitted from the instrument at any person. 3. Don’t operate the instrument when there are children nearby or leave it within reach of children without parental supervision.
-
Page 5: Instrument Care And Maintenance
Laser Distance Measure (MH-02-LM-B1-196-1) Refrain From: 1. Opening or repairing the device 2. Measuring in direct sunlight. 3. Measuring outside of specified range. 4. Immersing the equipment in water. 5. Cleaning the lens using alcohol or any other organic solvent. - Page 6 Laser Distance Measure (MH-02-LM-B1-196-1) 7. Replace the battery when the battery indicator icon on the screen indicates the power is empty. 8. Don’t disassemble the instrument on your own. Unauthorized disassembly may result in laser radiation injury. 9. Don’t try to change any optical parts installed on the instrument lens.
-
Page 7: Faults, Causes & Troubleshooting
Laser Distance Measure (MH-02-LM-B1-196-1) Faults, Causes & Troubleshooting Fault Causes Troubleshooting Reload the battery The battery is according to the cell incorrectly cradled. polarity inside the battery compartment. instrument can’t be started. Replace with a new Low battery battery Try to press the power... -
Page 8: Technical Specification
Laser Distance Measure (MH-02-LM-B1-196-1) Laser Distance Measure (MH-02-LM-B1-196-1) Technical Specification Recommended Operating Indoor, 0%~80%RH, altitude Environment 0~2000m Measuring Range 0.05-60m ±2mm, with a 0.05mm/m Measuring Accuracy increment Instrument Dimension 122*52*26mm White wall or a piece of A4 Recommended Target white paper... -
Page 9: Display Screen Overview
Laser Distance Measure (MH-02-LM-B1-196-1) Display Screen Overview (Figure 1) 1. Functional icon display 2. Battery power level display 3. Laser icon 4. Measurement benchmark display icon 5. Instrument X/Y bi-directional level testing icon 6. MAX/MIN icons in continuous measurement 7. Laser ranging signal strength icon 8. - Page 10 Laser Distance Measure (MH-02-LM-B1-196-1) • Cubic volume Rectangular area measurement; measurement; Right trapezoidal area Triangle area measurement; measurement; Rectangular area cumulative measurement; • X/Y bi-directional level testing; Pythagorean theorem; Dual Pythagorean theorem +; Dual Pythagorean theorem -; Measure the distance between any two points in the space (NOTE: Two points to be measured must be on the same vertical plane with the instrument’s measuring reference);...
-
Page 11: Touch Buttons & Their Functions
Laser Distance Measure (MH-02-LM-B1-196-1) Touch Buttons & Their Functions 1.POWER ON/MEASURE Button: Tap DIST this button quickly to start the instrument; tap this button quickly to UNITS start a single measurement; and keep tapping this button to start a continuous measurement. - Page 12 Laser Distance Measure (MH-02-LM-B1-196-1) 5.MEASUREMENT REFERENCE SETTING/UNIT SETTING Button: Tap this button quickly to set the measurement reference. This instrument has three measurement references, i.e. post-reference, pre-reference, and extended reference. Keep tapping this button for a bit longer to set the unit of measurement (including: m, in(decimal display mode), in(score display mode),ft, and “ft+/in”(feet + inches (score display)).
-
Page 13: Instrument Functions, Applications And Operations
Laser Distance Measure (MH-02-LM-B1-196-1) Instrument Functions, Applications, and Operations Basic Functions Corresponding Touch Operation Function Description Display Icon Button Description Tap this button to activate the laser Single function, aim at the Start measurement target, and tap this 3.000m Interface button again to start 6.234m... - Page 14 Laser Distance Measure (MH-02-LM-B1-196-1) Rectangular area Tap this measurement button to select the area measurement modes or the cubic volume measurement mode, and carry out corresponding measurement operations. Cubic volume measurement Tap this button to select the triangle area Triangle...
- Page 15 Laser Distance Measure (MH-02-LM-B1-196-1) Tap this button to select the right trapezoidal area Right measurement trapezoidal mode and area proceed with measurement corresponding measurements Tap this button to select accumulative Accumulative area area measurement measurement +...+S mode and proceed with corresponding measurements.
- Page 16 Laser Distance Measure (MH-02-LM-B1-196-1) Additional Functions Corresponding Operation Touch Function Description Icon Button Description Automatically Tap this button to detect the enter into auto instrument’s detection of the instrument’s X/Y bi-directional bi-directional levelness, levelness. with accuracy of 0.8° Pythagorean theorem...
- Page 17 Laser Distance Measure (MH-02-LM-B1-196-1) Tap this button to select the desired measurement mode and Measure the proceed with distance corresponding between measurement. any two points NOTES: on the 1. Make sure the vertical measurement reference remain plane by unchanged making...
- Page 18 Laser Distance Measure (MH-02-LM-B1-196-1) Tap this button to select this Measure the vertical and measurement horizontal mode and distances of a proceed with point in the corresponding space to the measurements. reference, vertical with both NOTE: α measurements After reference...
-
Page 19: Warranty
MOTORHEAD. Repair or replacement under this Warranty does not affect the expiry date of the Warranty. To the extent permitted by law, MOTORHEAD shall not be liable under this Warranty for indirect or consequential loss resulting from deficiencies in this product. This Warranty may not be varied without the authorization of MOTORHEAD. - Page 20 Laser Distance Measure (MH-02-LM-B1-196-1) WARNING: For adult use only. This product is not a toy. Keep out of reach of children. WARNING: For adult use only. Not for children 17 years of age or younger. WARNING: Wear safety goggles – user and bystander.
