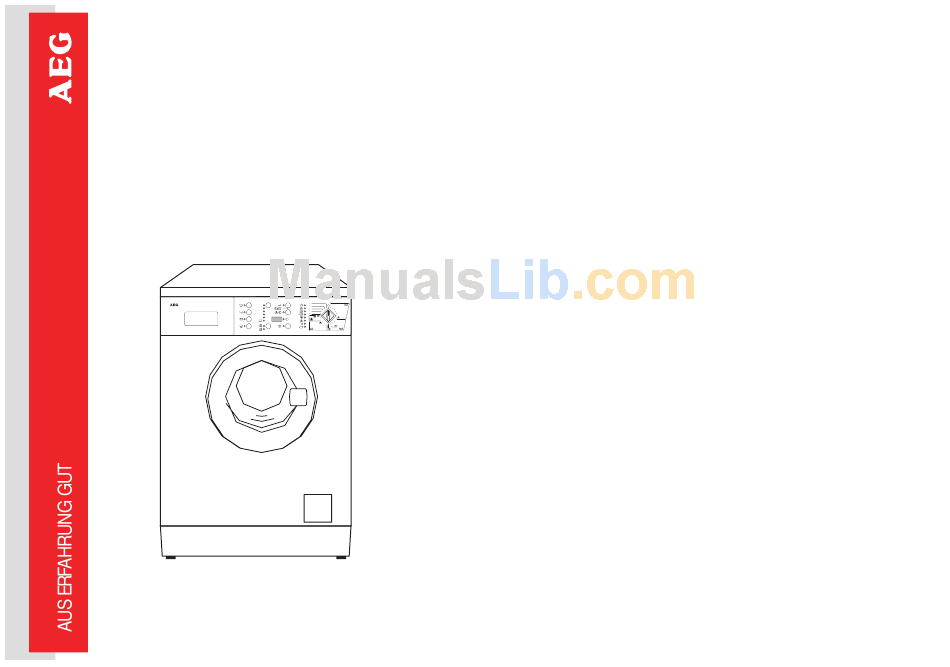

- Page 1 ÖKO-LAVAMAT 14800 TURBO ELECTRONIC The environmentally friendly washer-dryer Instruction booklet ÖKO_LAVAMAT TURBO 1400 1000 14800...
-
Page 2: Table Of Contents
Dear customer, Please read these operating instructions carefully and pay particular attention to the safety notes indicated in the first pages. We recom- mend that you keep this instruction booklet for future reference and pass it on to any future owners. The warning triangle and/or the key words (Warning!, Caution!) empha- size information that is particularly important for your safety or correct functioning of the appliance. - Page 3 Contents Preparing the drying cycle ........22 Load .
-
Page 4: Safety Instructions
Safety instructions The safety of AEG appliances complies with the industry standards and with legal requirements on the safety of appliances. However, as man- ufacturers, we feel it is our duty to provide the following safety notes. General safety • Repairs to the machine must be carried out only by qualified person- nel. -
Page 5: Disposal
Disposal Packaging materials The materials marked with the symbol >PE<=polyethylene >PS<=polystyrene >PP<=polypropylene This means that they can be recycled by disposing of them properly in appropriate collection containers. Machine Use authorised disposal sites for your old appliance. Help to keep your country tidy! Tips for environmental protection To save water, energy and to help protect the environment, we recommend... -
Page 6: Description Of The Appliance
Description of the appliance Front view Detergent drawer Control panel ÖKO_LAVAMAT TURBO 1400 1200 14800 Adjustable feet Control panel Door Drain filter Description of the appliance 1400 1200 A = Option buttons B = Spin speed button C = Electronic drying button D = Display E = START/PAUSE button F = Delay start button... -
Page 7: Start/Pause Button
Description of the appliance Position at 40°C = Easy to iron. In this position the laundry is gently washed and spun to avoid any creasing. In this way ironing is easier. Position = cold wash START/PAUSE button This button has three functions: a) Start After having selected the required programme, press this button to start the machine. -
Page 8: Spin Speed
Description of the appliance The soak programme ends with a short spin in programmes for Cotton and Synthetics, and with emptying of the water without spinning for Delicates. PREWASH The machine performs a prewash cycle at 30°C max. The prewash cycle ends with a short spin in programmes for Cotton and Synthetics, and with emptying of the water without spinning for Delicates. -
Page 9: Cancelling A Programme
Description of the appliance Cancelling a programme To cancel a programme which is running, turn the programme selector dial to the RESET O position. Warning! After a programme which ends with water in the drum option), turn the selector dial first to O and then to (RINSE HOLD the DRAIN programme “C”. -
Page 10: Preparing The Wash Cycle
Preparing the wash cycle Sorting out and preparing the laundry • Sort out the laundry according to type of fabrics and care labels (see “Types of fabric and care labels”). • Empty pockets. • Remove any metal parts (safety pins, clips, etc.). •... -
Page 11: Detergents And Additives
Preparing the wash cycle Delicates Microfibres, synthetics or curtains marked with these symbols require a very gentle treatment. The DELICATES programme is suitable for this type of fabric. Woollens and particularly delicate items Fabrics such as wool, wool mix or silk marked with this symbol are par- ticularly sensitive to machine washing. -
Page 12: Preparing The Drying Cycle
Preparing the drying cycle As a dryer, the machine works on the condensation principle. Therefore, the water tap must be open and the drain hose must drain water into a sink or into the drain pipe, even during the dry- ing cycle. -
Page 13: Additional Drying
Preparing the drying cycle Additional drying Should the laundry still be too wet at the end of the programme, set another short drying time. Warning! To prevent the formation of creases or shrinking of fab- rics, avoid excessive drying. How to dry Drying only Max. -
Page 14: Selection Of The Desired Wash Programme
How to wash Selection of the desired wash programme Turn the programme selector dial to the desired position: the lights corresponding to the different phases making up the selected programme light on. The display shows the duration of the programme. Selection of the desired options depending on the degree of soil of the laundry. -
Page 15: Starting The Programme
How to wash Starting the programme 1. Check that the water tap is open. 2. Press START/PAUSE to start the programme. If the Delay Start option has been selected the programme will start at the end of the count- down. If the door light is red and flashing at the start of the pro- gramme it indicates that the door is open. -
Page 16: Programme Chart
Programme chart Wash programmes Wash Additional Temp. Fabrics programme functions Cotton and linen, STAIN SOAK for example nor- White QUICK mally soiled work Cottons 95°-60° PREWASH garments, sheets, EXTRA RINSE household linen, RINSE HOLD underwear, towels. SPIN SPEED Cotton and linen, for PREWASH example normally to EXTRA RINSE... -
Page 17: Consumption Data For Timed Drying
Programme chart Timed Drying Degree of drying Type of fabric Max. load Cotton and 2.75 kg linen (towels, T-shirts, 1.5 kg Store dry (*) bathrobes) Suitable for items to Synthetics and put away without mixed fabrics 2 kg ironing (jumpers, blouses, underwear, 1 kg... -
Page 18: Cleaning And Maintenance
Cleaning and maintenance After each wash At the end of the wash programme, pull the dispenser drawer out a lit- tle to let it dry. Leave the door ajar to allow air to circulate. If the machine is not used for a prolonged period: Close the water tap and unplug the appliance. -
Page 19: Emergency Emptying Out
Once the problem has been eliminated, press the START/PAUSE button to restart the programme. If after all checks, the problem persists, con- tact your local AEG Service Force Centre. If the alarm code EFO (water leakage) appears on the display, con- tact the Service Force Centre. - Page 20 Something not working? Problem Possible cause The water tap is closed (E10). Open the water tap. The water inlet hose is squashed or kinked (E10). The machine does not fill The small filter of the water inlet hose is clogged (E10). The door is not properly closed (E40).
-
Page 21: Unsatisfactory Washing Results
Something not working? Problem Possible cause The unbalance detection device that prevents excessive vibration during spinning has cut in. Spinning starts late or the machine does not spin The water tap is not open (E10). The drain filter is clogged. The drying time or degree of Select the required function. -
Page 22: Technical Data
Technical data Height x Width x Depth Depth with door opened Height adjustment Net weight Load (depending on programme) Drum speed during washing Drum speed during spinning Water pressure This appliance complies with the following EC directives: 73/23/EEC of 19.2.1973 “Low voltage directive”, including directive 93 / 68 / EEC 89/336/EEC of 3.5.1989 “Electromagnetic Compatibility Directive”. -
Page 23: Instructions For Installation And Electrical Connection
Instructions for installation and electrical connection Safety instructions for the installer • This appliance is heavy, care should be taken when moving it. • When unpacking the appliance, check that it is not damaged. If in doubt, do not use it and contact the retailer. •... -
Page 24: Installation
Installation Unpacking All transit bolts and packing must be removed before using the appli- ance. Using a spanner, unscrew and remove the rear right-hand bolt and lay the machine on its back, taking care not to squash the hoses. This can be avoided by placing one of the corner packing pieces between the machine and the floor. -
Page 25: Water Inlet
Installation Water inlet Connect the water inlet hose to a separate tap with a 3/4" thread after hav- ing inserted the small filter “A” supplied with the machine. The other end of the inlet hose which connects to the machine can be turned in any direction. - Page 26 AEG Hausgeräte GmbH Postfach 1036 D-90327 Nürnberg http://www.aeg.hausgeraete.de © Copyright by AEG 124.971.530-01-1299...
