Summary of Contents for ANKOVO JPD-FR100+

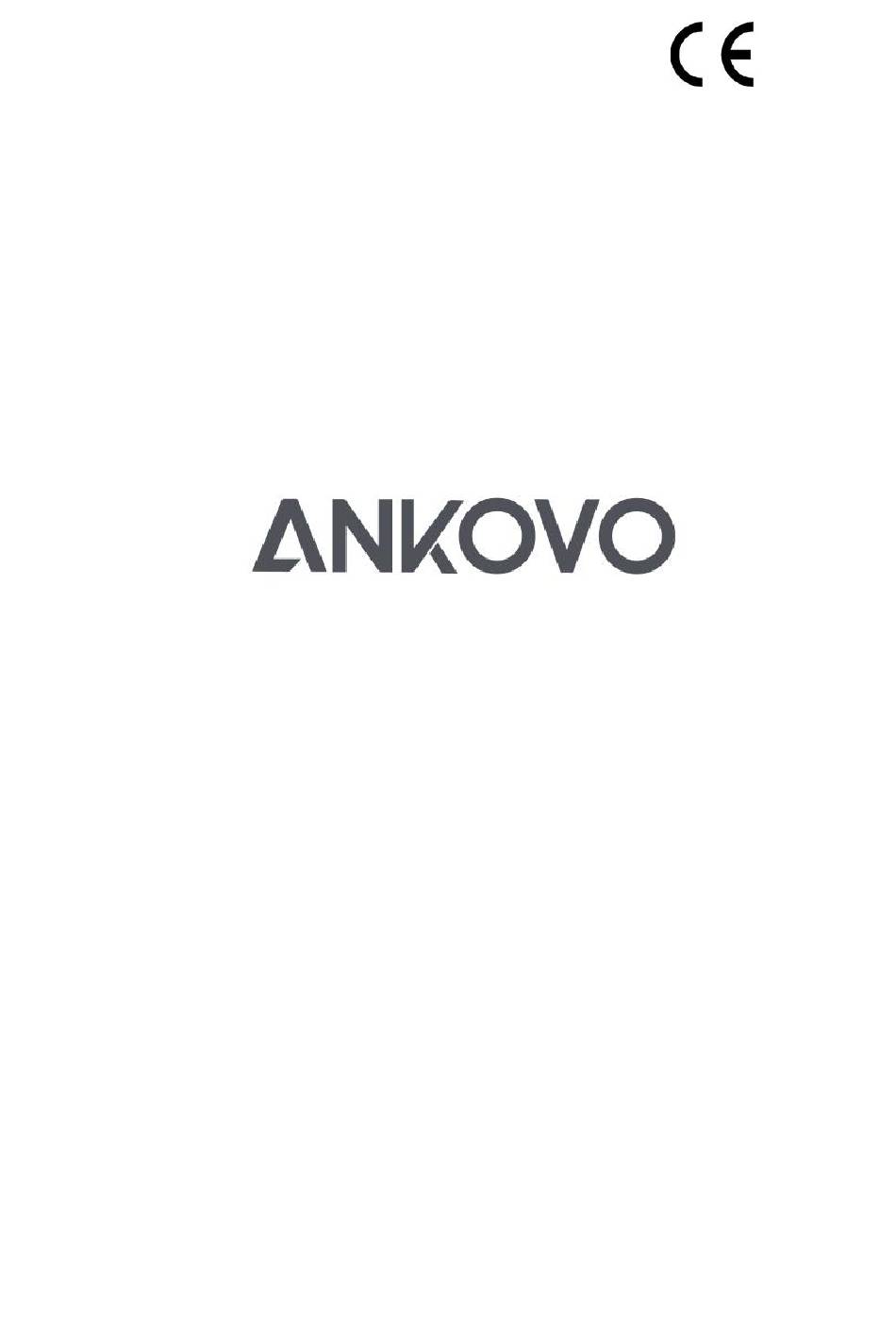

- Page 1 JPD-FR100+ 0482 Infrared Thermometer Instruction Manual Manual Ver.: 1.2 Issuing Date: 2018/01/29...
- Page 3 ANKOVO Medical, Dual mode infrared thermometer for short. With the unique technology, the Dual mode infrared thermometer JPD-FR100+ of ANKOVO Medical can give the result with Dual mode, stable measurement and without the interference from ambient temperature. The product will self-test every time it starts up to make sure the normal operation and accuracy.
-
Page 4: Table Of Contents
Contents 1. The advantages of infrared thermometer JPD-FR100+...... 1 2. Necessary safety instructions..............2 3. Instructions for product designs..............3 4. How to measure the forehead temperature..........3 5. How to measure the ear temperature............4 6. Instructions for display and operation............5 7.Cleaning and Disinfection................ -
Page 5: The Advantages Of Infrared Thermometer Jpd-Fr100
1. The advantages of infrared thermometer JPD-FR100+ Multiple use (measurement of forehead temperature and ear temperature) Thanks to dual mode design, you are free to take body temperature by detecting the infrared heat given off by the forehead ,which is from 32℃ to 42.2℃(from 89.6℉... -
Page 6: Necessary Safety Instructions
●Please do not use the product if the temperature sensor or the Dual mode infrared thermometer shows any sign of damage. Do not try to repair the product if it is damaged. Please contact the nearest ANKOVO Customer Service. ●JPD-FR100+ consists of precision parts with high quality. Please prevent the product from falling off. -
Page 7: Instructions For Product Designs
●Medical assistance can’t be replaced by the use of infrared Dual mode infrared thermometer ●The Dual mode infrared thermometer is not waterproof! Keep it away from water. 3.Instructions for product designs (1) Sensor (Take off the cover before detecting the eardrum temperature) (2) Head: start detection of forehead temperature (3) Ear: start detection of eardrum temperature (4) LCD display... -
Page 8: How To Measure The Ear Temperature
5.How to measure the ear temperature (1) Gently remove the probe cover to reveal the ear probe. (2) Insert the ear probe into the ear canal. (3) Press and release the Ear button. The temperature will be displayed on the screen instantly. Note: •... -
Page 9: Instructions For Display And Operation
In order to avoid the inaccuracy: (1) The sensor is extremely sensitive. Any debris and/or grease on the sensor lens may prevent an accurate measurement. For best result, please check and clean the lens regularly. Please note that the sensor lens can look deceptively “clean”... - Page 10 Operational method and Sound and backlit display instruction for displays 1.Measurement of forehead temperature: Point the thermometer at the When the temperature is center of the forehead. Move the below 99.6°F/ 37.6°C thermometer towards the (32.0-99.5°F/ 0.0-37.5°C), forehead until the probe cover there will be a long beep touches the skin.
- Page 11 3 short beeps with a red The measured value falls below backlit for 3 seconds. 32.0°F/0.0°C. Recalling recorded data – up to 20 readings Operational method and instruction for Sound and display displays backlit Press and hold the Ear button for 3-6 seconds and the LCD will display “- - -”...
- Page 12 unit to your choice. Error message 3 short ticks LCD screen will display “Er1” when ambient and green temperature exceeds 104.0°F/40.0°C or backlit for 3 drops below 50.0°F/10.0°C. seconds. LCD screen will display “ErC” if there is 3 short ticks EEPROM data reading error or the and green calibrating process is not finished.
-
Page 13: Cleaning And Disinfection
7.Cleaning and Disinfection Cleaning Clean the temperature probe with a soft cloth. Clean the lens of the temperature probe with a cotton swab. Wipe the thermometer body with a slightly damp soft cloth, and gently dry the body with a piece of tissue paper. Keep water off the lens during the cleaning process. -
Page 14: Troubleshooting
The thermometer is If the warranty period faulty. does not expire, contact ANKOVO or a local distributor. Only the battery The battery level is low. Use new batteries of symbol is the same model or displayed after the specifications. -
Page 15: Technical Specifications
30 minutes minutes after the after being taken from a thermometer is moved cold environment. into the measurement environment. The temperature probe Contact ANKOVO. The temperature is faulty. reading is higher than the typical body temperature range. 10. Technical specifications... - Page 16 LCD displays “L ℃” if the measured temperature is below the minimum of measurement range. LCD displays “H ℃” if the measured temperature is below the minimum of measurement range. 7.Abnormal state LCD displays “Er1”if the temperature measurement display circuit is abnormal (fault of SENSOR or the temperature measurement circuit), or the ambient temperature exceed 10℃~40℃...
-
Page 17: After-Sale Service
Life 5 years Statement: 1、There have some differences in the accuracy of measurements obtained with IR thermometers versus contact thermometers (that is, mercuryin- glass and electronic thermometers). these differences include the following anticipated error sources: * Use disposable probe covers can cause low temperature detected. * The operators’measurement methods is not correct. -
Page 18: Declaration
Symbol Description Attention must be paid. Information about a manufacturer, such as name and address. Please read the instructions carefully. Waste electrical materials should be sent to a dedicated collection point for recycling. A personal injury or thermometer damage may occur Warning if the thermometer is not correctly used. - Page 19 JPD-FR100+ Infrared Thermometer should assure that it is used in such an environment. Emissions Compliance Electromagnetic environment - guidance test The JPD-FR100+ Infrared Thermometer uses RF energy only for its internal RF emissions function. Therefore, its RF emissions are Group 1 CISPR 11 very low and are not likely to cause any interference in nearby electronic...
- Page 20 Guidance and manufacturer´s declaration – electromagnetic immunity –for EQUIPMENT and SYSTEM that are not LIFE-SUPPORTING Guidance and manufacturer´s declaration – electromagnetic immunity The JPD-FR100+ Infrared Thermometer is intended for use in the electromagnetic environment specified below. The customer or the user of the JPD-FR100+ Infrared Thermometer should assure that it is used in such an environment.
- Page 21 survey,a should be less than the compliance level in each frequency range. Interference may occur in the vicinity of equipment marked with the following symbol: NOTE 1 At 80 MHz and 800 MHz, the higher frequency range applies. NOTE 2 These guidelines may not apply in all situations. Electromagnetic affected by absorption and reflection from structures, objects and people.
- Page 22 minimum distance between portable and mobile RF communications equipment (transmitters) and the JPD-FR100+ Infrared Thermometer as recommended below, according to the maximum output power of the communications equipment. Rated Separation distance according to frequency of transmitter m maximum 150 kHz to 80 80 MHz to 800 800 MHz to 2,5 output...
- Page 24 Shenzhen Jumper Medical Equipment Co., Ltd. Address: D Building, No. 71, Xintian Road, Fuyong Street, Baoan,Shenzhen,Guangdong,China Website: https://ankovo.com E-mail: cs@ANKOVO.com...
