Summary of Contents for BROOD DRNX BRW

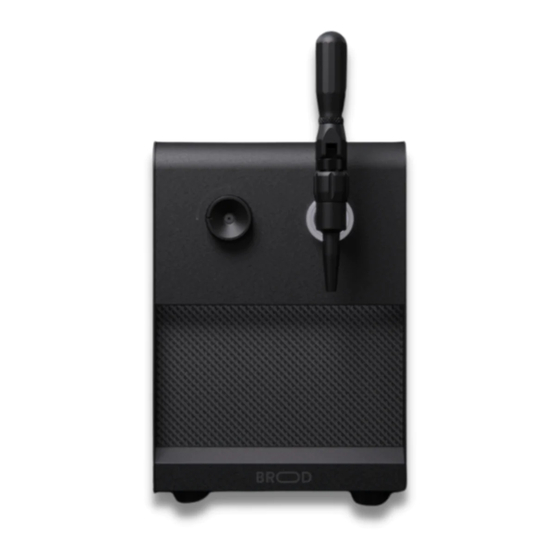

- Page 1 DRNX BRW BY BROOD MANUAL...
-
Page 2: Table Of Contents
CONTENTS SAFETY REGULATIONS GENERAL INFORMATION COMPONENTS INSTALLATION OPERATION ADJUSTABLE SETTINGS CARE TROUBLESHOOTING WARRANTY DECOMMISSIONING CONTACT DRNX BY BROOD... -
Page 3: Safety Regulations
STORING DRNX If DRNX BRW is to remain inactive for a long time, turn it off and unplug it. Store it in a dry place, out of reach of children. Make sure the storage area is between 13°C and 40°C. Keep it protected from dust and dirt. -
Page 4: General Information
Follow the service and maintenance instructions in this operation manual. DRNX BRW pulls any filtered liquid from an internal reservoir. The liquid can be poured directly into the reservoir, or it can be housed in a soft-walled Bag-in-Box (BiB) bladder. The reservoir is refrigerated such that the liquid is dispensed at 2°C. -
Page 5: Components
17 — Pump ON/OFF Switch 9 — Rear Plate 18 — Ventilation Valve SPECIFICATIONS Width: 10.25in Power Supply: 100-120V/60Hz; 200-240V/50Hz Height: 14.75in Nominal Power: 334W Depth: 20.00in Weight: 73lbs Dispensing Capacity: 1.5L/min (0.4gpm) Coffee Temp at Tap: 2°C (36°F) DRNX BY BROOD... -
Page 6: Installation
BiB bladder to flow through the machine with ease. Never use a BiB bladder that has a stiff wall. THE CENTER IS THREADED. THE BiB BLADDER ADAPTER IS FASTENED INSIDE THIS THREADED HOLE. DRNX BY BROOD... -
Page 7: Operation
6. Return the tap to the start position when you have completed the pour. Ensure that the coffee is filtered with a fineness of at least 100 μm (microns). WARNING: Never run hot liquid above 30°C (86°F) through DRNX BRW. DRNX BY BROOD... -
Page 8: Adjustable Settings
1. Locate and remove the ten screws on the left panel. 2. Locate the calibration knob at the forefront section. Turning it clockwise will decrease the amount of nitro. 3. Return the side panel and screw it securely. DRNX BY BROOD... -
Page 9: Care
CLEAN & MAINTAIN Follow the cleaning procedures below as it is essential to both extend the life of the DRNX BRW, and to achieve the desired flavor of cold brew. It must be cleaned twice week as described in the steps below. -
Page 10: Troubleshooting
Check to see if the main switch underneath connected to the machine DRNX BRW is on. Then check to see if the pump switch on the top of the machine is on. If either one is off, please switch them on. If the pump switch is flashing, switch it off then on to reset the pump. -
Page 11: Faq
Q. WHERE DO I PUT MY COLD BREW COFFEE OR TEA? A. DRNX BRW has an internal chilled reservoir. Either pour your cold brew or tea directly into the reservoir or connect your BiB bladder to the bottom of the reservoir. Please watch our instructional video on our website drinkbrood.com. -
Page 12: Warranty
• Daily flushing of DRNX BRW as outlined in the operation manual is required. • Cleaning DRNX BRW consistently is crucial to the operation and lifespan. Any negligence in daily cleaning and upkeep of DRNX BRW will risk damaging the machine over time. The warranty period is 1 year. Please review our warranty terms and conditions. -
Page 13: Decommissioning
DECOMMISSIONING STORAGE Before placing DRNX BRW out of service for a period longer than 2 weeks, we recommend the weekly cleanse as per the instructions in the Care section. Store DRNX BRW in a dust-free environment between 13°C and 40°C. -
Page 14: Contact
CONTACT DRNX BY BROOD... - Page 15 DRNX BY BROOD...
