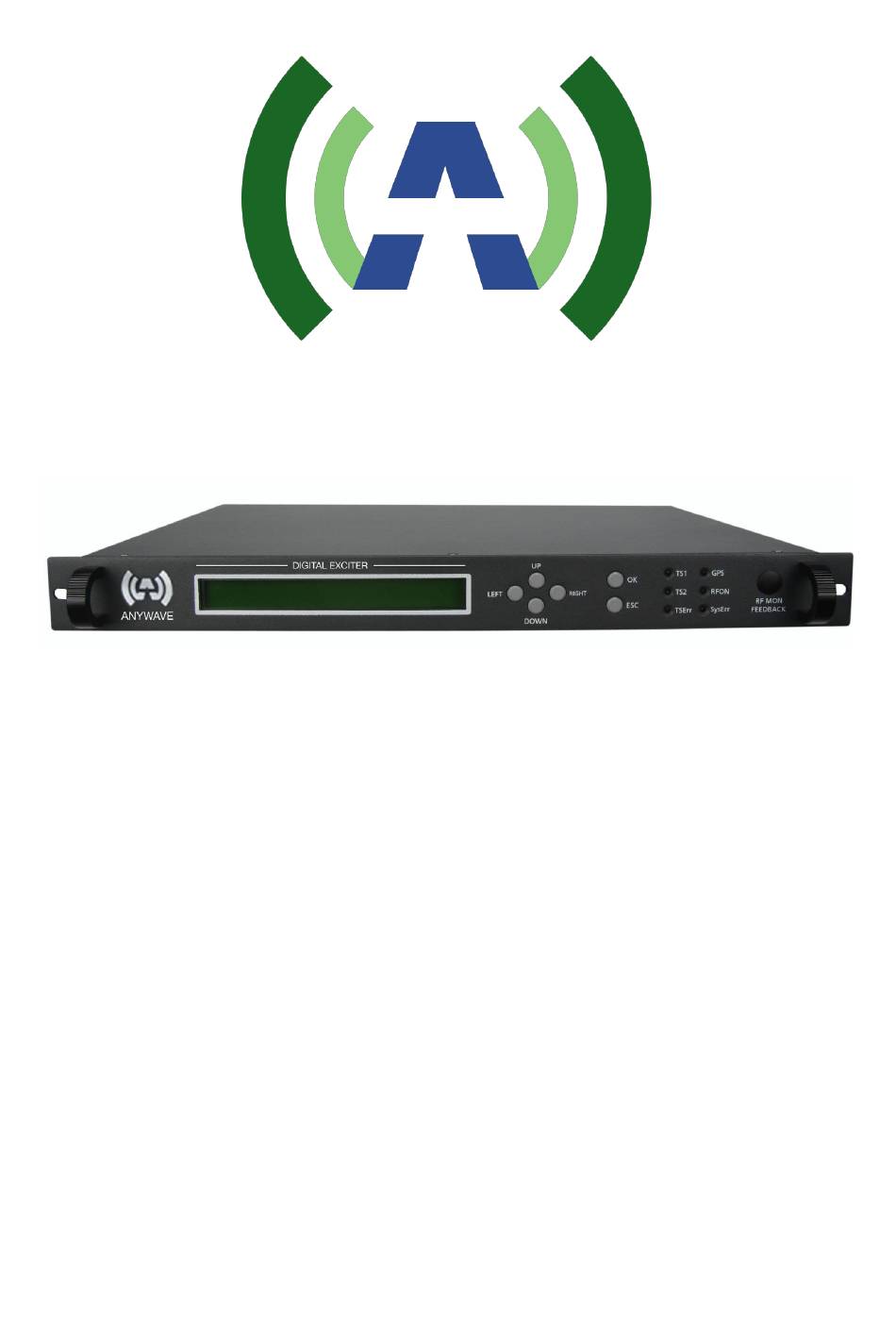

- Page 1 ANYWAVE ACT-5X+ ATSC Exciter/Translator User Manual Version 1.1 ACT-5X+U-A -C May 8, 2015...
- Page 2 This equipment complies with relevant portions of Parts 2, 73, & 74 of the FCC rules governing LPTV operation. Disclaimer Information provided by Anywave Communication Technologies is believed to be accurate and complete; however, no liability can be assumed for its use. The manufacturer makes no representations or warranties, either expressed or implied, by or with respect to anything in this manual, and shall not be liable for any implied warranties of fitness for a particular purpose or for any indirect, special, or consequential damages.
- Page 3 Returns and Exchanges Written approval and a Return Authorization Number (RAN) are required from Anywave for all equipment returns. Please direct all return inquiries to the Anywave Service Department at support_us@anywavecom.com, providing the Sales Order number and Serial Number(s) of the equipment.
- Page 4 The installation, operation, maintenance and service of this equipment involves risks both to personnel and equipment, and must ONLY be performed by qualified personnel exercising due care. Anywave Communication Technologies, Inc. shall not be responsible for injury or damage resulting from improper handling or from the use of improperly trained or inexperienced personnel performing such tasks.
-
Page 5: Table Of Contents
ACT-5X+ Exciter User Manual Contents 1 Product Appearance ..................6 1.1 Front Panel ..................... 6 1.2 Back Panel ..................... 7 2 Operation Specifications ................... 8 3 Menu ....................... 11 3.1 Initialization ....................11 3.2 Query Mode ....................11 3.3 User Menu ....................13 3.4 Advanced Menu ................... -
Page 6: Product Appearance
ACT-5X+ Exciter User Manual 1 Product Appearance 1.1 Front Panel LCD: 40×2 LCD with power saving backlight 6 Buttons : Left, Right, Up, Down, OK, ESC 6 LEDs: When in Exciter mode: LED_TS1: Green light on indicates TS1 is selected and the input TS signal is OK LED_TS2: Green light on indicates TS2 is selected and the input TS signal is OK LED_TSErr: Red light on indicates the selected input signal has error (Refer to Chapter 5) -
Page 7: Back Panel
ACT-5X+ Exciter User Manual 1.2 Back Panel RF_IN_A: Feedback signal for SNR/IMD displayed and AGC RF feedback option, sampled after the band-pass filter (-5 to -15dBm) RF_IN_B: Feedback signal, sampled before the band-pass filter (-5 to -15dBm) AGC_IN: AGC DC feedback option (0-5VDC) RF_MON: Loop out of [RF_OUT] for monitoring (10 dB below RF_OUT) RF_OUT:... -
Page 8: Operation Specifications
ACT-5X+ Exciter User Manual 2 Operation Specifications Environment Operating Temperature: -10 ~ 50 ≤ 95% Operating Humidity: Atmospheric Pressure: 86 kPa ~ 106 kPa Power Supply Voltage: 88 ~ 264 VAC Frequency: 50 / 60 Hz ... - Page 9 ACT-5X+ Exciter User Manual 1PPS IN Connector: BNC female Impedance: 50 Ω Level: 3.3 V-TTL Input trigger: Positive Transition Location: Back Panel 10M OUT Connector: BNC female Impedance: 50 Ω Level: 0 dBm ...
- Page 10 ACT-5X+ Exciter User Manual 1200 Negative Transition (20%~80%) 10 Deterministic Jitter 8 Random Jitter Note The electrical interface characteristics are measured under normal conditions. Values may vary. Operating in abnormal conditions may result in damage to the equipment. Long operating hours in severe environments may reduce the reliability of the entire system, which may cause permanent damage to equipment.
-
Page 11: Menu
ACT-5X+ Exciter User Manual 3 Menu 3.1 Initialization Connect the power supply of the ACT-5X+ and then turn on the exciter/translator via the power switch located on the rear of the unit. The initialization process takes about 5 seconds to finish while the RF output level gradually increases to the pre-set value. - Page 12 ACT-5X+ Exciter User Manual Note: The "TSNR", "LID" and "UID" in Table 2 are the measurements of feedback signal quality. This feedback signal could be from a transmitter or the exciter/translator itself and its input range is -30 dBm to 0 dBm (Recommended range is -15 dBm to -5 dBm). These measurements are derived from the After-filter Feedback Signal connected to the rear port [RF_IN_A] BNC connector.
-
Page 13: User Menu
ACT-5X+ Exciter User Manual 3.3 User Menu In Control mode, the user may modify configuration settings of the exciter/translator. There are two levels of control, the User Menu and the Advanced Menu. To enter the User Menu, press both the "Left" and "Right"... - Page 14 ACT-5X+ Exciter User Manual The "ADPC" parameter in the "SYSTEM" sub-menu has options of "UPDATE", "HOLD" and "OFF". If option "OFF" is selected, the ADPC function will be turned off (no correction applied). If option "HOLD" is selected, the exciter will apply the last stored linear and non-linear correction coefficients.
- Page 15 ACT-5X+ Exciter User Manual Table 8 RF Menu POWER Default +0.00 -25.00 000~255 000~255 -24.95 -24.90 Options +4.90 +4.95 +5.00 Note: The RF parameter in the “RF” sub-menu turns the RF output of the exciter/translator ON or OFF. The POWER parameter specifies the RF output power level in dB (in the range of -25 to +5 dBM, note: typical exciter/translator output level is 0 dBm).
- Page 16 ACT-5X+ Exciter User Manual Table 9 FREQ Menu RXFREQ TXFREQ Default 653M 653M +00000 473M 473M -50000 479M 479M -49999 485M 485M -49998 Options 875M 875M +49998 881M 881M +49999 887M 887M +50000 Note: The RXFREQ parameter in the “FREQ” sub-menu specifies the off-air receiver channel frequency for the internal tuner to receive the proper over-the-air UHF channel.
- Page 17 ACT-5X+ Exciter User Manual Table 11 CONFIG Menu GATEWAY MASK UPGRADE 192.168.001.1 192.168.001.0 255.255.255.00 Default ID: 80H 19200 ***.***.***.* ***.***.***.* ***.***.***.** ID: 00H 19200 ID: 01H 9600 Options 38400 ID: FEH ID: FFH Note: "IP", "GATEWAY", and "MASK" are used to establish a valid Ethernet connection for remote control via the REMOTE RJ45 located on the rear panel.
- Page 18 ***.***.***.*** Note: The "IP" submenu defines the physical IP address of the connecting Anywave power amplifier. The “MASK” submenu defines the network mask of the connecting Anywave power amplifier. The “GATEWAY” submenu defines the network gateway/route of the connecting Anywave power amplifier.
-
Page 19: Advanced Menu
ACT-5X+ Exciter User Manual 3.4 Advanced Menu To enter the Advanced Menu, first enter the User Menu by pressing the both "Left" and "Right" buttons at the same time to arrive at the menu shown below. Table 15 User Menu Welcome to setting interface! *SYSTEM NETWORK... - Page 20 ACT-5X+ Exciter User Manual Note: "PCRL" in Advanced User Menu contains 3 bits. Its default value is 1 which means both PCR function and NULL packet deletion is turned on. It’s only applicable in Legacy mode. In MH mode, all input streams remain untouched. Bit2 is the switch of Insert-NULL-Packet.
- Page 21 ACT-5X+ Exciter User Manual Table 19 AD3 Menu RC_CMD FWD_CAL Default Other Other Options Note: “RC_CMD” determines where the TX On/Off command comes from: “IO” means from Pin 1 of Dry Loop; “Other” means from either Serial or Web interface. "FWD_CAL": Default value is "OK".
- Page 22 ACT-5X+ Exciter User Manual "FSSI" is indicator of feedback signal strength and its range is from 0% to 100%. At +5 dB level, FSSI=100%. At -5 dB level, FSSI=75% At -15 dB level, FSSI=50% At -20 dB level, FSSI= 25% *The readings listed above are typical values.
-
Page 23: Web Interface
ACT-5X+ Exciter User Manual 3.4 Web Interface The ACT-5X+ exciter/translator has a built-in web interface accessible via the rear port REMOTE RJ-45 connection, Once networked to your PC, the built-in web interface may be accessed via a web browser (such as Internet Explorer or Firefox, etc.) by entering the IPaddress of the exciter (default 192.168.1.143, see Table 11 in section 3 for changing the default IPaddress). - Page 24 ACT-5X+ Exciter User Manual Version 1.1 5/8/2015 Page 24 of 33...
- Page 25 ACT-5X+ Exciter User Manual admin web interface Version 1.1 5/8/2015 Page 25 of 33...
-
Page 26: Connections
ACT-5X+ Exciter User Manual 4 Connections 4.1 Connect the Transmitter Don’t turn on or off the exciter/translator when the transmitter is running. The correct order is: First, turn on the exciter/translator and put it in Exciter Mode. Or if Translator Mode is preferred, ensure there is valid RF input connected to the translator, or the function of Muting RF output on loss of missing or invalid input signal is turned off. -
Page 27: Connections For Tsoip (Option)
ACT-5X+ Exciter User Manual Note: Do not change the connection status during the ADPC process otherwise it may affect the performance. If any abnormal situation occurs during the ADPC process, the system will bypass all the pre-correction data immediately and leave the corresponding status on the front panel LCD. Press any key to cancel the ADPC function manually and restart the ADPC function again after the problems are resolved. - Page 28 ACT-5X+ Exciter User Manual In the Exciter TS and MISC submenus below, you will next need to configure the Exciter TSoIP module settings (including the physical layer IP/Mask/Gateway settings as well as the specific method of how the transport packets should be received in the Exciter) to be consistent with your upstream TS IP network.
-
Page 29: Troubleshooting
ACT-5X+ Exciter User Manual 5 Troubleshooting 5.1 TS Input (Exciter Mode) TS1 ERROR Alarm message LCD: TS1 ERR LED_ TS1: LED_ TSErr: On Dry Loop: 0 V (TS Fault) Cause: Input signal from port [TS_IN_1A] is lost or has invalid format. ... -
Page 30: Gps (Option)
ACT-5X+ Exciter User Manual Equalization error Alarm message LCD: None LED_ TS2: LED_ TSErr: Flashing Dry Loop: 0 V (SysErr Fault) Cause: If LED_ TS1 is also off, it means the input RF signal could not pass the prior synchronization step so the equalization step is not started yet. -
Page 31: Other Problems
ACT-5X+ Exciter User Manual Note: The acceptable range of feedback signal from port [RF_IN_A] or [RF_IN_B] is -30 dBm to 0 dBm, and the recommended range is from -15 dBm to -5 dBm. Feedback Signal Connection Error Alarm message ... - Page 32 ACT-5X+ Exciter User Manual Solution: First of all, check the mute settings in the advanced menu. If the mute is ON for Translator Mode, then check the signal and connection of port [TUNER_IN] to see if there is a failed reception.
- Page 33 ACT-5X+ Exciter User Manual Anywave Communication Technologies Inc. 300 Knightsbridge Parkway, Suite 150, Lincolnshire, IL 60069 Tel: (847) 415-2258 Fax: (847) 415-2112 Email: sales_us@anywavecom.com http://www.anywavecom.com/en/ Version 1.1 5/8/2015 Page 33 of 33...
