Summary of Contents for Phoenix Fold Power

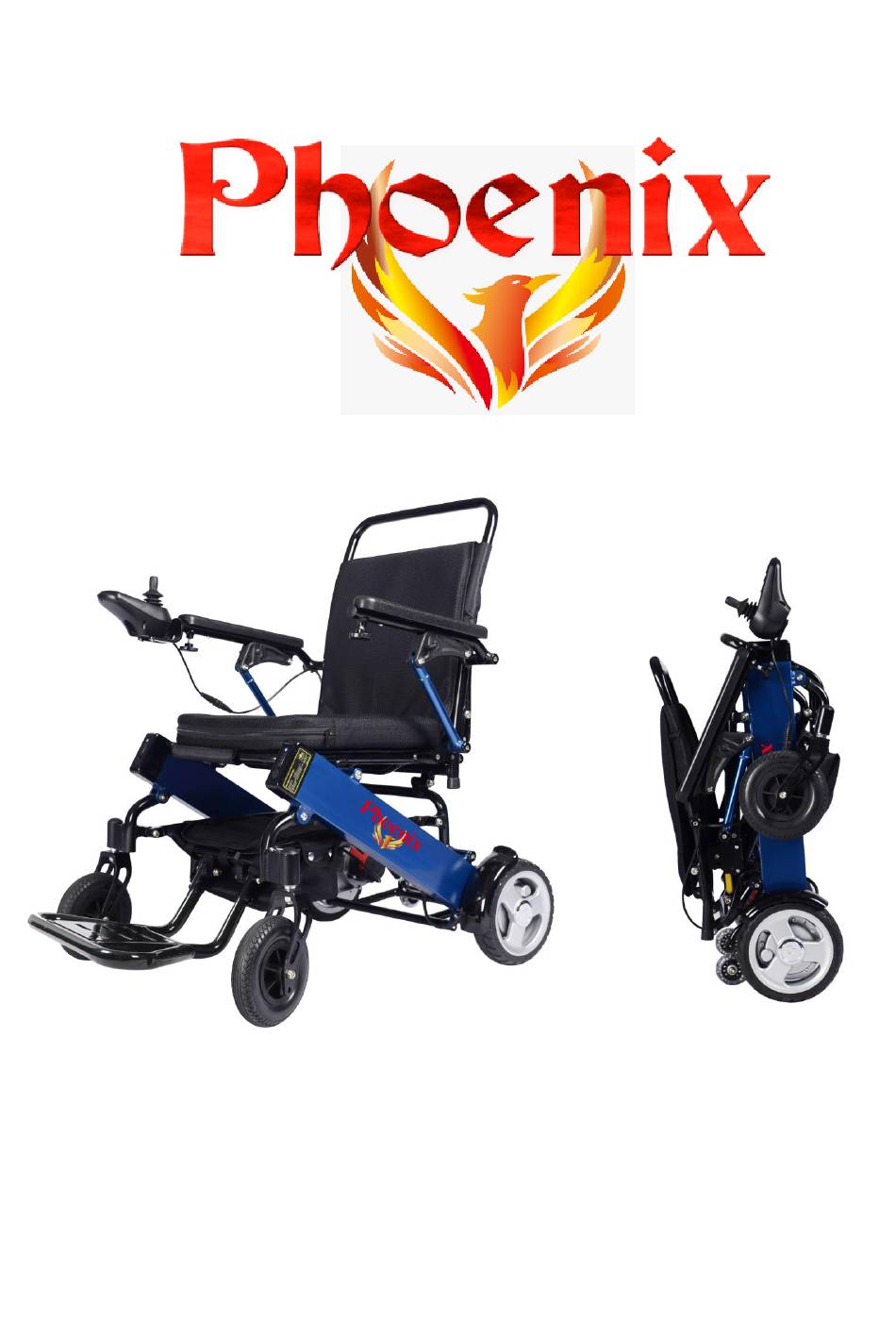

Page 1 Phoenix Power Wheelchair Operating Manual...
Page 2: Table Of Contents
Installing and removing the battery ......................18 Controller ............................... 13 Basic operation ............................14 Charging Batteries ..........................14 Free Wheel Mode ..........................17 Transporting Your Fold Power Wheelchair PHOENIX ................18 Trouble shootings ..........................19 Diagnostics ............................21 Warranty ..............................19...
Page 3: Introduction
The electric wheelchair will bring you freedom, it will to be your trusting and reliable friend. It is important to read through this manual before operating your Fold Power Wheelchair PHOENIX to become familiar with its features as well as its limitations and safety information. You will find the operation and care of your Fold Power Wheelchair PHOENIX very simple and easy.
Page 4: Specifications
Specifications Size and Weight 940*630*950mm Unfold size （L*W*H） 640*320*750mm Fold size （L*W*H） loading capacity 120kgs N.W. 21kgs without battery Motor Type DC brushless motor Rated power 180W Input voltage Quantity 2 units Brake system Intelligent electromagnetic brake Battery Type lithium polymer battery Nominal capacity Output voltage Quantity...
Page 5: Specification Diagram
Specification Diagram...
Page 6: Safe Operation
Practice bending, reaching and transferring in and out of Fold Power Wheelchair PHOENIX. d. Always be aware of your surroundings. e. If you are not sure the Fold Power Wheelchair PHOENIX can surpass an obstacle, try to find another way around.
Page 7: Precautions
(3) Never sit in the Fold Power Wheelchair PHOENIX while i a moving vehicle; an accident or sudden stop may cause you to be thrown from the electric wheelchair. (4) Never transport the Fold Power Wheelchair PHOENIX in the front of seat of a vehicle where it may shift ans interfere with the driver.
Page 8 Fold Power Wheelchair PHOENIX should it be technician may require parts, which manufacturer has available. We recommend you inspect your Fold Power Wheelchair PHOENIX two or three times per year for in the following areas: (1) Frame: Tighten loose screws as necessary using the tool kit included with your Fold Power Wheelchair PHOENIX.
Page 9: Electromagnetic Interference
TV station, amateur radio transmitters, two-way radios, and cellular phones. The interference (from radio wave sources) can cause the Fold Power Wheelchair PHOENIX to release its brakes, move by itself, or move in unintended directions.
Page 11 3. Unfold wheelchair PHOENIX Hold down seat GraspPushbar to expand...
Page 12 Grasp the push bar and pull up while holding down on the seat to expand the chair, as P.4 When the wheelchair is fully deployed, and the yellow stick at the back of the cushion frame is in the horizontal state, You will hear "click" at the same time ，that is mean "unfolding "is finished, as P.5 Put the cushion on the wheelchair,asP.6 Remove seat cushion...
Page 13: Installing And Removing The Battery
P.9Slide joystick controller into armrestP.10 Secure joystick controller knob 6. Connect the controller wire harness to the CPU wire harness. Take care the line up the pins properly as arrow tip indicate, so that they do not get bent, broken or damaged. Note Make sure connector pins“white arrow”...
Page 14 Removing the battery Press the soft plastic button on the battery shell ,at the same time pull out the battery . P.13...
Page 15: Controller
5. To stop, just bring the joystick back to the initial position. 6. Use extra care when you drive the Fold Power Wheelchair PHOENIX in reverse. You may lose control or fall if one of rear wheels hits an object. When operating in reverse A.
Page 16: Basic Operation
Your Fold Power Wheelchair will arrive with a fully charged battery, which should last about 18km under normal operation conditions. We recommend that you run the Fold Power Wheelchair PHOENIX until the battery is completely dead in order to get the most out of the battery life. ◎ First charging method Charge the battery via controller charge port.
Page 17 Controller Charge port 3. Allow your wheelchair to charge for 6-8 hours or when the light on the charger turns green, which means your batteries are full charged. 4. Should you require them, the lights and what they, mean are located on the back of the charger. Front Back Charger light...
Page 18 8. Do not charge more than 8 hours. 9. If you do not operate the Fold Power Wheelchair PHOENIX for two months, we recommend that you charge the battery for 6-8 hours before use. 10. Over current protection: this system is included on the wheelchair and will shut off the current from the batteries if triggered, thus shutting the motor down, which will ensure that the motor and battery do not experience and damage.
Page 19: Free Wheel Mode
1. To put the Fold Power Wheelchair PHOENIX in Free Wheel Mode, come to a full stop and turn OFF the power on the controller.
Page 20: Transporting Your Fold Power Wheelchair Phoenix
Transporting Your Fold Power Wheelchair PHOENIX To transport your Fold Power Wheelchair, it is advised that you fold it up following the procedures below. Note: Never transport the power wheelchair in a tie up system (electric mode), as the Fold Power Wheelchair PHOENIX is not compatible with them.
Page 21: Trouble Shootings
P. 20 Trouble shootings The following represents the most common questions asked about the Fold Power Wheelchair PHOENIX with regard to everyday use; check this helpful guide or the operator’s manual for more information if you have a question about using your power wheelchair.
Page 22 Why can’t I connect the Connector pins (male) on the Using a small tool, controller? controller have become bent and carefully straighten the misaligned with connector holes connector pins (male) on (female) on the CPU connector. the controller to align with holes (female) on the CPU connector.
Page 23: Diagnostics
Diagnostics Your controller as an indicator light that, during normal operation, is a steady GREEN. This light also functions as a diagnostic tool by flashing in patterns that indicate problems. It is important to pay attention to these diagnostics in case the power wheelchair must be put out of use for safety reasons until maintenance can be performed.
Page 24: Warranty
Warranty The purchaser of this product is entitled to a limited warranty as offered by our company, and its affiliates on the following components and timeframes: ※ Chair frame: 3 years ※ Motors: 1 year ※ Controller and CPU system: 1 year ※...
Page 25 Discover Your Mobility Inc. Address: 66 E Ten Mile Road Hazel Park Mi. 48030 Toll Free: (866) 868-9694...
