Iget SECURITY M3P9 Installation Manual

Features

The iGET SECURITY M3P9 wireless water intrusion sensor is an accessory of M3/M4 series smart alarm system. It's fashion
design, energy saving, and low battery warning supported. The main panel will send a SMS to user for battery replacement
when needed. It triggers alarm when detecting water intrusion.

Parameters

• Working Voltage DC 1.5V
• Battery 1 × AAA battery(1.5V)
• Working Current
55~65mA
• Standby Current
9.5μA~11μA
• Transmission Distance
Without obstacle 100m
• Transmission Frequency 433.29MHz
• Working Temperature -10℃~40℃
• Humidity ≤90%rh (non-condensing)
• Weight
32.3g(Battery not included) 43.5g(Battery included)
Transmitter :80.0mm*38.2mm*13.3mm(L*W*H)
• Dimension
Connecting Line: 21cm

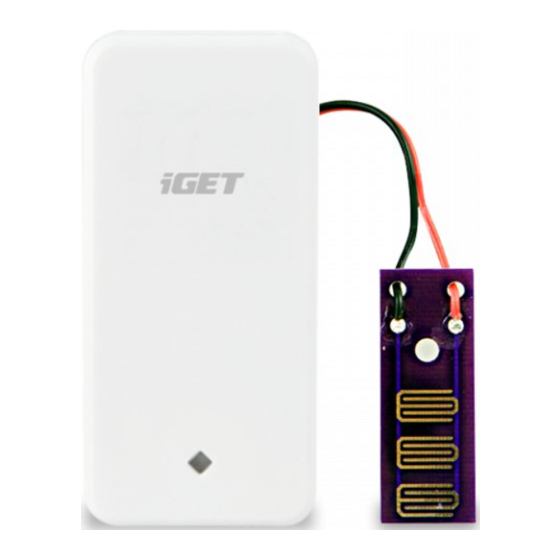

Appearance

Transmitter
LED Indicator
1

PCB Layout

Connecting Line
Probe
SECURITY M3P9
Installation Manual
Instalační Manuál
Inštalačný Manuál
Website : www.iget.eu E-mail : sales@iget.eu

Operating Instructions

1. Working principle

The transmitter sends trigger signal to paired main panel when the sensor detects water intrusion.

2. Pairing with main panel by App

① Scan the QR code printed on the sensor and follow the guideline in App to continue.
② The pairing result would be confirmed by SMS sent from main panel.
Installation & Notice
• Open the case and remove the battery insulative strip.
• Pair it with panel by App before installing.
• Attach the transmitter with the double-side sticky tape to proper positon. Avoid installing it in any area with a large amount
of metal or electric wires.
• Fix the connecting line on wall or any proper position.
• Fix the probe on detecting position. Aoivd installing it in any area with rains, heavy smoke or oil, or with heavy water vapour.
• To ensure long-term reliability, please clean and maintain the probe surface regularly.

Trigger Mode Clarification

Trigger Mode
Close
Instant
24 Hours
Home
Door Chime
Delay

Battery replacement instructions

① Insert the flat blade of a small screwdriver into the pry-off
slot of transmitter, twist the blade to remove the cover.
2
| Wireless Water Intrusion Sensor
| Bezdrátový detektor vody
| Bezdrôtový detektor vody
Clarification
Deactivated when triggered
Activated when ARM/HOME ARM
Activated even when DISARM
Deactivated when DISARM/HOME ARM
No alarm but clanking
Wait few seconds before alarm
② Replace with 1xAAA battery.
