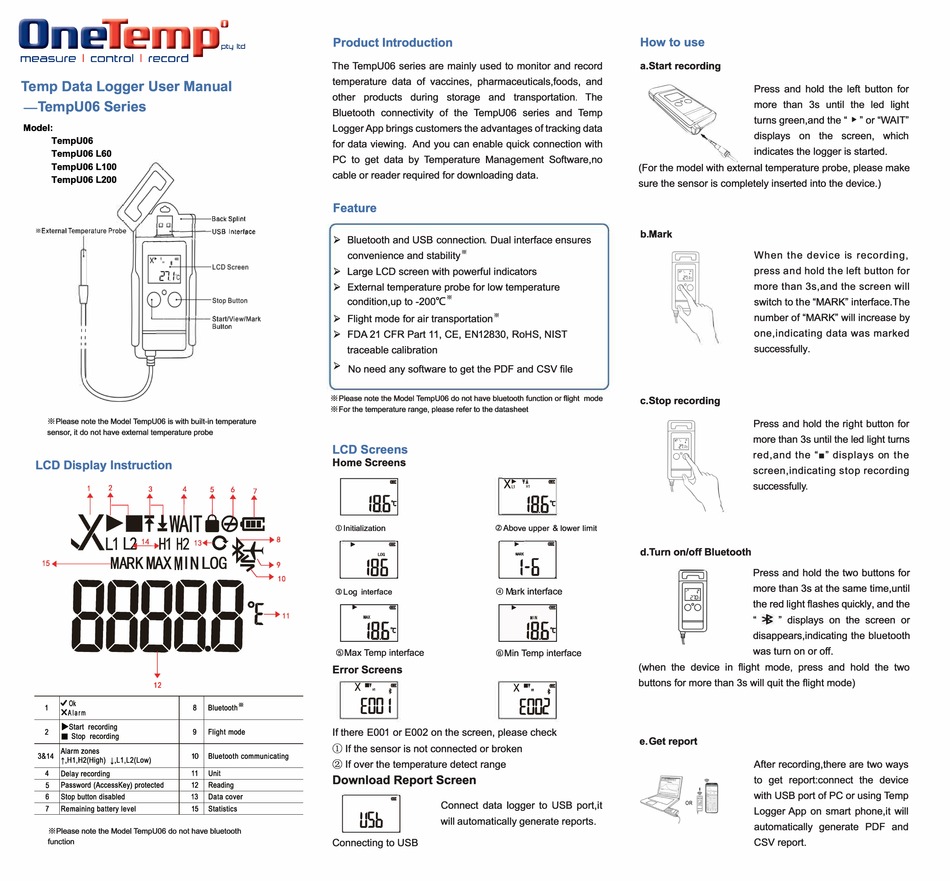

OneTemp TempU06 Series User Manual

Temp Data Logger User Manual
-TempU06 Series
Model:
TempU06
TempU06 L60
TempU06 L100
TempU06 L200
_=
*
1
External Temperature Probe
_-
1-- :::::j
.!: = ,;!
_ _ _ �
�
�---++-+--StartNiew/Mark
,,
"
*
Please note the Model TempU06 is with built-in temperature
sensor, it do not have external temperature probe
LCD Display Instruction
12
✓Ok
1 8
XAlarm
►Start recording
9
2
■
Stop recording
Alarm zones
3&14 10
j,H1 ,H2(High) l,L1 ,L2(Low)
4 Delay recording 11
5 Password (AccessKey) protected 12
6
Stop button disabled 13
7
Remaining battery level 15
*
Please note the Model TempU06 do not have bluetooth
function

Product Introduction

T he TempU06 series are mainly used to monitor and record
temperature data of vaccines, pharmaceuticals.foods, and
other products during storage and transportation. T he
Bluetooth connectivity of the TempU06 series and Temp
Logger App brings customers the advantages of tracking data
for data viewing. And you can enable quick connection with
PC to get data by Temperature Management Software.no
cable or reader required for downloading data.

Feature

Back Splint
B Inter face
-us
► Bluetooth and USB connection. Dual interface ensures
convenience and stability*
► Large LCD screen with powerful indicators
► External temperature probe for low temperature
condition.up to -200
► Flight mode for air transportation*
Button
► FDA 21 CFR Part 11, CE, EN12830, RoHS, NIST
traceable calibration
► No need any software to get the PDF and CSV file
*
*
Please note the Model TempU06 do not have bluetooth function or flight mode
For the temperature range, please refer to the datasheet

LCD Screens

Home Screens

1 • : e i i · I
<D Initialization
® Log interface
@Max Temp interface

Error Screens

X .. .
E□□ I
Bluetooth*
If there E001 or E002 on the screen, please check
Flight mode
CD If the sensor is not connected or broken
Bluetooth communicating
® If over the temperature detect range
Unit

Download Report Screen

I
Reading
Data cover
Statistics
L�
Connecting to USB
°
( *
· 1
I
@Above upper & lower limit
1-6
© Mark interface
@Min Temp interface
X .. .
•
{"'
E□□2
· 1
Connect data logger to USB port.it
will automatically generate reports.

How to use

a.Start recording
Press and hold the left button for
more than 3s until the led light
turns green.and the"
�
, displays on the screen, which
indicates the logger is started.
'
(For the model with external temperature probe, please make
sure the sensor is completely inserted into the device.)
b.Mark
When the device is recording,
press and hold the left button for
more than 3s,and the screen will
switch to the "MARK" interface.T he
number of "MARK" will increase by
one.indicating data was marked
successfully.
c.Stop recording
Press and hold the right button for
more than 3s until the led light turns
red.and the "■" displays on the
screen,indicating stop recording
successfully.
d.Turn on/off Bluetooth
Press and hold the two buttons for
more than 3s at the same time.until
the red light flashes quickly, and the
" * " displays on the screen or
disappears.indicating the bluetooth
was turn on or off.
(when the device in flight mode, press and hold the two
buttons for more than 3s will quit the flight mode)

e. Get report

After recording.there are two ways
to get report:connect the device
with USB port of PC or using Temp
Logger App on smart phone,it will
automatically generate PDF and
CSV report.
"or "WAIT'
►
