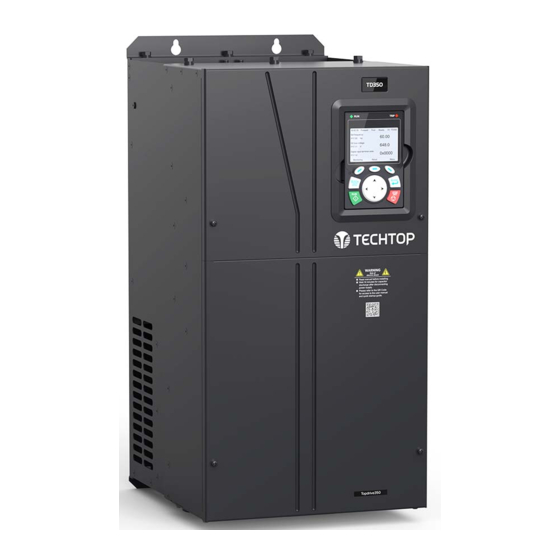

TECHTOP TOPDRIVE350 Series Installation Manual

TOPDRIVE350 SERIES
NEMA 1 KIT INSTALLATION GUIDE

For NEMA 1 Kit Frames 1-5:

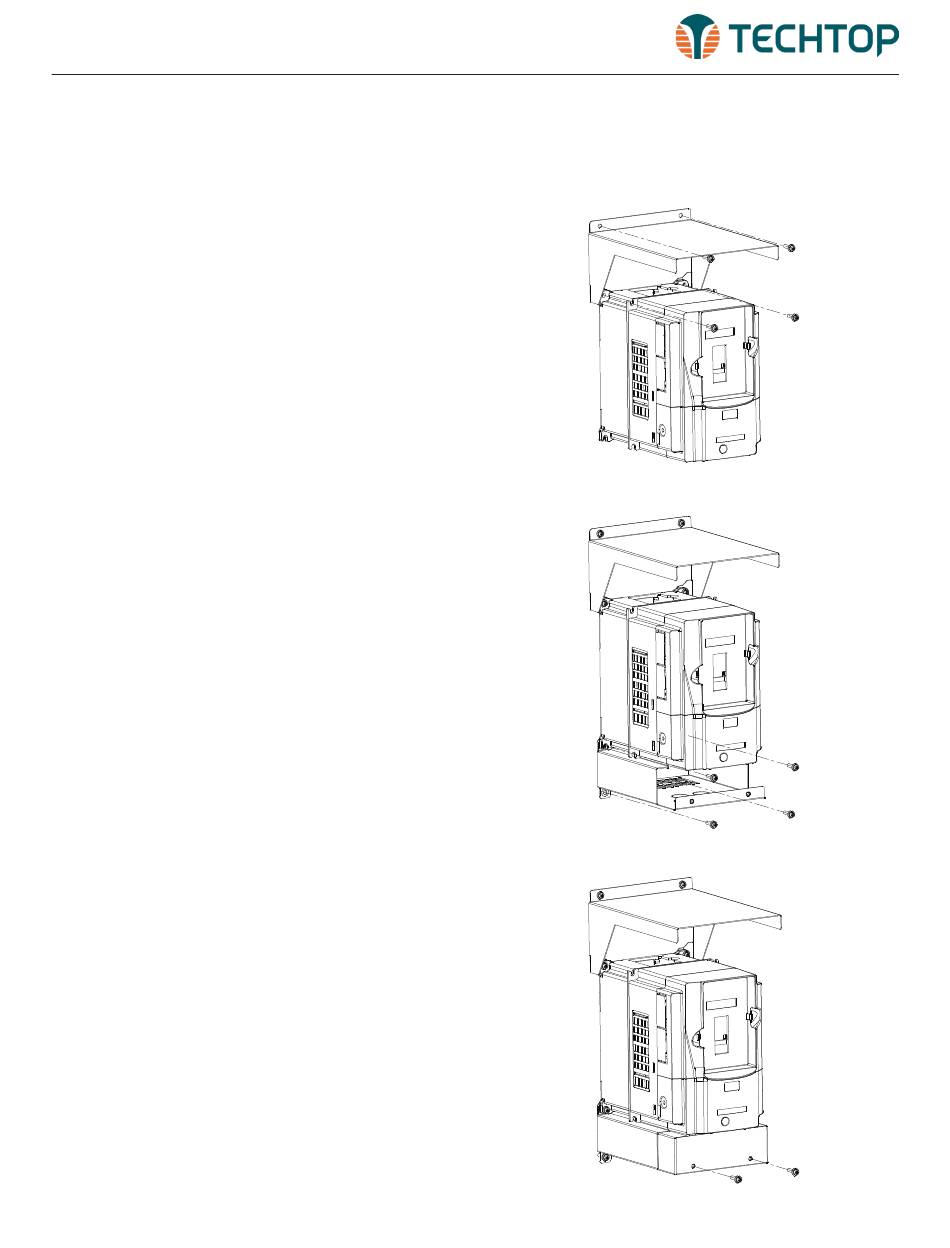

STEP 1

Place the drip-cover behind the drive and align
the mounting holes of the drip-cover with the
top mounting holes of the drive. Use the screws
for mounting the drive to secure the drive and
the drip cover to the mounting surface.
Screw quantity: 4
Screw specifications: Same as mounting screws

STEP 2

Align the bottom mounting holes of the drive
with the mounting holes of the junction box. Use
four screws to secure the junction box and drive
to the mounting surface.
Screw quantity: 4
Screw specifications: Same as mounting
screws

STEP 3

Mount the junction box face plate to the junction
box base. Align the holes of the junction box
face plate with the junction box base. Use two
screws to secure the junction box face plate to
the junction box base.
Screw quantity: 2
Screw specifications: M4x10
TECHTOP GENERAL PURPOSE VECTOR DRIVES, TD350 NEMA 1 KIT INSTALLATION GUIDE 1
