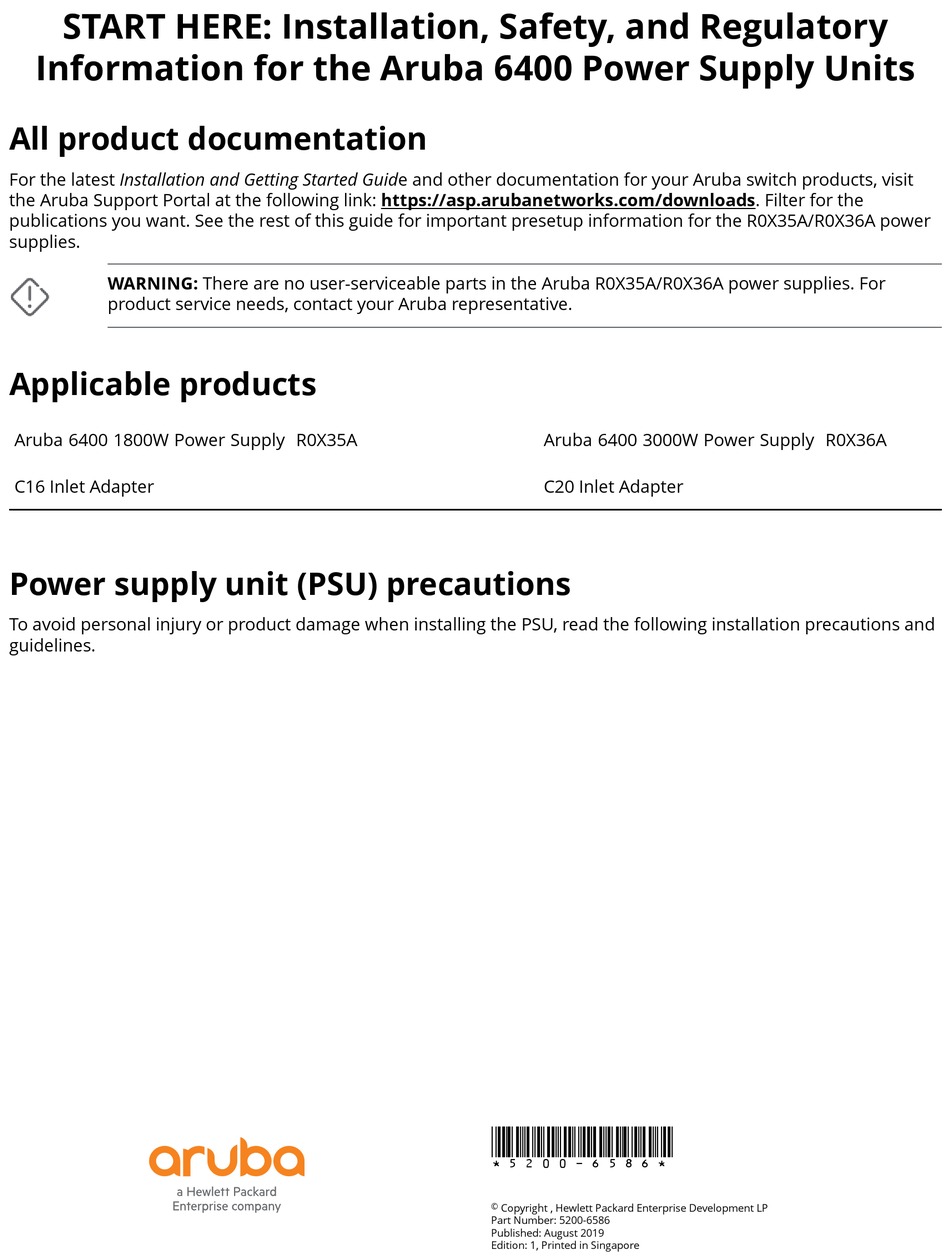

START HERE: Installation, Safety, and Regulatory
Information for the Aruba 6400 Power Supply Units
All product documentation
For the latest Installation and Getting Started Guide and other documentation for your Aruba switch products, visit
the Aruba Support Portal at the following link: https://asp.arubanetworks.com/downloads. Filter for the
publications you want. See the rest of this guide for important presetup information for the R0X35A/R0X36A power
supplies.
WARNING: There are no user-serviceable parts in the Aruba R0X35A/R0X36A power supplies. For
product service needs, contact your Aruba representative.
Applicable products
Aruba 6400 1800W Power Supply R0X35A
C16 Inlet Adapter
Power supply unit (PSU) precautions
To avoid personal injury or product damage when installing the PSU, read the following installation precautions and
guidelines.
Aruba 6400 3000W Power Supply R0X36A
C20 Inlet Adapter
*5200-6586*
©
Copyright , Hewlett Packard Enterprise Development LP
Part Number: 5200-6586
Published: August 2019
Edition: 1, Printed in Singapore
Advertisement
Related Manuals for Aruba 6400
Summary of Contents for Aruba 6400
- Page 1 Information for the Aruba 6400 Power Supply Units All product documentation For the latest Installation and Getting Started Guide and other documentation for your Aruba switch products, visit the Aruba Support Portal at the following link: https://asp.arubanetworks.com/downloads. Filter for the publications you want.
- Page 2 Aruba includes the power cords and inlet adapters intended for use with your Aruba 6400 switch. Different countries/regions may require different power cords. For a list of the power cords that apply to your Aruba 6400 switch, see the section that lists power cords and inlet adapters in the latest edition of the switch Installation and Getting Started Guide.
- Page 3 NOTE: For important safety, environmental, and regulatory information, see Safety and Compliance Information for Server, Storage, Power, Networking, and Rack Products, available at http://www.hpe.com/ support/Safety-Compliance-EnterpriseProducts. Table 1: Electrical information for Aruba modular power supplies using direct AC voltage Switch product SKU Maximum current per...
- Page 4 Safety and regulatory information for Aruba 6400 PSUs Item Range EN 60950-1:2006 +A11:2009 +A1:2010 Safety-EU: +A12:2011 +A2:2013 EN62368-1, Ed.2 IEC 60950-1:2005 Ed.2; Am 1:2009+A2:2013 Safety-World Wide: IEC62368-1, Ed. 2 IEC 60825-1:2014 (Applies to products with lasers) North American: UL60950-1, CSA 22.2 No 60950-1 UL62368-1 Ed.
- Page 5 Taiwan EMC warning Preview of installing the PSU NOTE: This section previews the steps for installing the Aruba 6400 power supplies. To find detailed installation steps, information on configuration tools, and other instructions and information, see the latest Installation and Getting Started Guide for your switch.
-
Page 6: Documentation Feedback
1. After the switch chassis is securely mounted, remove the bezel from the front panel. 2. Remove a power supply unit (PSU) slot cover from the front of the switch. 3. Slide a PSU into the uncovered PSU slot until it seats firmly in place, with the front of the PSU flush with the switch front panel.
