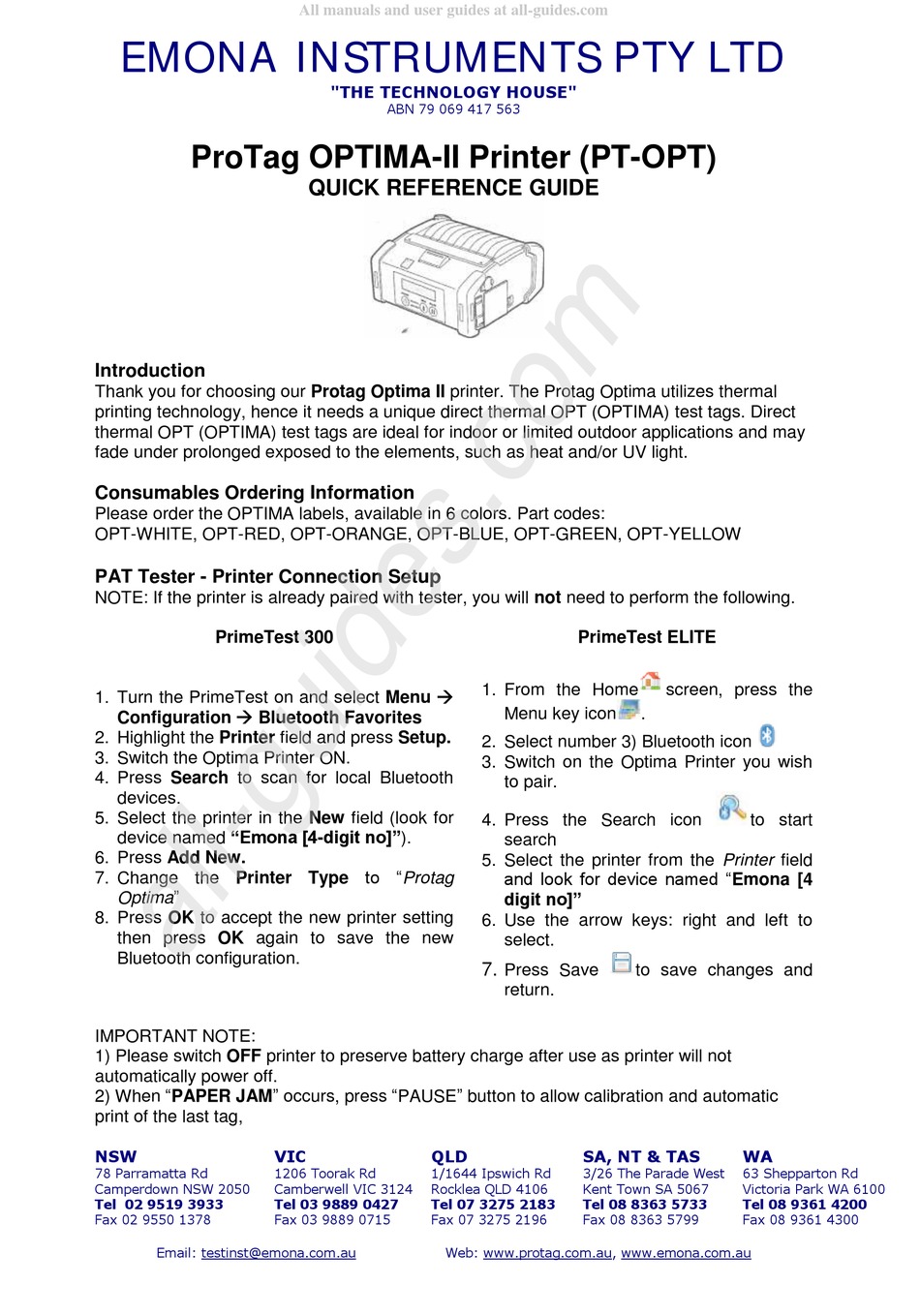

Emona Instruments ProTag OPTIMA-II Quick Reference Manual

EMONA INSTRUMENTS PTY LTD
ProTag OPTIMA-II Printer (PT-OPT)

Introduction

Thank you for choosing our Protag Optima II printer. The Protag Optima utilizes thermal
printing technology, hence it needs a unique direct thermal OPT (OPTIMA) test tags. Direct
thermal OPT (OPTIMA) test tags are ideal for indoor or limited outdoor applications and may
fade under prolonged exposed to the elements, such as heat and/or UV light.

Consumables Ordering Information

Please order the OPTIMA labels, available in 6 colors. Part codes:
OPT-WHITE, OPT-RED, OPT-ORANGE, OPT-BLUE, OPT-GREEN, OPT-YELLOW

PAT Tester - Printer Connection Setup

NOTE: If the printer is already paired with tester, you will not need to perform the following.
PrimeTest 300
1. Turn the PrimeTest on and select Menu 
Configuration  Bluetooth Favorites
2. Highlight the Printer field and press Setup.
3. Switch the Optima Printer ON.
4. Press Search to scan for local Bluetooth
devices.
5. Select the printer in the New field (look for
device named "Emona [4-digit no]").
6. Press Add New.
7. Change the Printer Type to "Protag
Optima"
8. Press OK to accept the new printer setting
then press OK again to save the new
Bluetooth configuration.
IMPORTANT NOTE:
1) Please switch OFF printer to preserve battery charge after use as printer will not
automatically power off.
2) When "PAPER JAM" occurs, press "PAUSE" button to allow calibration and automatic
print of the last tag,
NSW
78 Parramatta Rd
Camperdown NSW 2050
Tel 02 9519 3933
Fax 02 9550 1378
Email: testinst@emona.com.au
All manuals and user guides at all-guides.com
"THE TECHNOLOGY HOUSE"
ABN 79 069 417 563
QUICK REFERENCE GUIDE
VIC QLD
1206 Toorak Rd 1/1644 Ipswich Rd
Camberwell VIC 3124 Rocklea QLD 4106
Tel 03 9889 0427 Tel 07 3275 2183
Fax 03 9889 0715 Fax 07 3275 2196
PrimeTest ELITE
1. From the Home
Menu key icon
2. Select number 3) Bluetooth icon
3. Switch on the Optima Printer you wish
to pair.
4. Press the Search icon
search
5. Select the printer from the Printer field
and look for device named "Emona [4
digit no]"
6. Use the arrow keys: right and left to
select.
7.
Press Save
return.
SA, NT & TAS
3/26 The Parade West
Kent Town SA 5067
Tel 08 8363 5733
Fax 08 8363 5799
Web: www.protag.com.au, www.emona.com.au
screen, press the
.
to start
to save changes and
WA
63 Shepparton Rd
Victoria Park WA 6100
Tel 08 9361 4200
Fax 08 9361 4300
