Mania RECON Instructions

INSTRUCTIONS
RECON WILDLIFE CAMERA
PACKAGE CONTENTS
•
Trail cam
•
Strap
•
USB charging cable
•
USB to microSD adapter
•
Instruction manual
TECHNICAL SPECIFICATIONS
•
Image sensor: 3 MP color CMOS
•
Photo resolution: 12 MP
•
Video resolution: 1080p full HD @ 25 fps
•
Lens angle: 120°
•
Sensor range: 15 m
•
MAX microSD size: 32 GB (not included)
•
Power supply: 4 × AA battery (not included)
•
Water resistance: IP56
•
Standby time: 12 months
•
Size: 55 × 90 × 135 mm
•
Weight: 160 g

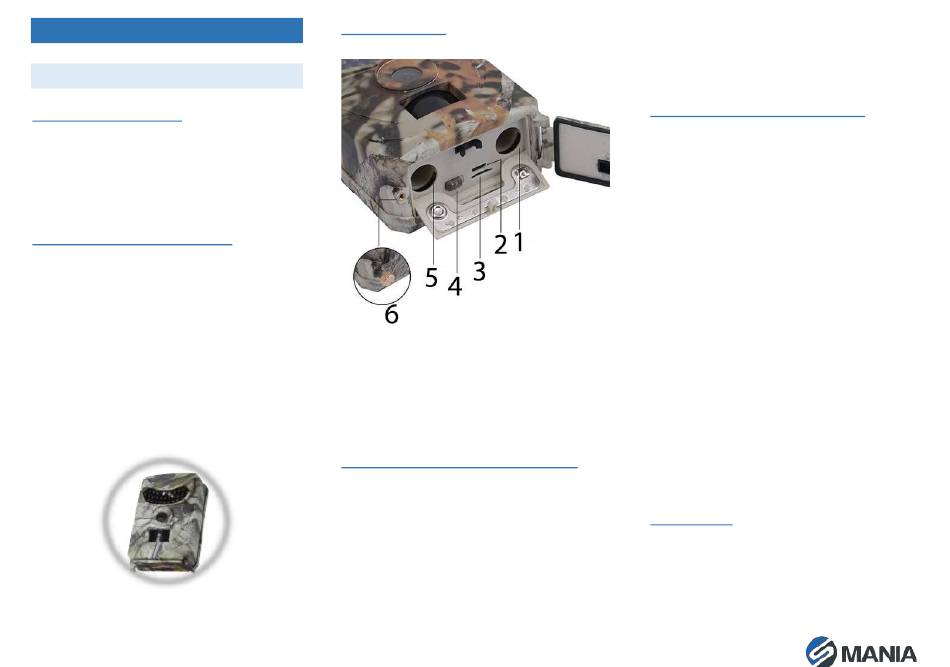

COMPONENTS
1. Battery compartment 1
2. Micro-USB power supply
3. MicroSD slot
4. ON/OFF switch
5. Battery compartment 2
6. Locking screw
HOW TO INSTALL THE BATTERIES
•
Open the hub at the bottom of the camera
by unscrewing the locking mechanism.
•
Press onto the battery compartment cover
to open it.
•
Insert two AA batteries (not included) into
each slot.
•
Make sure to check the polarity. It is
written on the metal part of the battery
compartment cover.
•
Close the cover.
HOW TO SET UP THE CAMERA
•
Insert a microSD (not included) into the
slot.
•
Insert the batteries or connect the micro-
USB cable to power supply at the bottom of
the camera – use the rubber cover.
•
Use the included strap to fasten the camera
to a desired location.
•
Turn the camera ON using the ON/OFF
switch.
•
The camera will take 3 pictures and record
10 seconds of video each time the sensors
detect movement in the detection range.
•
It enters standby mode until the next time
the sensor detects movement. It can
remain in standby mode up to 12 months.
•
To set the time and date of the recordings,
open a text file on your computer and write
the current date and time in it in the
following format: 2020-11-11 12:59:59
332Y. Name the file time.txt and save it to
the microSD card that you will use with the
camera.
WARNINGS
•
Only use the product for its intended
purpose.
•
Do not disassemble or modify in any way.
•
The product can only
temperatures from -10 to 70 °C.
operate in
