- Page 1 Owner’s Manual Model 880GPS GPS Attachement Forage Harvester 880GPS 6/22...
-
Page 2: Table Of Contents
Harvest Tec 880GPS Table of Contents PAGE Introduction Overview Installation of GPS Receiver & Harness Installation of GPS Receiver Installation of GPS Harness Setup Instructions Operating Instructions Converting Yield Date File PC Installation of Yield File Converter Program Converting Yield Data File... -
Page 3: Introduction
Harvest Tec system, and Harvest Tec’s yield mapping file converter program. Overview The Harvest Tec model 880GPS gathers WAAS information on the fly and sends it to the main processor. With this information the system creates a yield mapping file that will be stored within the processor on 600/665 systems. -
Page 4: Setup Instructions
Setup Instructions 1. Turn the control system on. After a few seconds the Main Menu screen should appear. Press Setup Mode, the Setup Mode screen will then appear. 2. Press Yield Mapping setup. a. Yield Mapping Setup will now be displayed. 3. -
Page 5: Converting Yield Date File
Converting Yield Data File PC Installation of Yield Data File Converter Program 1. Plug the USB flash provided in the 880 kit into the USB port on the computer. 2. The USB flash will have a zipped file on it and will be labeled ydConverterSetup-V1_0_0_0. a. -
Page 6: Converting Yield Data File
Converting Yield Data File The yield data file that was created on the USB flash while baling will need to be converted before it can be utilized in a yield mapping program. Start by double clicking on the yield mapping file converter Icon located on the computers desktop. -
Page 7: Parts Breakdown For Model 880Gps

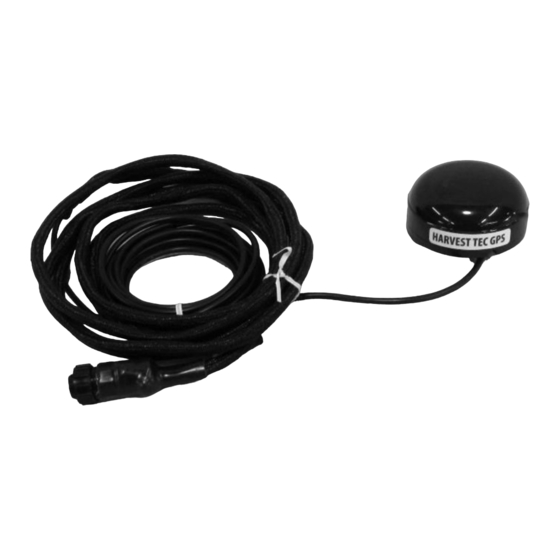

Parts Breakdown for Model 880GPS Description Part# GPS Receiver 006-6650GPS GPS Receiver Mount 001-2012GPS USB Converter File 006-5650USB Pin Out Star Wheel and Bale Rate Sensor connector on DCP Pin 1 Red +12V Power Pin 2 Black -12V Power Pin 3 Black... -
Page 8: Warranty
