FW TITANIUM Series Assembly Instructions

CUSTOM FOLDING WAGONS
Video Instructions: https://www.youtube.com/watch?v=RGTi01I9Z60
Safety Harness: https://www.youtube.com/watch?v=Y_CxX2JB5DQ

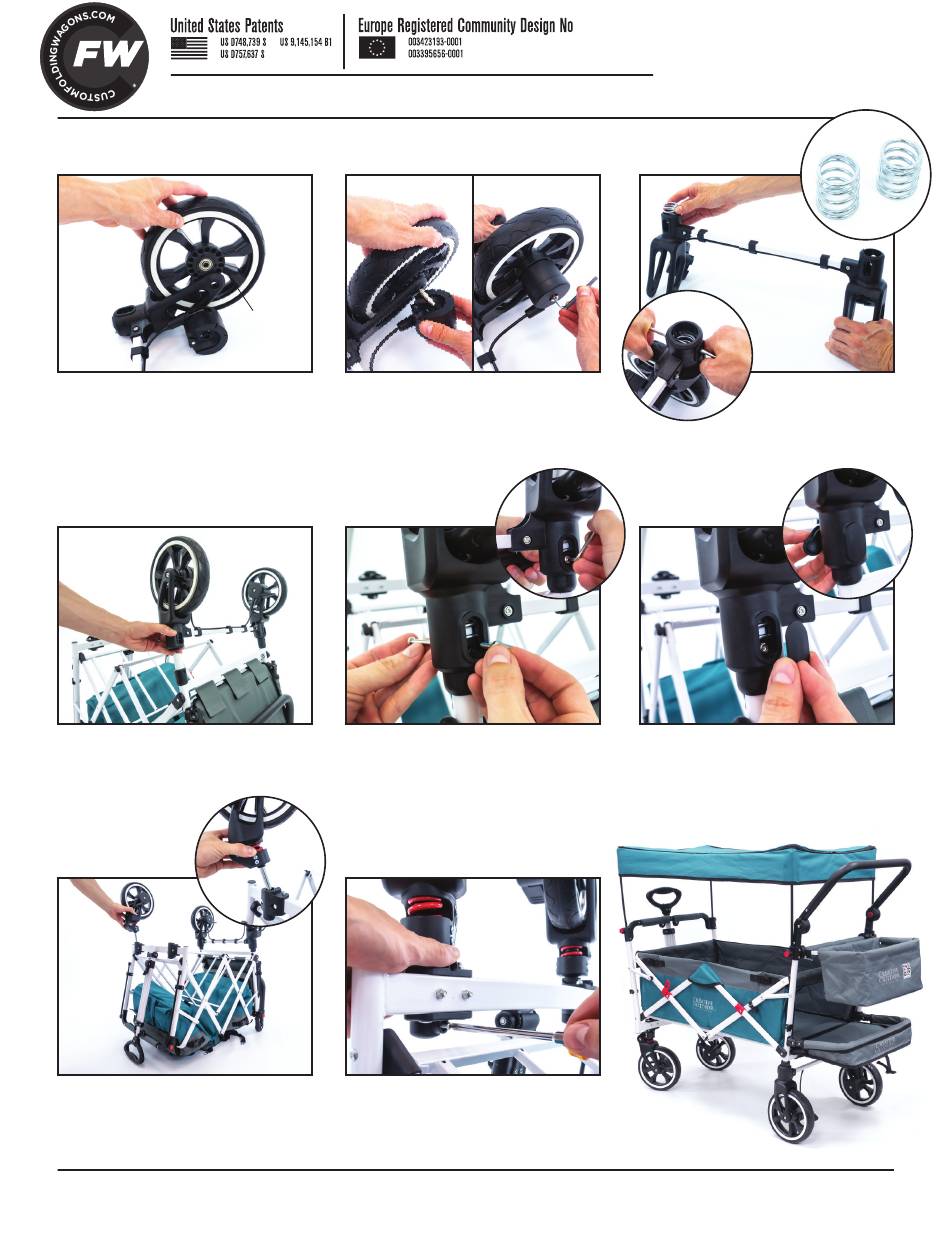

WAGON SET-UP INSTRUCTIONS
Step 1
Slide Rear Wheel into Rear Wheel
Bracket and line up the axle holes.
Make sure the inside of the wheel with all
of the holes for the brakes in the circular
pattern are pointed inward.
Step 4
Turn Wagon upside down on clean flat
surface and connect Rear Wheel Bracket
to Rear of Wagon Frame.
Step 7
Insert Front Wheels into Wagon Frame.
Be sure Red Spring is pointing toward
the rear and Brake Lever is pointed
inward toward center of Wagon.
HELPLINE: 1-949-381-7367
EMAIL: SALES@CUSTOMFOLDINGWAGONS.COM
Step 2
Holes
Facing
Inward
Insert Long Bolt through Rear Wheel
Bracket and Rear Wheel. Slide Rear
Brake onto Long Bolt and tighten Long
Bolt. Repeat for both Rear Wheels.
Step 5
Align bolt holes then insert Short Bolts
and tighten.
Step 8
Tighten set screw to secure Front
Wheel to Wagon Frame. Both sides.
TITANIUM SERIES
Step 3
Insert screwdriver through holes on
Rear Wheel Bracket and push down
to seat Springs.
Step 6
Cover all four holes with Caps.
ENJOY!!
CARE:
Use a damp cloth to clean. Do not use chemicals.
ASSEMBLY
INSTRUCTIONS
Insert Springs into
Rear Wheel Bracket
spring cups. Both sides.
MADE IN CHINA
