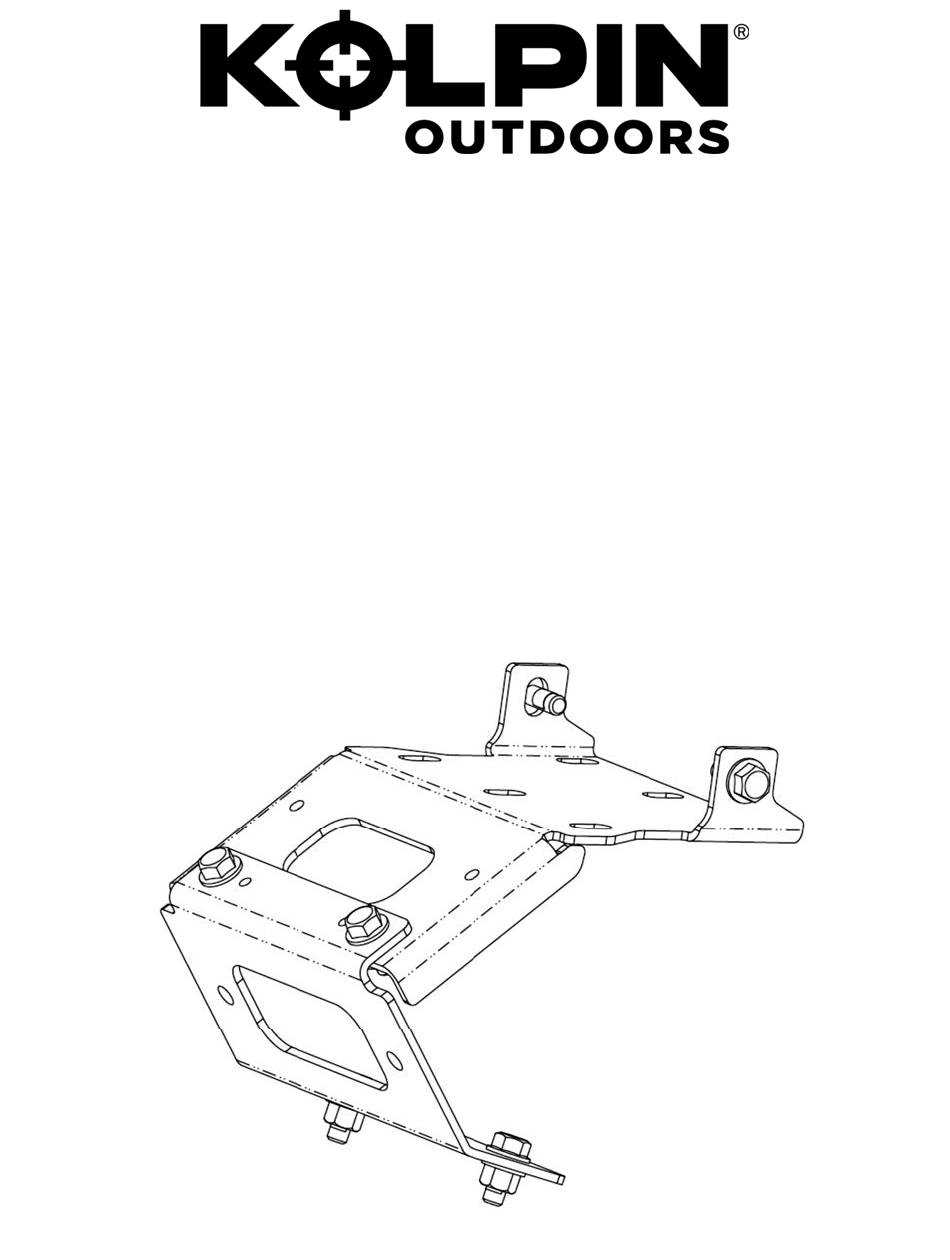

WINCH MOUNT KIT
FOR HONDA ATV
P/N 25-1270
ASSEMBLY / OWNERS MANUAL
Application
WINCH KIT NO. 25-9xxx
Before you begin, please read these instructions and check to be sure all parts and tools are
accounted for. The following instructions contain details required to install and service the contents
of this kit.
© 2020 Kolpin Outdoors Inc.
REV 00
Advertisement
Table of Contents
Summary of Contents for Kolpin Outdoors 25-1270
- Page 1 Before you begin, please read these instructions and check to be sure all parts and tools are accounted for. The following instructions contain details required to install and service the contents of this kit. © 2020 Kolpin Outdoors Inc. REV 00...
- Page 2 Do not use your winch or winch mount for towing. Do not shock load the winch, cable or winch mount. Keep fingers, hands and loose clothing away from roller fairlead and winch cable drum when in use. © 2020 Kolpin Outdoors Inc. REV 00...
-
Page 3: Kit Contents
Kit Contents: Item Qty Part Description Part Number Winch Mount Bracket Roller Bumper Mount Bracket Hex Bolt, Zinc Plated, M8-1.25 x 20mm Locknut, Zinc Plated, M8-1.25 Instruction Guide (not shown) © 2020 Kolpin Outdoors Inc. REV 00... -
Page 4: Before You Begin
Note: If any hardware is missing, do not return to the store. Call us to help, Toll Free 1-877-956-5746. Roller bracket (item #2) has pre-drilled holes for mounting Kolpin contactor (provided with winch kit) onto backside of bracket as shown in image to the right. © 2020 Kolpin Outdoors Inc. REV 00... - Page 5 Refer to the service manual for extra details. (See illustration 1-4). Ill. 1-4 Rubber grommets Front bumper tubing Ill. 1-3 © 2020 Kolpin Outdoors Inc. REV 00...
- Page 6 (See illustrations 1-6, 1-7 and Note, contactor (included with winch kit) is 1-8). shown mounted in optional location on roller bracket. 7. Tighten to specification. Ill. 1-8 8MM FASTENER TORQUE: 17 ft. lbs. (23 Nm) Ill. 1-7 © 2020 Kolpin Outdoors Inc. REV 00...
- Page 7 Tighten to M8 specification. (See illustrations 1-11, 1-12 and 1-13). Roller Ill. 1-10 Ill. 1-11 Ill. 1-12 8MM FASTENER TORQUE: 17 ft. lbs. (23 Nm) Ill. 1-13 © 2020 Kolpin Outdoors Inc. REV 00...
- Page 8 13. Tighten all fasteners to specifications. Ill. 1-16 Ill. 1-15 FRONT Plastic engine Lower OEM guard screws 8MM FASTENER TORQUE: 17 ft. lbs. (23 Nm) 6MM FASTENER TORQUE: 7 ft. lbs. (9.5 Nm) FRONT Ill. 1-17 © 2020 Kolpin Outdoors Inc. REV 00...
- Page 9 (-) cable to battery. 17. With the vehicle key in the ON position, check winch Bumper-rack for proper operation. mounting Ill. 1-18 18. Retighten all hardware after 30 minutes of riding. Ill. 1-19 Ill. 1-20 © 2020 Kolpin Outdoors Inc. REV 00...
-
Page 10: One Year Limited Warranty
Most hardware is general in nature and is easily obtained locally. Be sure to replace with minimum metric class 8.8 specification. Kolpin Outdoors, Inc. Telephone: (763)-478-5800 Toll Free: (877)-956-5746 Fax Number: (800)-245-7569 www.kolpin.com Email: customerservice@kolpin.com © 2020 Kolpin Outdoors Inc. REV 00...
