RHS 14ESS Quick Start Manual

The Deluxe Electronic Sports Starting System can be used as a portable public address system, a stand alone starting unit
with a choice of starting tones and options, or can be connected to various electronic timing systems to activate the timing.
The system is intended to replace the starting pistol for the starting of athletic and swimming events.
It provides the benefits of:
• Talk through public address facility with optional extensional speaker;
• Time keepers / competitors strobe light;
• Normally open or closed contacts to interface with a timing system if used;
• Safe and reliable to use in all weather conditions or in pool areas; and
• Portable (approx 4kg) and simple to setup and operate.
• Rechargeable batteries providing 10 -14 hours continuous operation
Starter
Button
PA Microphone

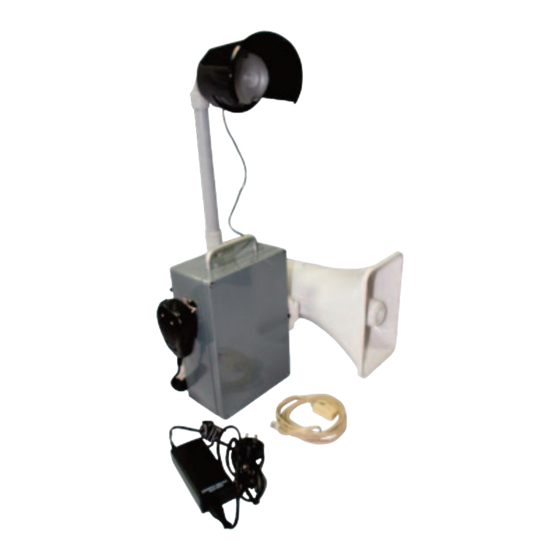

The Sports Starting System is shipped with the following items:
1. The electronic PA / Tone starting system housing and horn.
2. 2 x 12volt 3.3 - 3.4 AH sealed lead acid batteries depending on the battery manufacturer (Models include PS-1230,
NP3.2-12, UB1234, LC-R123R4P & ES3-12).
3. Microphone handpiece.
4. Strobe light assembly including LED module, cover, straight coupling, right angle coupling and length of 20mm
PVC conduit.
5. 3 metre microphone extension cable and inline coupler.
6. 12 Volt smart charger.
DELUXE ELECTRONIC SPORTS STARTING
SYSTEM - 14ESS
T: (03) 9870 1377 Free Call STD 1800 819 124 E: info@rhsports.com.au
Page 1
Strobe
Light
Adjustable
Strobe Height
Horn
Speaker
Extension
Microphone Lead
Charger
