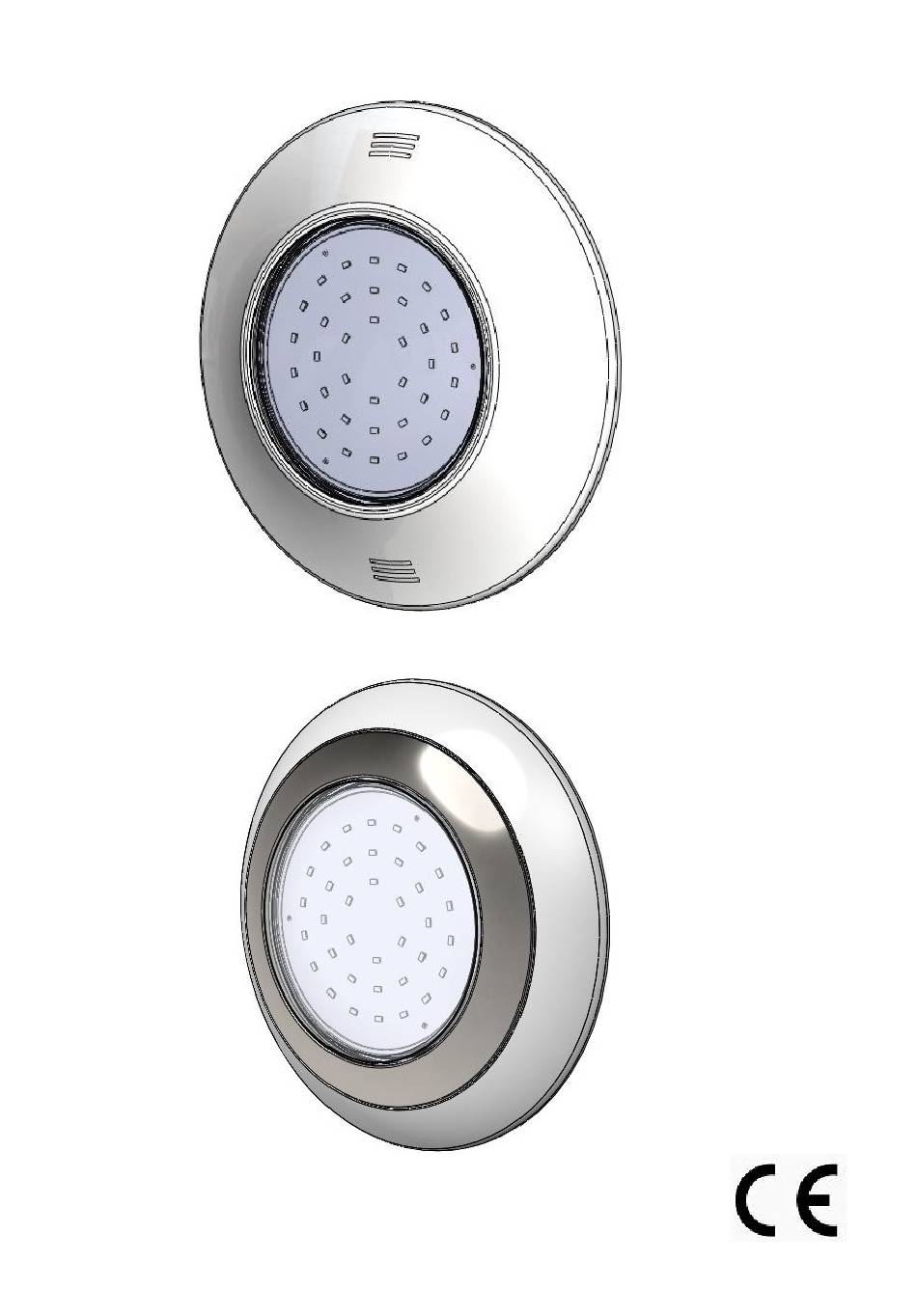

- Page 1 FLAT UNDERWATER LIGHT STANDARD SERIES I N STA LL A TI ON AND M AI N TE N A N CE MA NU A L...
-
Page 2: General Characteristics
ENGLISH I M PORTANT: The ins t ruction manua l you are holding inc l udes essen t ial informa t ion on the sa f e t y measures to implemented installa ti on star t- up. Therefore, installer we ll user must read the ins t ructions before beginning i nstallation and s t art-up. -
Page 3: Maintenance
4. ASSEMBLY: The floodlamp is supplied with 2.5m of cable. It should be inserted through the conduit body(Fig 4), leaving approximately 1.5m of cable in order to be able to remove the floodlamp to the border of the swimming pool if handing or lamp change is required(Fig 1). - Page 4 ENGLISH LED Concrete Flat UWL Stingray DESCRIPTION DESCRIPTION Face plate ring GB845 ST3.9*6 Clear lens Electrical cable 2.5mx1mm Silicon gasket Button (Optional for color led) Screw DIN 7981 2.9x9.5 Screw M4x12 Cable grand nut Cable grand nut Plastic ring Cable grand gasket Rear protection cover Conduit connector GB845F ST3.9*10...
- Page 5 ENGLISH LED Prefabricated Flat UWL Stingray DESCRIPTION DESCRIPTION Face plate ring White led 20W Clear lens White led 10W Silicon gasket Color led 20W Screw DIN 7981 2.9x9.5 Color led 10W Cable grand nut GB845 ST3.9*6 Plastic ring Electrical cable 2.5mx1mm Rear protection cover Button (Optional for color led) GB845F ST3.9*10...
- Page 6 ENGLISH LED Concrete Flat UWL Turtle DESCRIPTION DESCRIPTION Plastic face plate cover White led 20W Stainless steel face plate cover(optional) White led 10W Face plate ring Color led 20W Clear lens Color led 10W Silicon gasket GB845 ST3.9*6 Screw DIN 7981 2.9x9.5 Electrical cable 2.5mx1mm Cable grand nut Button (Optional for color led)
- Page 7 ENGLISH LED Prefabricated Flat UWL Turtle DESCRIPTION DESCRIPTION Plastic face plate cover White led 20W Stainless steel face plate cover(optional) Clear White led 10W Face plate ring Color led 20W lens Color led 10W Silicon gasket GB845 ST3.9*6 Screw DIN 7981 2.9x9.5 Electrical cable 2.5mx1mm Cable grand nut Button (Optional for color led)
-
Page 10: Technical Characteristics
TECHNICAL CHARACTERISTICS DESCRIPTION STANDARD Rated voltage Current suply LED 12V AC 20 W Power LED 12V AC 10 W Protecti o n CLASE III IPX8 USED ONLY WITH SECURIY TRANSFORMER THE UNDERWATER LIGHT NEVER TO BE SWITCHED O N IF IT IS NOT SUBMERGED MA-0083 REV0 ...
