Quick Reference Guide
Version 1.0
Controller
Satloc GPSteer V1.0
Lightbar: None
GPS:WAAS
MemRemain:25.84 hrs
Swath Width:20.0 ft
Connector Cables
GPSteer Quick Reference Guide
Part Number: 875-0140-000

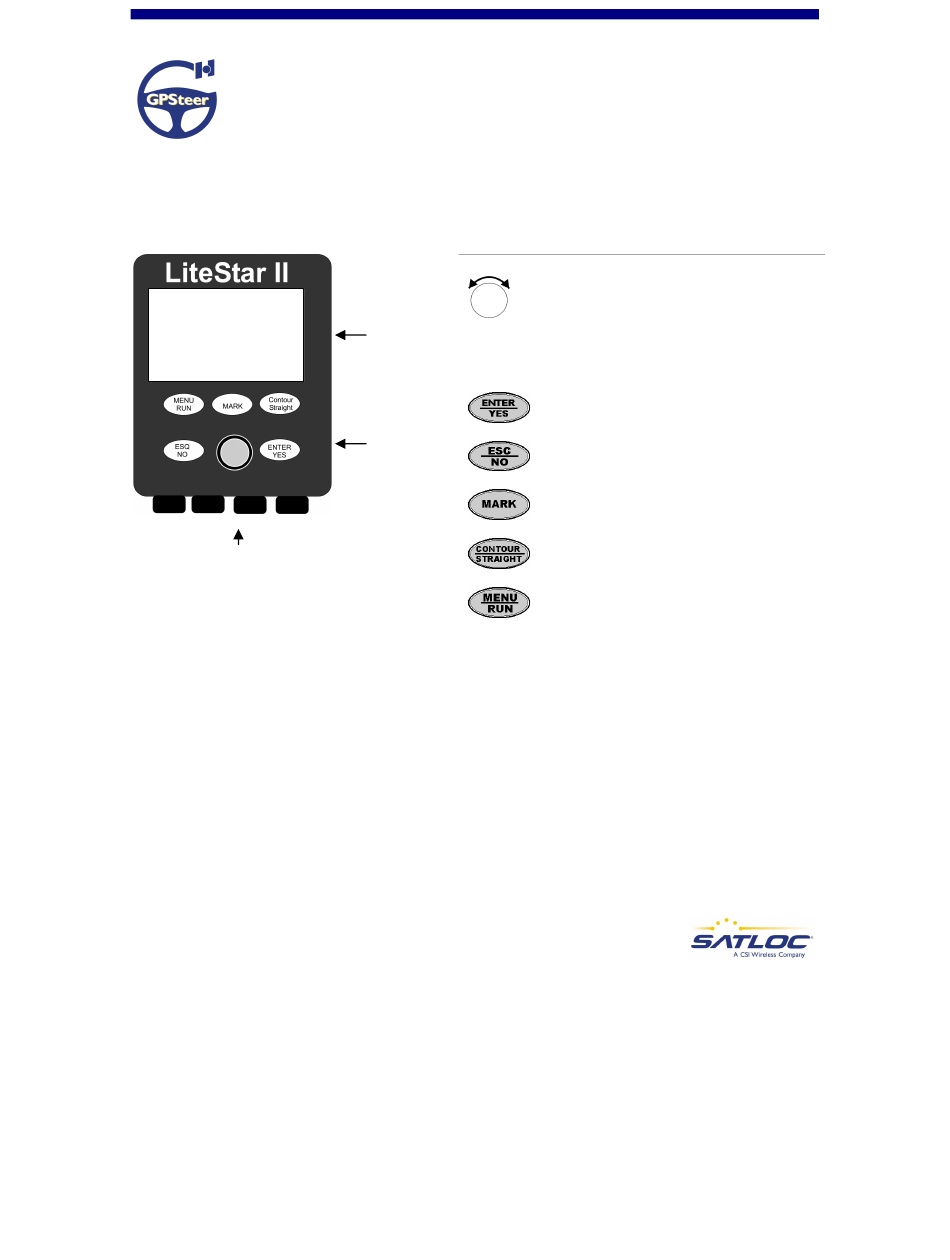

How to: Using the Controller
Display
Screen
General
Function
Buttons
Rotary dial – scroll up and down the
display screen menu items. Scroll
through field options when entering data.
Scroll left or right to manually adjust the
swath line heading (Skew) or position
(Offset).
Enter/Yes – save information in the
system.
Esc/No - close a display screen without
saving information.
Mark –
Future function
– set or
return to a navigation mark or waypoint.
Straight/Contour – switch between
Straight and Contour mode.
Menu/Run – press to toggle between
Menu mode and Run mode. Menu mode
allows you to change settings; Run mode
provides guidance.

Advertisement

loading
Need help?

Need help?

Do you have a question about the SATLOC GPSteer LiteStar II and is the answer not in the manual?

Questions and answers

Subscribe to Our Youtube Channel

Summary of Contents for CSI Wireless SATLOC GPSteer LiteStar II

  • Page 1 Quick Reference Guide Version 1.0 Controller How to: Using the Controller Rotary dial – scroll up and down the display screen menu items. Scroll Display Satloc GPSteer V1.0 Lightbar: None Screen through field options when entering data. GPS:WAAS Scroll left or right to manually adjust the MemRemain:25.84 hrs swath line heading (Skew) or position Swath Width:20.0 ft...

  • Page 2: Quick Start

    Quick Start Note: In Contour guidance, make sure spray is ON when setting A and B points. To switch from Contour to Straight guidance, press the key at any time while in Run mode. How to: Using GPSteer Turn on power. You will see the Satloc GPSteer V.1.0 Lightbar: None start-up screen.
  • Page 3 Straight 000 Apply: Off GPS:OK Drive to point A and press Steer: On Type: Skew to select A. Ready for A 0.00 Drive to point B and press Straight 000 Apply: Off GPS:OK Steer: On to select B. Type: Skew Ready for B 0.00 Straight 000...
  • Page 4 Adjusting Your Position GPSteer precisely bases its guidance on the swath line you set using the A|B line and your entered swath width. However, you may need to make position adjustments due to natural hazards, such as a stream cutting through your field.

  • Page 5: Starting A New Field

    Starting a New Field How to: Starting a New Field Straight 000 Menu Press to access the New AB Line Contour Mode main menu. Next Field Swath Setup Select Next Field. System 0.00 Status Disp Warning! Selecting Next Field will erase the old field. Proceed with entering your A and B points and driving the new field.
  • Page 6 Settings How to: Changing Settings Straight 000 Menu New AB Line Erases old A|B line and returns display to New AB Line “Ready for A.” Contour Mode Next Field Swath Setup Contour Selects Contour mode and returns display to System Mode guidance screen.
  • Page 7 Menu Map GPSteer Quick Reference Guide Part Number: 875-0140-000...
