- Page 1 VHEHL-30 Fanless Mini PC...
- Page 2 Copyright © 2022 Shenzhen Maxtang Computer Co., Ltd. All rights reserved. No part of this publication may be reproduced, copied, stored in a retrieval system, translated into any language, or transmitted in any form or by any means, electronic, mechanical, photocopying, or otherwise, without the prior written consent of Shenzhen Maxtang Computer Co., Ltd (hereinafter referred to as “Maxtang”).
- Page 3 Shenzhen Maxtang Computer Co., Ltd VHEHL-30 User Manual (Version 2.0) Version: Description Issue Date: V2.0 Initial Version 2022/02/08...
-
Page 4: Table Of Contents
Shenzhen Maxtang Computer Co., Ltd Contents Chapter 1 Product Introduction ......................4 1.1 Brief Introduction ......................4 1.2 Parameters ........................4 1.3 Connector Diagram ......................5 1.4 I/O Interface ........................6 Chapter 2 Hardware ................7 2.1 Installations ........................7 2.2 Jumper Setting ........................7 2.3 Memory Slots ........................7 2.4 Display Interfaces ......................8... - Page 5 Shenzhen Maxtang Computer Co., Ltd 3.5 Security..........................21 3.6 Boot ............................22 3.7 Save & Exit ..........................23...
-
Page 6: Chapter 1 Product Introduction

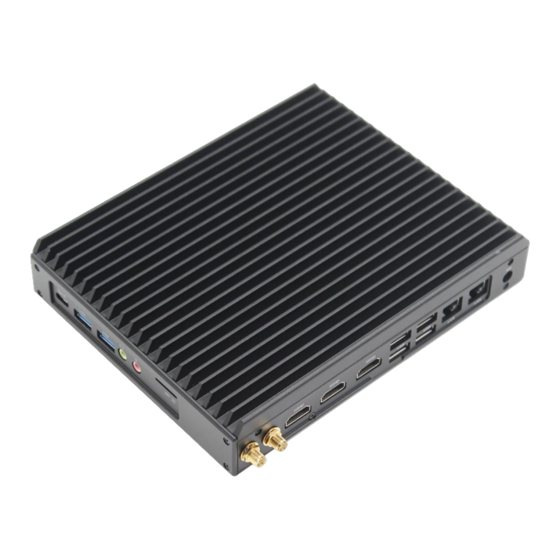

Shenzhen Maxtang Computer Co., Ltd Chapter 1 Product Introduction 1.1 Brief Introduction The VHEHL-30 is a compact fanless mini pc based on the Intel Elkhart Lake platform and features a small form factor, low power consumption, and high performance. 1.2 Parameters CPU: Intel®... -
Page 7: Connector Diagram
Shenzhen Maxtang Computer Co., Ltd 1.3 Connector Diagram... -
Page 8: I/O Interface
Shenzhen Maxtang Computer Co., Ltd 1.4 I/O Interface... -
Page 9: Chapter 2 Hardware
Chapter 2 Hardware 2.1 Installations Please refer to the following steps for installations: Read the user manual carefully to make sure all the adjustments on the VHEHL-30 are correct. Installing the Memory: ⚫ Press the ejector tab of the memory slot outwards with your fingertips. -
Page 10: Display Interfaces
Shenzhen Maxtang Computer Co., Ltd 2.4 Display Interfaces The board features Integrated Intel UHD graphics, supports 3xHDMI2.0 standard interface, and 4K support at 60Hz. 2.5 Storage 1x M.2 Key M for 2280 NVMe(x2)/SATA SSD; 1x M.2 Key B for 2242/2280 SATA SSD or 4G module with standard Micro-SIM slot. -
Page 11: Board Power Supply
Shenzhen Maxtang Computer Co., Ltd RTS# (NC) (NC) CTS# (NC) (NC) (NC) (NC) 2.10 Board Power Supply The board supports 12V DC-in and 12V-30V optional for power supply. 2.11 CPU Fan Socket The board provides a CPU fan socket for cooling. Default power voltage: 5V. -
Page 12: Chapter 3 Bios Setup
Shenzhen Maxtang Computer Co., Ltd Chapter 3 BIOS Setup 3.1 Entering the BIOS Turn on the computer and press <Delete> entering the BIOS After the computer is turned on, keep pressing F11, select enter Setup BIOS Hotkeys: F9: Restore to Factory setting. -
Page 13: Advanced Settings
Shenzhen Maxtang Computer Co., Ltd 3.3 Advanced Settings Select any of the items in the left frame of the screen. The advanced sections allow you to configure, improve and set up system features according to the preference of the CPU Configuration. All Advanced BIOS Setup options are described as follows. -
Page 14: Cpu-Power Management Control
Shenzhen Maxtang Computer Co., Ltd 3.3.2.1 CPU-Power Management Control Intel® Speedstep®(TM): Enhanced Intel SpeedStep® Technology enables the operating system to control multiple frequencies and voltage points for optimal performance and power efficiency. Intel® Speed Shift Technology: An energy-efficient frequency control method by the hardware rather than relying on OS control. -
Page 15: Gt-Power Management Control
Shenzhen Maxtang Computer Co., Ltd 3.3.2.2 GT-Power Management Control Maximum GT frequency： Maximum GT Frequency, Default max frequency. Disable Turbo GT frequency： Disable Turbo GT Frequency mode, Default disabled. 3.3.3 Thermal Configuration... -
Page 16: Acpi Settings
Shenzhen Maxtang Computer Co., Ltd Enable All Thermal Functions CPU Thermal Configuration: Unlocks the temperature setting, the “Tcc Activation Offset” is the temperature adjustment option, the highest temperature is 105°C. Change the temperature by minus the number of degrees you wish to change. -
Page 17: Super Io Configuration
Shenzhen Maxtang Computer Co., Ltd 3.3.5 Super IO Configuration Serial Port 1 Configuration Serial Port: Enable or disable serial port (COM). Device Setting (Read-only): Displays serial ports’ interrupt and location. Change Setting: Change serial port settings and suggest setting “Auto” as default. -
Page 18: Hardware Monitor
Shenzhen Maxtang Computer Co., Ltd 3.3.6 Hardware Monitor PC Health Status The PC health status displays CPU temperature, system temperature, fan speed, and other relevant voltage values. The above parameters have a certain range, and the system cannot run beyond these ranges. -
Page 19: Watch Dog Configuration
Shenzhen Maxtang Computer Co., Ltd 3.3.7 Watch Dog Configuration Watch Dog Configuration WDT Timeout Mode select: Minute or Second 3.3.8 S5 RTC Wake Settings Wake system From S5: timing boot settings, disabled by default. Fixed Time: Select Fixed Time and the system will wake on the Hr: Min: Sec specified. -
Page 20: Usb Configuration
Shenzhen Maxtang Computer Co., Ltd 3.3.9 USB Configuration Legacy USB Support Enable Legacy USB support. Disables legacy support if no USB devices are connected. Select enable will keep USB devices available under UEFI’s support. XHCI Hand-off A workaround for OS without XHCI hand-off support. The XHCI ownership change should be claimed by the USB XCHI driver. -
Page 21: Network Stack Configuration
Shenzhen Maxtang Computer Co., Ltd 3.3.10 Network Stack Configuration Network Stack PXE Network boot setting, disabled by default. 3.3.11 NVME Configuration The capacity and model of the SSD will be displayed under the option after the NVMe protocol SSD has... -
Page 22: Chipset
Shenzhen Maxtang Computer Co., Ltd 3.4 Chipset Select the chipset tab from the setup screen to enter the chipset BIOS Setup screen. System Agent (SA) Configuration: Northbridge configuration options, including video memory, display devices, and other options. PCH-IO Configuration: Southbridge configuration options, including hard disk, sound card equipment, and... -
Page 23: State After G3
Shenzhen Maxtang Computer Co., Ltd 3.4.1 State After G3 State After G3 is set to S0 State (auto-start after power-on) 3.5 Security Administrator Password: Set the Administrator Password. User Password: Set User Password. Secure Boot: Secure boot... - Page 24 Shenzhen Maxtang Computer Co., Ltd 3.6 Boot Setup Prompt Timeout: Number of seconds that the firmware will wait before initiating the original default boot selection. A value of 0 indicates that the default boot selection is to be initiated immediately on boot. A value of 65535(0xFFFF) indicates that firmware will wait for user input before booting.
- Page 25 Shenzhen Maxtang Computer Co., Ltd 3.7 Save & Exit Save Changes and Exit: Exit the system setup after saving the changes and continue to start the computer. Discard Changes and Exit: Exit the system setup without saving any changes and continue to start the computer.
