Summary of Contents for Door Entry Direct DC260

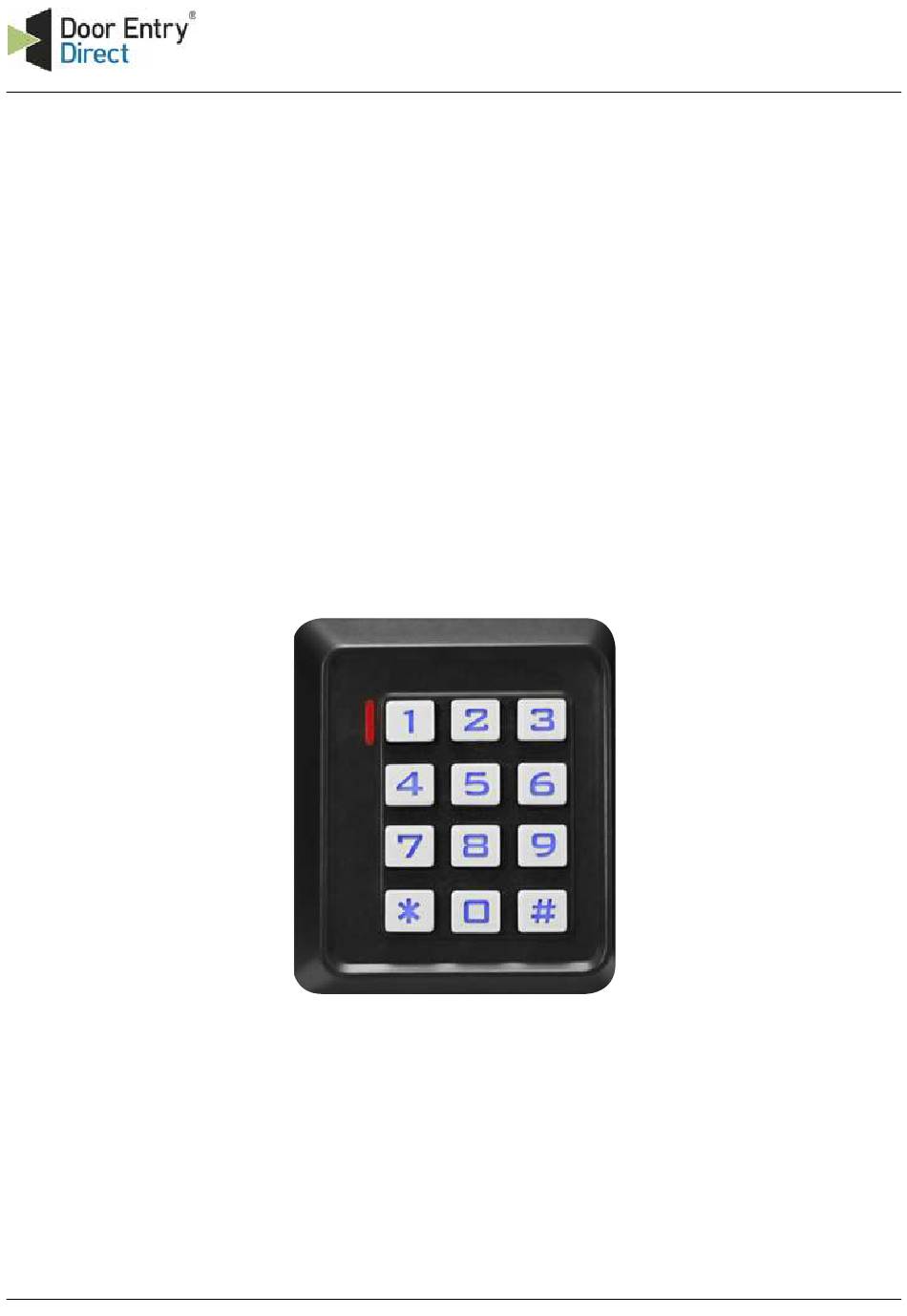

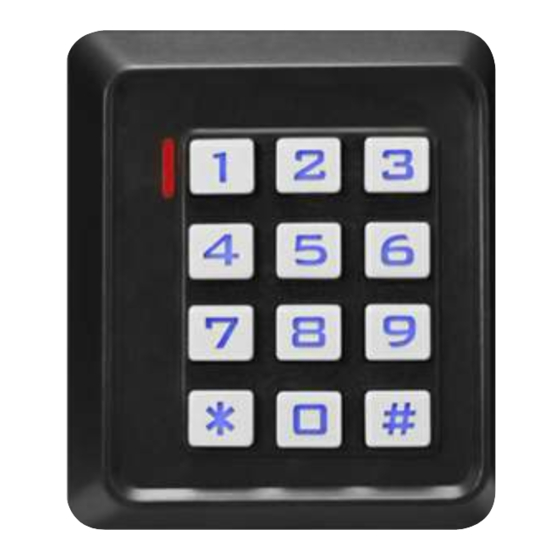

- Page 1 Unit 1, AMC Business Park t : 0208 621 6210 12 Cumberland Avenue e : sales@doorentrydirect.com Park Royal, London, NW10 7QL w : www.doorentrydirect.com Installation Guide DC260 - stand alone access control unit for 2000 users...
- Page 2 1 Locating the control unit 2 Connecting the reader The DC260 can control access both in and out of the The DC260 control unit should be fitted close to the door through which you wish to control access. It should be controlled door when using the built-in "EXIT"...
- Page 3 4 Locking Devices The lock release should match the supply input and have lock suppressor connected directly across its terminals (as shown & supplied). Locking - Fail locked N/C Orange COM Purple N/O Blue Black GND Red +12V DC Brown D_IN Yellow OPEN Grey ALARM White D1...
- Page 4 5 Break Glass If the controlled door is on a fire escape route, you should fit fail safe locking devices and a breaking glass unit for emergency exit N/C Orange COM Purple N/O Blue Black GND Red +12V DC Brown D_IN Yellow OPEN Grey ALARM White D1...
- Page 5 6 Power Supply With no locks connected, DC260 Access Control Unit power consumption is 12V DC 25mA (quiescent ) and 60mA (operating). Maximum power available for lock (from power supply provided) is 12V DC 1A (continuous). Maximum lock relay contact rating is 24V DC 2A.
- Page 6 Re-enter the new programming code entered above at step b. followed again by “ ”. d. The new programming code is set. To exit programming mode press “ ”. Appendix DC260 - stand alone access control unit for 2000 users contents of kits code KDC260/08 KDC260PC...
