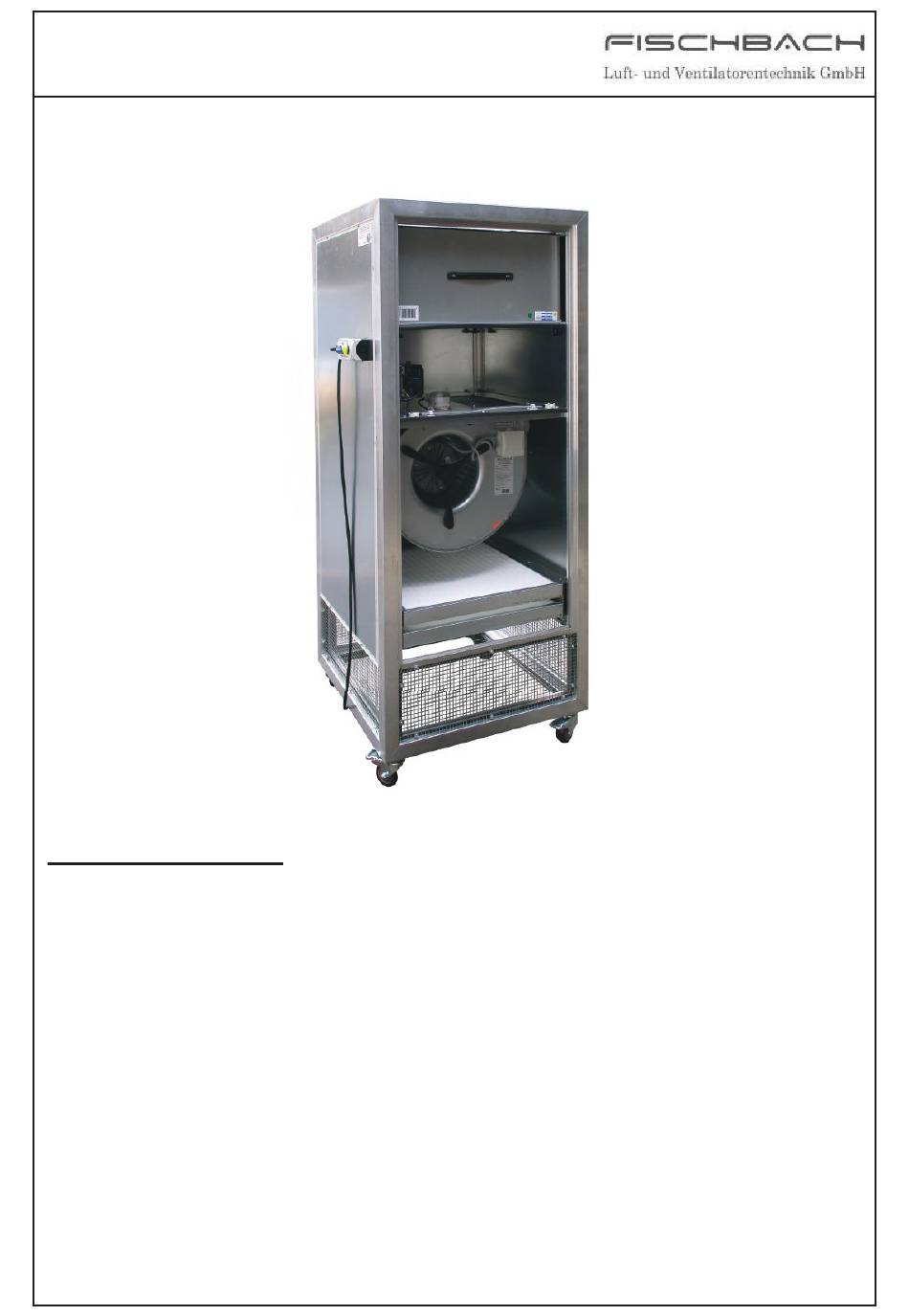

The AIR CLEANER MODULE LR ... / LRF... is equipped with a FISCHBACH-COMPACT-
FAN with FISCHBACH-EC-Motor.
The AIR CLEANER MODULE LR ... / LRF ... is equipped with the following fi lters:
-
Hepa14 fi lter according to DIN EN 1822 (fi lters particles with a degree of separation of
99.995% at a particle size of 0.3 µm)
EPM1 55% (F7)
-
-
EPM10 75% (M5)
The housing frame is a special construction made of stable aluminium composite profi le.
The galvanized,double-shell side panels (41 mm thick) are fl ush recessed in the housing
frame. Side panel insulation made of mineral fi bre wool - non-combustible - with high trans-
mission thermal resistance and high sound insulation.
AIR-CLEANER
LR... / LRF...
BAL LR.../ LRF...
1
Advertisement
Table of Contents
Summary of Contents for FISCHBACH LR Series
- Page 1 Series: AIR-CLEANER LR... / LRF... Technical description The AIR CLEANER MODULE LR ... / LRF... is equipped with a FISCHBACH-COMPACT- FAN with FISCHBACH-EC-Motor. The AIR CLEANER MODULE LR ... / LRF ... is equipped with the following fi lters: Hepa14 fi lter according to DIN EN 1822 (fi lters particles with a degree of separation of 99.995% at a particle size of 0.3 µm) EPM1 55% (F7) EPM10 75% (M5) The housing frame is a special construction made of stable aluminium composite profi...
- Page 2 / other objects 1m maintain minimum distance to electrical devices Recommendation: For best results please place the FISCHBACH Air-Cleaner in the middle of the longest side of the room on the wall. Commissioning make sure that the ON/OFF-switch is in the OFF-position plug in the power plug (230V~) switch the ON/OFF-switch set the required flow rate with the rotary control according to the Pst-V-diagram (inclu- ded in the respective data sheet) Function Critical filter contamination is indicated on the FISCHBACH control unit by the yellow indicator light. Adjust the volume flow according to the diagram „Volumen flow with filter clean - dirty“ (included in the respective data sheet). When the inspection panel is opened during operation, the motor switches off automatically! Maintenance Before carrying out maintenance work the following steps has to be carried out switch off the device pull the main plugs wait untilthe impeller stops (approx. 30s) open the inspection panel with the enclosed Allen key and take it out with both hands BAL LR.../ LRF...
- Page 3 Series: AIR-CLEANER LR... / LRF... The fi lters have to be changed regularly. For this purpose, the EPM fi lters are pulled out as shown in Fig. fi lter change Before the Hepa FILTER can be pulled out, the 4 star knob screws have to be loosened. We recommend to change the pre-fi lters EPM1 55% and EPM10 75% every 6 months, the HEPA14 fi lter every 12 months. to change the fi lters, disposable gloves and medical mouth-nose cover must be worn to prevent infection, briefl y heat the used fi lters to 100°C or spray them with alcohol or washing-up liquid and leave them to work for 10 minutes when inserting the new EPM fi lter, the following has to be observed: the arrow on the fi...
