Milestone VITELI Assembly Instructions Manual

31" vanity cabinet
Hide thumbs

Advertisement

Quick Links

Download this manual

Advertisement

loading
Need help?

Need help?

Do you have a question about the VITELI and is the answer not in the manual?

Questions and answers

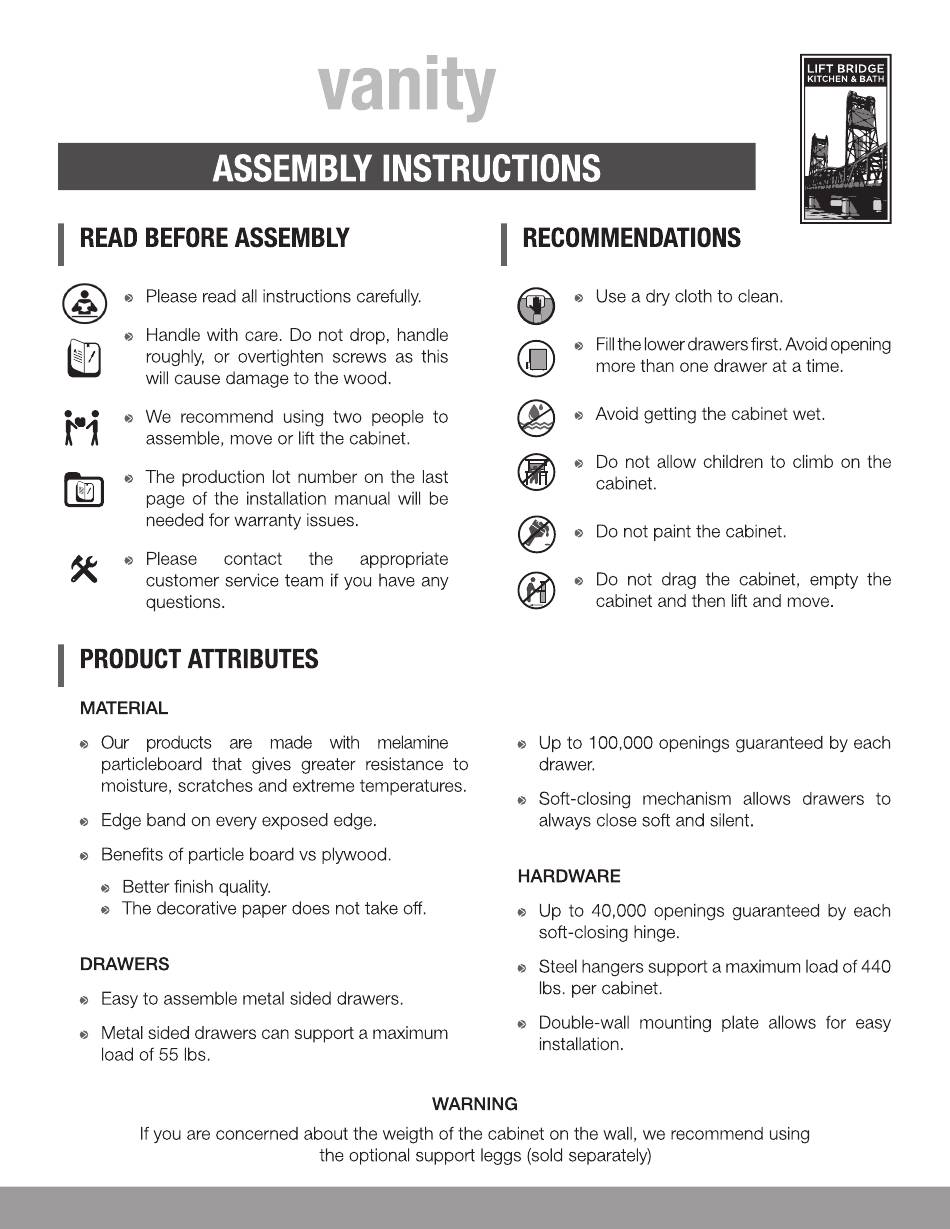

Summary of Contents for Milestone VITELI

  • Page 4: Tools Required

    PLEASE READ THE INSTRUCTIONS CAREFULLY BEFORE BEGINNING THE ASSEMBLY 31" VITELI VANITY CABINET 50200 CAUTION: ASSEMBLE THE UNIT IN A FLAT AREA THIS CABINET CAN BE ASSEMBLED TOOLS INCLUDED QTY. RIGHT OR LEFT. SINK SINK (NOT INSTALLED) (NOT INSTALLED) ALLLEN WRENCH HARDWARE INCLUDED QTY.
  • Page 5 ASSEMBLY INSTRUCTIONS RIGHT WAY INSTALL PINS PLASTIC PLASTIC INSTALL CABINET PROFILES AND HANGERS LEFT CABINET HANGER THE WHEEL SHOULD FACE THE FRONT OF THE CABINET AND DOWN. THE WHEEL SHOULD FACE THE FRONT OF THE CABINET AND DOWN. APPLY PRESSURRE TO THE HANGERS TO FIT OR USE A RUBBER HAMMER BY GIVING LIGHT BLOWS...
  • Page 6 ASSEMBLY INSTRUCTIONS INSTALL SOFT-CLOSING MECHANISM USE SCREWS FOR SOFT- CLOSING MECHANISM NOTE: THE SOFT-CLOSING MECHANISMS ARE INSTALLED IN CABINET PIECE #5. INSTALL PIECE LSP-2-3 Cam adjustment NOTE: REMEMBER TO ASSEMBLE THE CABINET BETWEEN TWO OR MORE PEOPLE. 50200 - 3 of 27...
  • Page 7 ASSEMBLY INSTRUCTIONS INSTALL PIECE 4 Cam adjustment NOTE: REMEMBER TO ASSEMBLE THE CABINET BETWEEN TWO OR MORE PEOPLE. INSTALL PIECE 5 USE CONFIRMAT SCREWS NOTE: REMEMBER TO ASSEMBLE THE CABINET BETWEEN TWO OR MORE PEOPLE. 50200 - 4 of 27...
  • Page 8 ASSEMBLY INSTRUCTIONS INSTALL PIECE 6 HOLD PIECE 6 UNTIL PIECE RSP IS ASSEMBLED Cam adjustment NOTA: NOTE: REMEMBER TO ASSEMBLE THE CABINET BETWEEN TWO OR MORE PEOPLE. INSTALL PIECE 7 HOLD PIECES 6-7 UNTIL PIECE RSP IS ASSEMBLED Cam adjustment NOTE: REMEMBER TO ASSEMBLE THE CABINET BETWEEN TWO OR MORE PEOPLE.
  • Page 9 ASSEMBLY INSTRUCTIONS INSTALL PIECE 8 Cam adjustment HOLD PIECES 6-7-8 UNTIL PIECE RSP IS ASSEMBLED INSTALL PIECE RSP WITH PIECES 2-3-4-6-7 AND 8 Cam adjustment 50200 - 6 of 27...
  • Page 10 ASSEMBLY INSTRUCTIONS INSTALL SCREWS TO PIECE 2 BELOW PIECE 4 USE LARGE SELF DRILLING SCREWS LIFT THE CABINET CAUTION: TWO PEOPLE ARE NEEDED TO SAFELY LIFT THE CABINET. LIFT THE CABINET 50200 - 7 of 27...

  • Page 11: Rear View

    ASSEMBLY INSTRUCTIONS INSTALL PIECE 10 REAR VIEW USE SMALL SELF DRILLING SCREWS ASSEMBLE PIECES 11-12 USE LARGE SELF DRILLING SCREWS NOTE: REMEMBER TO ASSEMBLE THE CABINET BETWEEN TWO OR MORE PEOPLE. 50200 - 8 of 27...
  • Page 12 ASSEMBLY INSTRUCTIONS INSTALL METAL SIDE DRAWERS USE SCREWS FOR FIT THE METAL SIDE METAL SIDE DRAWERS AND SCREW DRAWERS INSTALL SOFT-CLOSING MECHANISM 50200 - 9 of 27...
  • Page 13 ASSEMBLY INSTRUCTIONS INSTALL CLIP FRONT FIXING BRACKET LEFT/RIGHT APPLY PRESSURE TO THE BRACKETS TO FIT ASSEMBLE UPPER AND LOWER DRAWERS LOCK DOWN THE METAL SIDE DRAWER WITH THE FRONT FIXING BRACKET NOTE: MAKE SURE THAT THERE IS NO SPACE BETWEEN PIECE 11-13. 50200 - 10 of 27...
  • Page 14 ASSEMBLY INSTRUCTIONS INSTALL SINK, CABINET HANGER COVERS AND DRAWERS NOTE: IF YOU BOUGHT THE OPTIONAL LEGS FOR YOUR NOTE: CABINET THEN PLEASE FOLLOW THE INSTALLATION INSTALL THE DRAWERS AND PLACE THE HANGER GUIDE ON PAGE 24 BEFORE YOU MOUNT THE COVERS ON THE HANGERS AFTER THE CABINET CABINET ON THE WALL.
  • Page 15 ASSEMBLY INSTRUCTIONS HINGE ASSEMBLY AND DOOR ADJUSTMENT TO REMOVE THE DOOR USE THE FOLLOWING ACTION: VERTICAL AJUSTMENT To move the door SLIDE HINGE up and down. “CLICK” “Hinge” BISAGRA BASE “Hinge plate” HORIZONTAL ADJUSTMENT INSERT THE HINGE IN To move the door left or right. THE BASE DEPTH ADJUSTMENT To move the door...
  • Page 16 ASSEMBLY INSTRUCTIONS LEFT WAY INSTALL PINS PLASTIC PLASTIC INSTALL CABINET PROFILES AND HANGERS THE WHEEL SHOULD FACE RIGHT CABINET THE FRONT OF THE CABINET HANGER AND DOWN. USE SCREWS FOR SIDE DRAWERS LEFT CABINET HANGER APPLY PRESSURRE TO THE HANGERS TO FIT OR USE A RUBBER HAMMER BY GIVING LIGHT BLOWS THE WHEEL SHOULD FACE...
  • Page 17 ASSEMBLY INSTRUCTIONS INSTALL SOFT-CLOSING MECHANISM USE SCREWS FOR SOFT- CLOSING MECHANISM NOTE: THE SOFT-CLOSING MECHANISMS ARE INSTALLED IN CABINET PIECE #LSP. INSTALL PIECE RSP-2-3 Cam adjustment NOTE: REMEMBER TO ASSEMBLE THE CABINET BETWEEN TWO OR MORE PEOPLE. 50200 - 14 of 27...
  • Page 18 ASSEMBLY INSTRUCTIONS INSTALL PIECE 4 Cam adjustment NOTE: REMEMBER TO ASSEMBLE THE CABINET BETWEEN TWO OR MORE PEOPLE. INSTALL PIECE 5 USE CONFIRMAT USE CONFIRMAT SCREWS SCREWS NOTE: REMEMBER TO ASSEMBLE THE CABINET BETWEEN TWO OR MORE PEOPLE. 50200 - 15 of 27...
  • Page 19 ASSEMBLY INSTRUCTIONS INSTALL PIECE 6 HOLD PIECE 6 UNTIL PIECE LSP IS ASSEMBLED Cam adjustment NOTE: REMEMBER TO ASSEMBLE THE CABINET BETWEEN TWO OR MORE PEOPLE. INSTALL PIECE 7 HOLD PIECES 6-7 UNTIL PIECE LSP IS ASSEMBLED Cam adjustment NOTE: REMEMBER TO ASSEMBLE THE CABINET BETWEEN TWO OR MORE PEOPLE.
  • Page 20 ASSEMBLY INSTRUCTIONS INSTALL PIECE 8 HOLD PIECES 6-7-8 UNTIL PIECE LSP IS ASSEMBLED Cam adjustment INSTALL PIECE LSP WITH PIECES 2-3-4-6-7 AND 8 Cam adjustment 50200 - 17 of 27...
  • Page 21 ASSEMBLY INSTRUCTIONS INSTALL SCREWS TO PIECE 2 BELOW PIECE 4 USE LARGE SELF DRILLING SCREWS LIFT THE CABINET CAUTION: TWO PEOPLE ARE NEEDED TO SAFELY LIFT THE CABINET. LIFT THE CABINET 50200 - 18 of 27...
  • Page 22 ASSEMBLY INSTRUCTIONS INSTALL PIECE 10 USE SMALL SELF DRILLING SCREWS REAR VIEW ASSEMBLE PIECES 11-12 USE LARGE SELF DRILLING SCREWS NOTE: REMEMBER TO ASSEMBLE THE CABINET BETWEEN TWO OR MORE PEOPLE. 50200 - 19 of 27...
  • Page 23 ASSEMBLY INSTRUCTIONS INSTALL METAL SIDE DRAWERS USE SCREWS FOR FIT THE METAL SIDE METAL SIDE DRAWERS AND SCREW DRAWERS INSTALL SOFT-CLOSING MECHANISM 50200 - 20 of 27...
  • Page 24 ASSEMBLY INSTRUCTIONS INSTALL CLIP FRONT FIXING BRACKET LEFT/RIGHT APPLY PRESSURE TO THE BRACKETS TO FIT ASSEMBLE UPPER AND LOWER DRAWERS LOCK DOWN THE METAL SIDE DRAWER WITH THE FRONT FIXING BRACKET NOTE: MAKE SURE THAT THERE IS NO SPACE BETWEEN PIECE 11-13. 50200 - 21 of 27...
  • Page 25 ASSEMBLY INSTRUCTIONS INSTALL SINK, CABINET HANGER COVERS AND DRAWERS NOTE: NOTE: IF YOU BOUGHT THE OPTIONAL LEGS FOR YOUR CABINET THEN PLEASE FOLLOW THE INSTALLATION INSTALL THE DRAWERS AND PLACE THE HANGER GUIDE ON PAGE 24 BEFORE YOU MOUNT THE COVERS ON THE HANGERS AFTER THE CABINET CABINET ON THE WALL.
  • Page 26 ASSEMBLY INSTRUCTIONS HINGE ASSEMBLY AND DOOR ADJUSTMENT TO REMOVE THE DOOR USE THE FOLLOWING ACTION: VERTICAL AJUSTMENT To move the door SLIDE HINGE up and down. “CLICK” “Hinge” BISAGRA BASE “Hinge plate” HORIZONTAL ADJUSTMENT INSERT THE HINGE IN To move the door left or right. THE BASE DEPTH ADJUSTMENT To move the door...
  • Page 27 GUIDE TO INSTALL THE OPTIONAL VANITY LEGS FOLLOW THESE STEPS IF YOU USE SCREWS PURCHASED LEGS FOR YOUR VANITY FOR LEGS INSTALLATION OF THE LEGS MUST BE DONE AFTER THE CABINET IS ASSEMBLED BUT BEFORE IT IS MOUNTED TO THE WALL. INSTALL LEGS IN PIECE 4.

  • Page 28: Attaching The Mounting Plate

    GUIDE TO MOUNTING THE CABINET ON THE WALL TOOLS REQUIRED (NOT INCLUDED) TAPE MEASURE LEVEL DRILL PENCIL SILICONE SCREWDRIVER STUD FINDER ATTACHING THE MOUNTING PLATE (Follow this guide if you are using the optional legs. Otherwise, install the mounting plate at your desired height) 11/32 47/64 28"...
  • Page 29 GUIDE TO MOUNTING THE CABINET ON THE WALL HANG THE CABINET ON THE WALL 17/64 53/64 - 22" 21" IF THE CONNECTIONS ARE NOT WITHIN WITH TWO OR MORE PEOPLE LIFT MAKE SURE THAT THE HANGER IS LEVEL THE CABINET. THIS RANGE IT IS NECESSARY THE CABINET UP ONTO THE MOUNTING ATTACHED TO THE PLATE.
  • Page 30 ONCE YOU PUT TOGETHER THE CABINET, SOME DRILLS ARE GOING TO BE LEFT OVER. FOR A BETTER FINISH, HIDE THESE PERFORATIONS WITH THE STICKERS YOU CAN FIND IN THE HARDWARE KIT. OP No: 50200 - 27 of 27...
