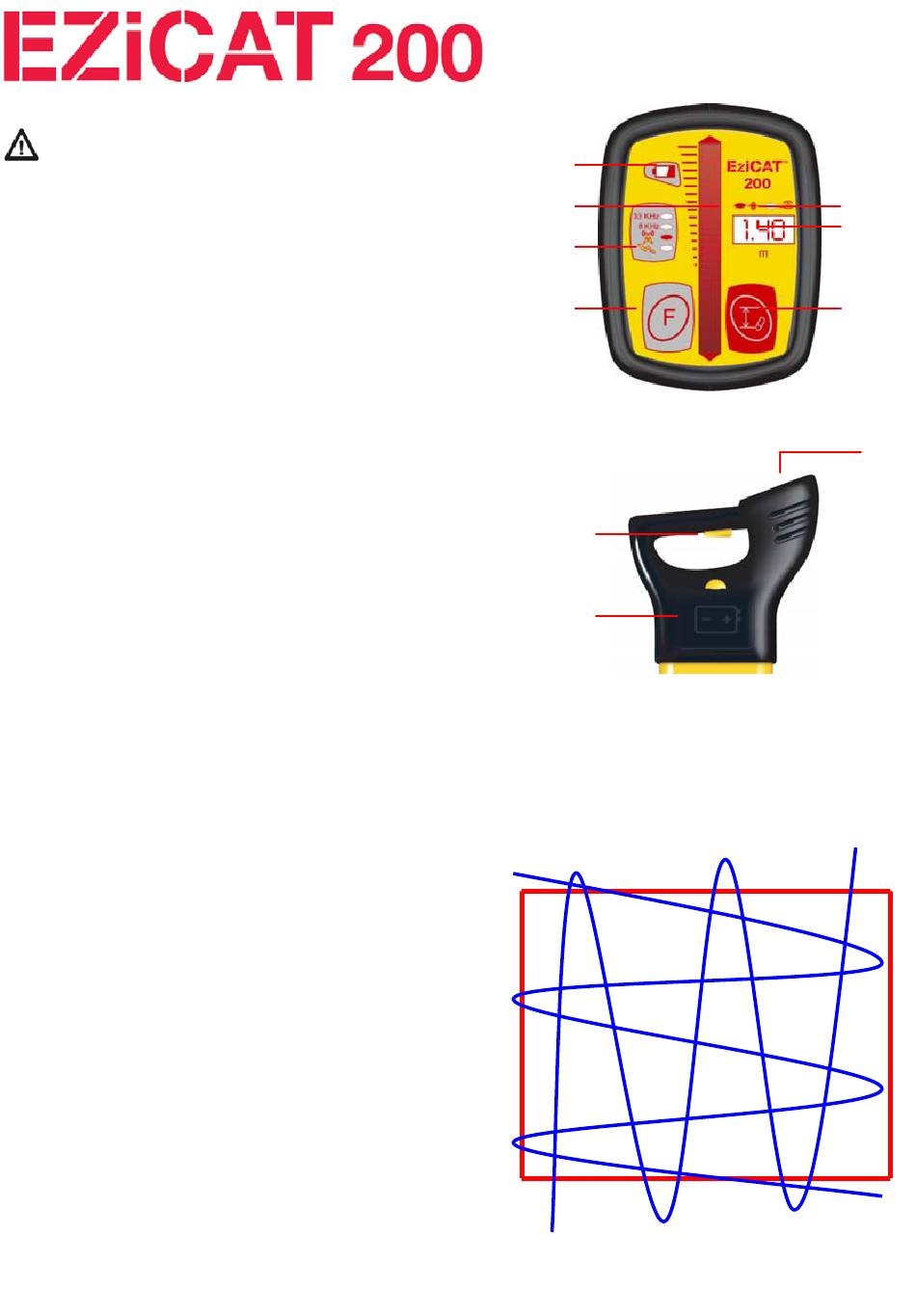

EZiCAT 200 Quick Start Manual

Please ensure you read the EZiSYSTEM user
manual before using this product. This Quick
Start Guide is NOT a substitute for the User
Manual.
1 Battery Level Indicator
2 LED Bar Display
3 LED Mode Indicator
4 Function / Mode Select Key
5 Depth key

Controls:

• Switch on the EZiCAT™ by lifting and holding the
On/Off trigger
• Switching on activates a start-up test which checks
the display LEDs, speakers and batteries.
• The battery light starts to flash when approximately
20% battery life remains. Change all batteries at
the same time using quality alkaline replacements.
• The EZiCAT™ always starts in POWER mode and
at maximum sensitivity for the safety of the
operator.
• Pressing the Function key changes the EZiCAT™
mode between Power, Radio, 8kHz and 33kHz
Generator modes. The selected mode is indicated
by the illuminated LED.
• The central LED bar indicates signal strength and
the display will rise as a service is detected, giving
a peak reading when directly over the service.
Sweep Search:
• Mark out the site to be scanned.
• In POWER mode cross the site from left to right,
keeping the EZiCAT™ upright. DO NOT SWING.
• Mark any responses with marker paint, flags or
similar. CAUTION: Never drive pegs into the
ground over the service
• Turn through 90° and repeat across the site.
• Change to RADIO mode and repeat the process in
both directions.
6 Depth Display
7 Sonde/Line Mode
8 Display Panel
9 On / Off Trigger
10 Battery Compartment
Quick Start Guide
1
2
3
4
9
10

Sweep Search

POWER Mode
7
6
5
8
RADIO Mode
