Summary of Contents for Patching Panda BD-Z

  • Page 1 BD-Z USER MANUAL AMOUNT LVL|ACC...
  • Page 2 INTRODUCTION: BD-Z is a versatile kick drum module for Eurorack system focus to design a wide range of bass drum percussive sounds. The implementation of thru-zero FM/PM BD-Z can deliver an immense variety of textures and harmonics, it has an amount of control over the modulation input to preserve the primary kick drum sound or not.

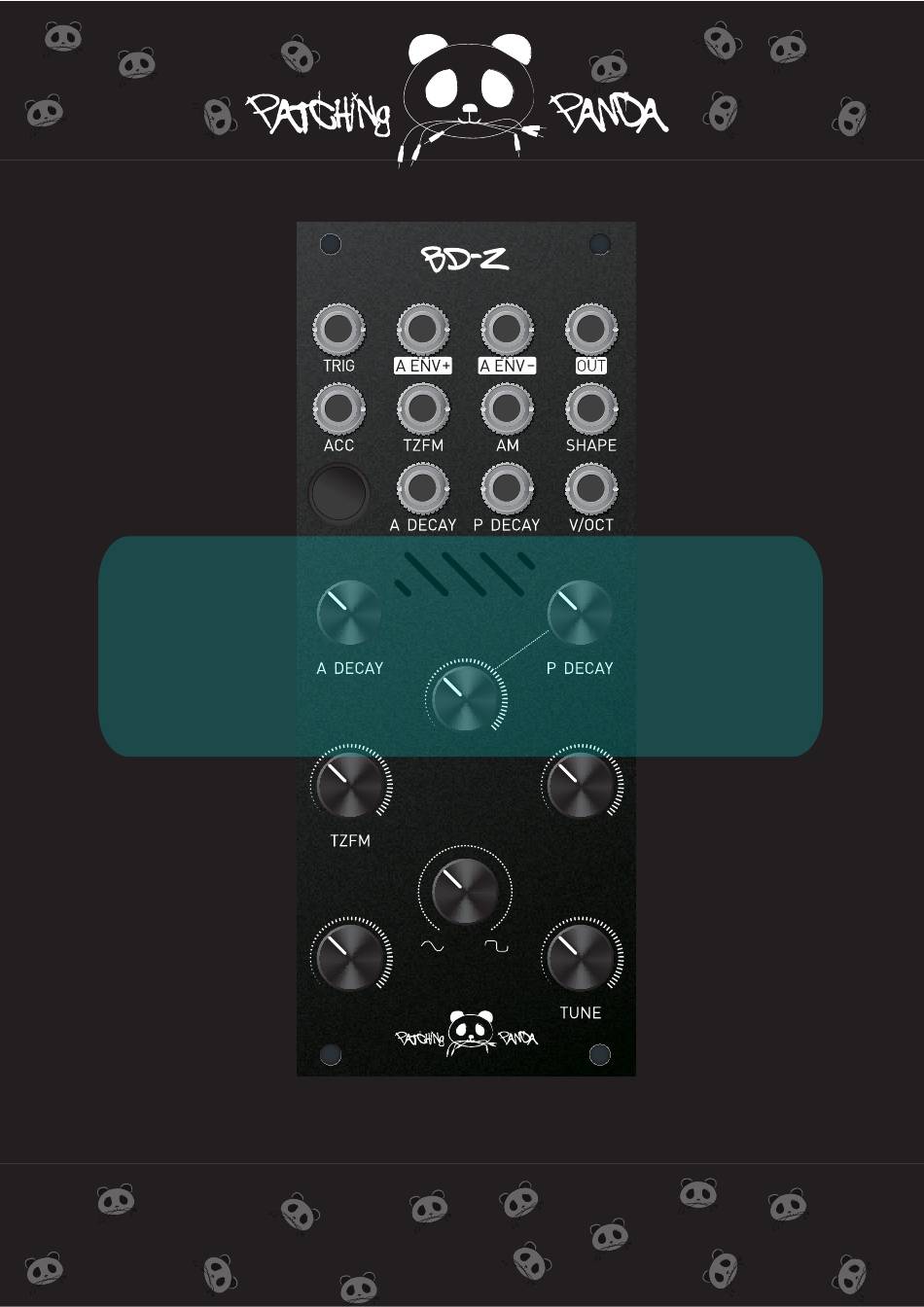

  • Page 3 INSTRUCTIONS Pitch envelope LED Trigger input Amplitude envelope decay pot Amplitude envelope + out Pitch envelope decay pot Amplitude envelope - out Pitch envelope decay amount Signal output Thru-Zero modulation amount Trigger accent input Amplitude modulation amount Thru-Zero modulation input Distortion modulation amount Amplitude modulation input AMOUNT...
  • Page 4 CALIBRATION: Set all pots to minimum except Decay pot to maximum. Connect the CV out from your sequencer to V/OCT input, send triggers to Trig input, send the Output to your DAW. In your DAW open tuner VST to monitore notes. Send C1 from your sequencer, in your DAW monitor the output while turning the multiturn trimmer to read C1.

Table of Contents
