Zhejiang Dusun Electron Co., Ltd

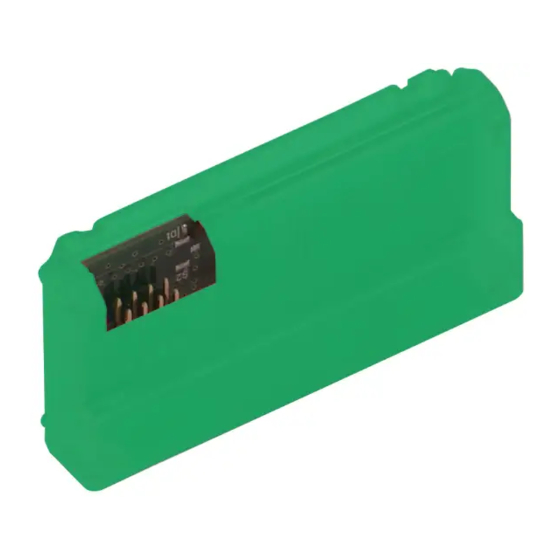

Product Name: Zwave Module
Main Model: DSM-102
Series Model: DSM-102-IPEX
Revision History
Specification
Rev
Date
1.0
2021-12-30
Approvals
Organization
Zhejiang Dusun Electron Co., Ltd
Tel: 86-571-86769027/8 8810480
Website: www.dusuniot.
User Manual
Sect.
Update Description
New version release
Name
www.dusunremotes.com
Title
Floor 8, Building A, Wantong Center
By
Alpha
Date
Hangzhou, China
www.dusunlock.com
Advertisement
Table of Contents
Related Manuals for Dusun DSM-102-IPEX
Summary of Contents for Dusun DSM-102-IPEX
- Page 1 Zhejiang Dusun Electron Co., Ltd User Manual Product Name: Zwave Module Main Model: DSM-102 Series Model: DSM-102-IPEX Revision History Specification Sect. Update Description Date 2021-12-30 New version release Alpha Approvals Organization Name Title Date Zhejiang Dusun Electron Co., Ltd Floor 8, Building A, Wantong Center...
-
Page 2: Table Of Contents
Zhejiang Dusun Electron Co., Ltd Introduction ..........................3 Purpose& Description ....................3 Product Feature Summary ..................... 3 Scenario ......................... 3 Mechanical Requirement ......................4 Drawing ......................... 4 Dimensions........................4 Pin Definition ........................ 4 Electrical parameters ......................... 6 Absolute electrical parameters ..................6 Working conditions ....................... -
Page 3: Introduction
Zhejiang Dusun Electron Co., Ltd 1 Introduction 1.1 Purpose& Description DSM-102 is a low power-consuming embedded Z-wave module developed By Roombanker. It consists of the highly integrated wireless radio processor chip, ZGM130S037HGN1, and several peripherals, with a built-in ZWAVE protocol stack and robust library functions. -
Page 4: Mechanical Requirement
Zhejiang Dusun Electron Co., Ltd 2 Mechanical Requirement 2.1 Drawing 2.2 Dimensions DSM-102 provides two rows of pins(2 * 14) with the pin pitch of 1.27±0.1mm Dimensions: 17±0.35 mm (W) x 22±0.35 mm (L) x 2.8±0.15 mm (H). 2.3 Pin Definition... - Page 5 Zhejiang Dusun Electron Co., Ltd PD13 Corresponding to PD13 of IC PD14 Corresponding to PD14 of IC PD15 Corresponding to PD15 of IC PB11 Corresponding to PB11 of IC PB12 Corresponding to PB12 of IC PB13 Corresponding to PB13 of IC...
-
Page 6: Electrical Parameters
Zhejiang Dusun Electron Co., Ltd 3 Electrical parameters 3.1 Absolute electrical parameters Parameter Description Maximum Unit Typical Minimum value value value Storage ℃ temperature Power supply -0.3 voltage Static electricity voltage TAMB-25℃ (human body model) Static electricity voltage TAMB-25℃ (machine model) 3.2 Working conditions... -
Page 7: Rf Features
Zhejiang Dusun Electron Co., Ltd 4 RF features 4.1 Basic RF feature Parameter Description 908.42 Frequency band Wireless technology Z-wave Data transmission rate 100kbps max Antenna port IPEX interface 4.2 TX performance (Performance during constant transmission) Typical Minimum Maximum Unit... -
Page 8: Antenna
Zhejiang Dusun Electron Co., Ltd 5 Antenna 5.1 Antenna type This product uses IPEX interface connect to external antenna such as stick antenna. 5.2 Antenna interference reduction To ensure optimal RF performance, it is recommended that the antenna be at least 15 mm away from other metal parts. -
Page 9: Production Instructions
6 Production instructions 1. Use an SMT placement machine to mount components to the stamp hole module that DUSUN produces within 24 hours after the module is unpacked and the firmware is burned. If not, vacuum packs the module again. Bake the module before mounting components to the module. -
Page 10: Recommended Oven Temperature Curve
Zhejiang Dusun Electron Co., Ltd • Alarm temperature: 130℃ • SMT placement ready temperature after natural cooling: < 36℃ • Number of drying times: 1 • Rebaking condition: The module is not soldered within 12 hours after baking. 5. Do not use SMT to process modules that have been unpacked for over three months. -
Page 11: Storage Conditions
Zhejiang Dusun Electron Co., Ltd 6.2 Storage conditions Zhejiang Dusun Electron Co., Ltd Floor 8, Building A, Wantong Center Tel: 86-571-86769027/8 8810480 Hangzhou, China Website: www.dusuniot. www.dusunremotes.com www.dusunlock.com... -
Page 12: Moq And Packing
Zhejiang Dusun Electron Co., Ltd 7 MOQ and packing Number of Product Packing Number of reel MOQ（pcs） Modules in each model method packs in each box reel pack Carrier tape DSM-102 4000 and reel 1000 packing Zhejiang Dusun Electron Co., Ltd... -
Page 13: Fcc
Zhejiang Dusun Electron Co., Ltd 8 FCC Caution: Any changes or modifications not expressly approved by the party responsible for compliance could void the user's authority to operate the equipment. This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation. - Page 14 Integration instructions for host product manufacturers according to KDB 996369 D03 OEM Manual v01 2.2 List of applicable FCC rules CFR 47 FCC PART 15 SUBPART C has been investigated. It is applicable to the module. 2.3 Specific operational use conditions This module is stand-alone modular.
