CycleSafe Pocket Shelter Assembly Instructions

RELEASE DATE:
REVISION DATE:
PRODUCT NAME:
PRODUCT NUMBER:

SCOPE:

This Work Instruction will detail the fabrication of the Pocket Shelter (17450)
ITEM QTY
1 1
2 2
3 3
4 1
5 8
6 2
7 8
ITEM 3
Top Rail
ITEM 5
5/16-18NC X 1-1/4"
SHMS
4 per side
ITEM 6
3/8" Anchor Kit G
4 per leg
WHEN ASSEMBLING THIS PRODUCT. ALWAYS WEAR SAFETY GLASSES
WI4.9.036 Pocket Shelter Installation Instruction.xlsx
Printed: 6/21/2022
BY:
31-Aug-10
REV
Pocket Shelter
17450
ASSEMBLY INSTRUCTIONS
DESCRIPTION
Top Panel
Side Leg Weldment
Top Rail
5/16-18NC X 1-1/2 X 3" SHMS
5/16-18NC X 1-1/4" SHMS
3/8" Kit G Lag Bolts
5/16" EPDM Rubber Washer
ALWAYS OBSERVE POSTED SAFETY GUIDELINES
CONTROLLED DOCUMENT
GM
A
PART NO.
10301
17451
17455
17456
10222
12716
17460
Page 1 of 4

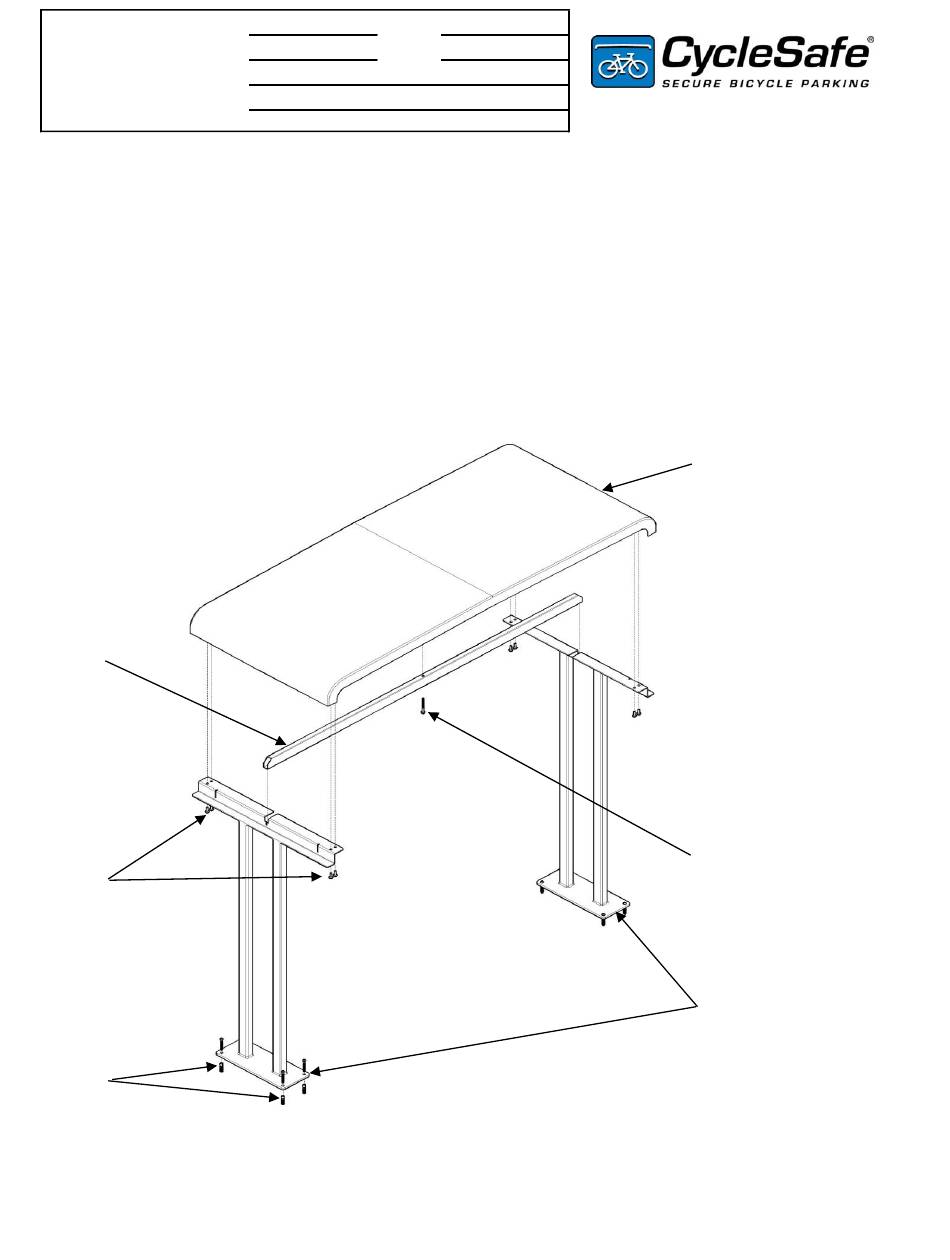

ITEM 1
Top Panel
ITEM 4
5/16-18NC X 3" SHMS
ITEM 2
Side Leg Weldment
FM4.5.002
Rev -B
