DMX-RELAIS 8 INRUSH+

User manual

Table of Contents

Need help?

Do you have a question about the DMX-RELAIS 8 INRUSH+ and is the answer not in the manual?

Questions and answers

Summary of Contents for DMX4ALL DMX-RELAIS 8 INRUSH+

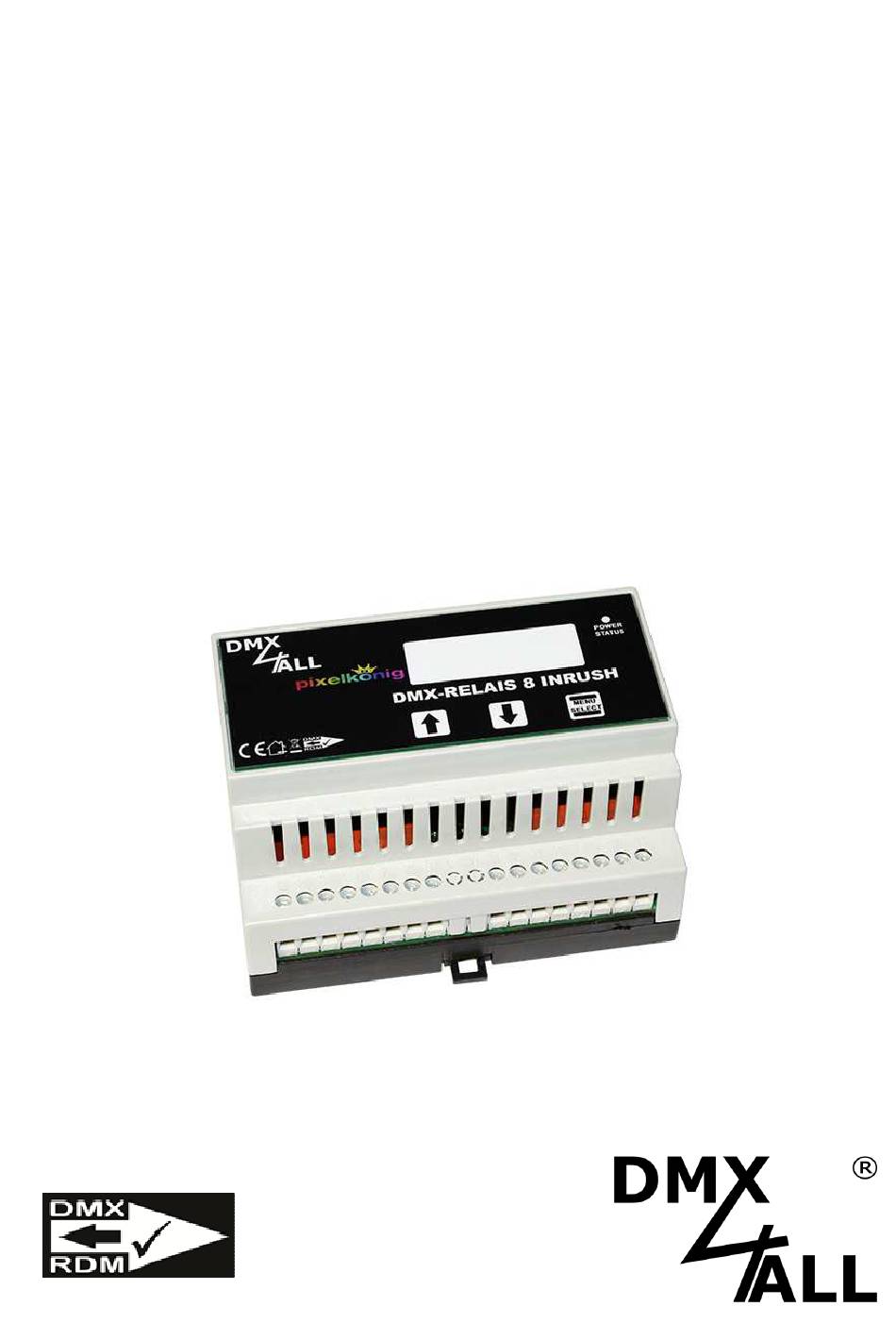

Page 1 DMX-RELAIS 8 INRUSH+ User manual...
Page 2: Table Of Contents
DMX-RELAIS 8 INRUSH+ For your own safety, please read this user manual and warnings carefully before installation. Contents Description ........................3 Technical Data ......................4 Connection ......................... 5 Status Display ......................6 Settings ........................7 Key Lock ........................7 Menu Guide ........................ 8 DMX-Address ......................
Page 3: Description
DMX-RELAIS 8 INRUSH+ Description The DMX-RELAIS 8 INRUSH+ is designed for several control tasks. 8 potential free switching outputs The DMX-RELAIS 8 INRUSH+ has 8 potential free switching outputs (Closer / NO) up to 8A switching capacity. Switching contact for direct and alternating voltage The relay interface is suitable to direct current (DC) or alternating current (AC).
Page 4: Technical Data
DMX-RELAIS 8 INRUSH+ Technical Data Power supply: 12-24V DC (300mA @ 12V / 200mA @ 24V) Protocol: DMX512 DMX-Channels: up to 8 DMX channels DMX-FAIL: HOLD / 0-100% Operation modes: Hysteresis 127/128 Hysteresis 0/1 Hysteresis 100/150 Exclusive Monostable 1Second Output: 8 potential-free switching output (closer / NO) each max.
Page 5: Connection
DMX-RELAIS 8 INRUSH+ Connection DMX IN DMX OUT POWER 12-24V DMX-RELAIS 8 INRUSH+ POWER POWER Switch contact each max. 8A (165A@20ms peak switch-on current)
Page 6: Status Display
DMX-RELAIS 8 INRUSH+ Status Display The integrated RGB status display is a multifunction display. Status Display A001 . Power supply not connected / Display is switched off RED flashes No DMX signal detected GREEN Device ready for use GREEN flashes Device shows RDM identify...
Page 7: Settings
DMX-RELAIS 8 INRUSH+ Settings Either the settings can be made via RDM or directly at the DMX-RELAIS 8 INRUSH+ via the 3 buttons at the 7 segment display. 7-Segment-Display Status Display A001 . Key Lock Button Button Button MENU Key Lock After turning on the DMX-RELAIS 8 INRUSH+ or if no button is pressed for ca.
Page 8: Menu Guide
DMX-RELAIS 8 INRUSH+ Menu Guide Various menu items are shown via the display, which can then be set using the buttons The menu item is displayed with a letter abbreviation followed by the set value. The letter abbreviations are assigned as follows: DMX-Start address Personality Fail-Mode...
Page 9: Dmx-Address
DMX-RELAIS 8 INRUSH+ DMX-Address Via the RDM parameter DMX_START_ADDRESS or directly at the device under menu A the start address can be set. By pressing the buttons the start address can be set in a arrange of 1 and 512. is pressed held, the start address increases or decreases until the button is pressed.
Page 10: Dmx-Fail Behavior
DMX-RELAIS 8 INRUSH+ DMX-Fail Behavior The DMX-RELAIS 8 INRUSH+ has a DMX-FAIL function keeping the last switching state (HOLD) or set the predefined switching state to the set value. In case of DMX fail the behavior can be set via the RDM parameter DMX_FAIL_MODE or directly at the device in the menu F.
Page 11: Operation Modes
DMX-RELAIS 8 INRUSH+ Operation Modes The DMX-RELAIS 8 INRUSH+ has several operation modes (Personality). Personality 1: Hysteresis 127/128 Personality 2: Hysteresis 0/1 Personality 3: Hysteresis 100/150 Personality 4: Exclusive (Jalousie-Control) Personality 5: Monostable 1Second (Impulse) The number of the needed DMX channels and their assignment as well as the way of controlling the outputs depends on the Personality.
Page 12: Personality 1: Hysteresis 127/128
DMX-RELAIS 8 INRUSH+ Personality 1: Hysteresis 127/128 In this operation mode, the relays switch of each other independently, each via one DMX channel. The switching threshold (Hysteresis) is 127/128. That means that the relay is switched off when the DMX value is 127 or less and that the relay is switched on when the DMX value is 128 or greater.
Page 13: Personality 2: Hysteresis 0/1
DMX-RELAIS 8 INRUSH+ Personality 2: Hysteresis 0/1 In this operation mode, the relays switch of each other independently, each via one DMX channel. The switching threshold (Hysteresis) is 0/1. That means that the relay is switched off when the DMX value is 0 and that the relay is switched on when the DMX value is 1 or greater.
Page 14: Personality 3: Hysteresis 100/150
DMX-RELAIS 8 INRUSH+ Personality 3: Hysteresis 100/150 In this operation mode, the relays switch of each other independently, each via one DMX channel. The switching threshold (Hysteresis) is 100/150. That means that the relay is switched off when the DMX value is 100 or less and that the relay is switched on when the DMX value is 150 or greater.
Page 15: Personality 4: Exclusive (Jalousie-Control)
DMX-RELAIS 8 INRUSH+ Personality 4: Exclusive (Jalousie-Control) In this operation mode, 2 relays are linked to one another, so only one relay can switch at a time. The switching threshold (hysteresis) is 127/128, which means that the relay is switched off when the DMX value is 127 or less. The relay is switched on when the DMX value is 128 or greater.
Page 16: Personality 5: Monostable 1Second (Impulse)
DMX-RELAIS 8 INRUSH+ Personality 5: Monostable 1Second (Impulse) In this operation mode, the relays switch of each other independently, each via one DMX channel. As soon as the DMX value is 128 or greater, the relay switches for 1 second. After that, the DMX value must first drop below 128 in order to trigger another switching pulse.
Page 17: Rdm
DMX-RELAIS 8 INRUSH+ RDM is the short form for Remote Device Management. As soon as the device is within the system, device-dependent settings can occur remotely via RDM command due to the uniquely assigned UID. A direct access to the device is not necessary.
Page 18 DMX-RELAIS 8 INRUSH+ Parameter ID Discovery ANSI/ Command Command Command PID:  SERIAL_NUMBER 0xD400 PID:   IDENTIFY_MODE 0xD402 1) Manufacturer depending RDM control commands (MSC - Manufacturer Specific Type) Manufacturer depending RDM control commands SERIAL_NUMBER PID: 0xD400 Outputs a text description (ASCII-Text) of the device serial number. Send: PDL=0 Receive: PDL=21...
Page 19 DMX-RELAIS 8 INRUSH+ IDENTIFY_MODE PID: 0xD402 Sets the mode that is executed with IDENTIFY_DEVICE. Send: PDL=0 Receive: PDL=1 (1 Byte IDENTIFY_MODE_ID) Send: PDL=1 (1 Byte IDENTIFY_MODE_ID) Receive: PDL=0 IDENTIFY_MODE_ID Function FULL Identify All relays switch simultaneously ON/OFF and the status LED flashes LOUD Identify All relays switch in order ON/OFF and the status LED flashes...
Page 20: Factory Reset
DMX-RELAIS 8 INRUSH+ Factory Reset Before running the Factory Reset, read all steps carefully. To reset the DMX-RELAIS 8 INRUSH+ into the delivery conditions use the RDM parameter FACTORY_DEFAULTS or proceed as follows directly at the device: Turn off the device (Disconnect power supply !) Open housing, by carefully opening the side tab with a screw driver Turn the address switches 1 up to 10 on ON Turn on the device (Turn on power supply)
Page 21: Dimensions
DMX-RELAIS 8 INRUSH+ Dimensions 60mm 105mm 90mm All details in mm...
Page 22: Accessoires
DMX-RELAIS 8 INRUSH+ Accessoires Power supply 12V...
Page 23: Ce-Conformity
DMX-RELAIS 8 INRUSH+ CE-Conformity This device is controlled by a microprocessor and uses high frequency. In order to maintain the properties of the module with regard to CE conformity, installation into a closed metal housing in accordance with the EMC directive 2014/30/EU is necessary. Disposal Electronical and electronic products must not be disposed in domestic waste.
Page 24: Risk-Notes
DMX-RELAIS 8 INRUSH+ Risk-Notes You purchased a technical product. Conformable to the best available technology the following risks should not excluded: Failure risk: The device can drop out partially or completely at any time without warning. To reduce the probability of a failure a redundant system structure is necessary. Initiation risk: For the installation of the board, the board must be connected and adjusted to foreign components according to the device paperwork.
Page 25 Germany Last changes: 01.03.2022 © Copyright DMX4ALL GmbH All rights reserve. No part of this manual may be reproduced in any form (photocopy, pressure, microfilm or in another procedure) without written permission or processed, multiplied or spread using electronic systems.
