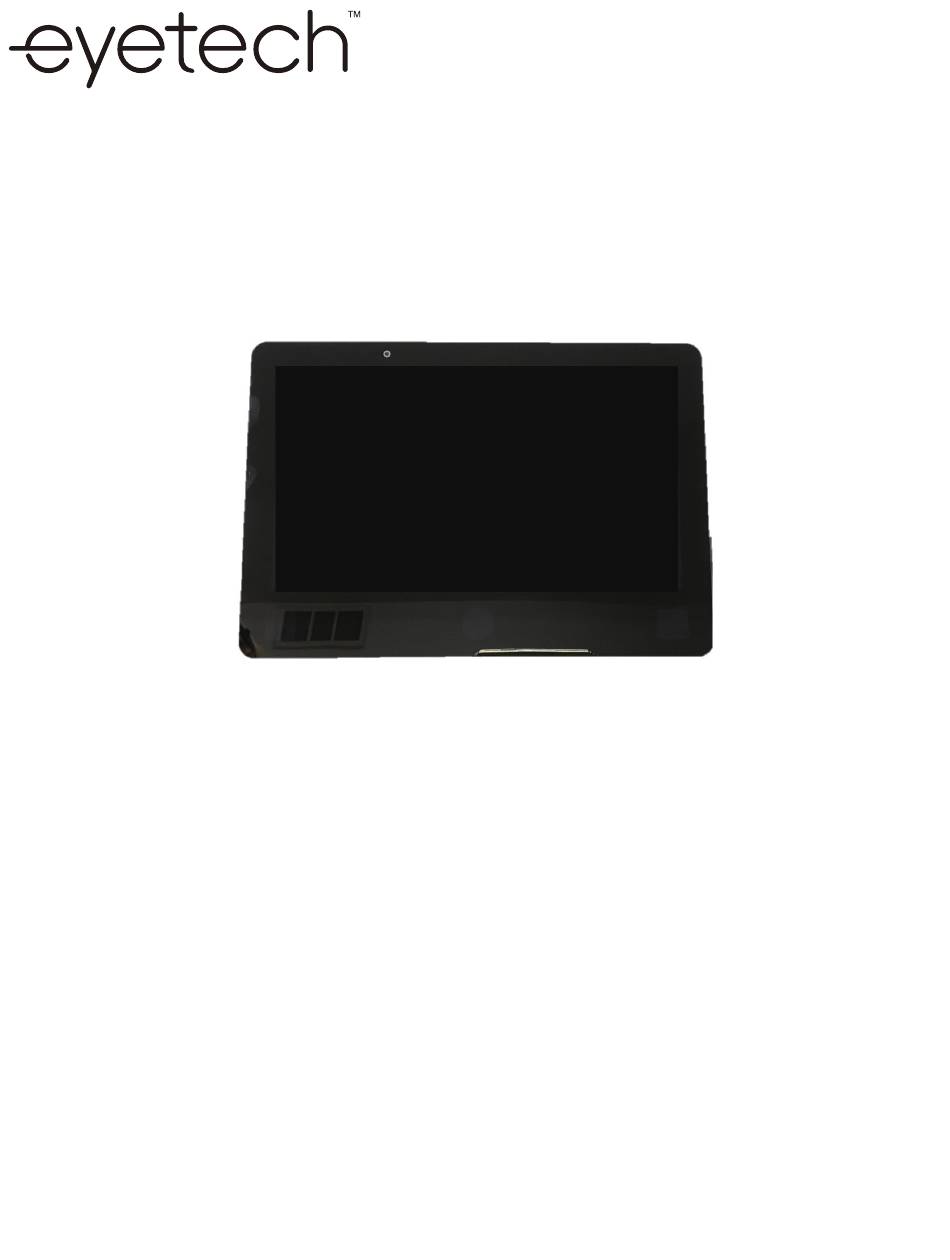

- Page 1 EyeOn Air Speech Generating Device User Guide Last Updated: May 2021...
-
Page 2: Table Of Contents
Overview Intended & Prohibited Use………………………………………………………………………….………………………04 Service Life……………………………………………………………………………………………………………………….…04 Device Identification Label………………………………………………………………………………….………………04 Technical Data Diagram……………………………..……………………………………………………………………………………………06-07 Safety………………………………………………………………………………………………………………………………..….08 Setup What’s in the Box?………………………………………………………………………………………..………………………10 First Use…………………………………………………………………………………………………………..……………………10 Device Operation On/Off…………………………………………………………………………………………………………………………………...13 Restarting………………………………………………………………………………………………………………………….…..13 Charging………………………………………………………………………….………………………….………………………….14 Storage…………………………………………………………………………………………………..………………………………15 Device Access Touch Screen Control…………………………………………………………………………………………..…….…………..17 Eye Gaze Control………………………………………………………………………………..………………….…….….….….17 Mouse Control…………………………………………………………………………………………….……………….………….17 Switch Control……………………………………………………………………….………………………………………..……...18 Keyboard Control…………………………………………………………………………………………………………………….18 Message Formulation Message Formulation………………………………………………………………………………………………………………20 Maintenance... -
Page 4: Intended & Prohibited Use
The EyeOn Air device is intended for use in the home by individuals who have a severe speech impairment. The EyeOn Air device can be used on a flat table or desktop surface by utilizing the integrated kickstand. In addition, the EyeOn Air device can also be mounted to various wheelchair mounts using the VESA mounting pattern located on the back of the device. -
Page 6: Diagram
Secondary Speakers Power Input 11 User Defined Button Switch Port Headphone Jack 12 Front Facing Camera USB Port Micro HDMI 13 IR Lights Primary Speakers Power Button 14 Eye Tracking Camera SIM Card Slot 10 Volume Button 15 Touchscreen... - Page 7 Hardware Diagram | Back Vie 16 Carrying Handle 17 Rear Facing Camera 18 Kickstand 19 VESA Mounting Pattern...
-
Page 8: Safety
When mounting the EyeOn Air device to a wheelchair, ensure that the unit is securely fastened. CAUTION The EyeOn Air device uses a Li-ion battery. Do not dispose of the battery in the garbage when replacing. EyeTech uses a third party agent for battery disposal. Go to https://www.call2recycle.org/start-recycling/... -
Page 10: What's In The Box
EyeOn Air Tablet Device (Including Eye Tracking) Speech Generating Software (installed) Ruggedized Case Universal Power Cord First Use • Connect the supplied power adapter between the Power Input (6) on the EyeOn Air device and the power supply. Left Side View 6 – Power Input... - Page 11 • The battery indicator light will appear orange while the EyeOn Air device is charging. After the EyeOn Air device is fully charged, the battery indicator light will appear green. Battery Indicator Light • Start the device by pressing the EyeOn Power Button (9) down for three seconds.
-
Page 13: On/Off
On/Off To turn on the EyeOn Air device: • Press the EyeOn Power Button (9) for three seconds. View 9 – Power Button To turn off the EyeOn Air device: • Press the EyeOn Power Button for three seconds. Select the ‘Power off’ option. -
Page 14: Charging
five (5) minutes, to allow the EyeOn Air device to revert to sleep mode when inactive. If the EyeOn Air device is used on a frequent basis, it is recommended to recharge on a daily basis. The device can be used while it’s charging. -
Page 15: Storage
• Ensure that the device is properly powered down (follow instructions on page 13). • The device should not be in sleep mode for storage. • Store the EyeOn Air device in a dry environment at room temperature (between -4F to 140F or -20C to 60C) -
Page 17: Touch Screen Control
Use the following methods to make a selection on the EyeOn Air device using mouse control: • Connect a Bluetooth mouse to the EyeOn Air device per the instructions provided with the mouse. • Plug in a USB mouse into one of the available ports: USB Ports (3) on the EyeOn Air device. Left Side View 3 –... -
Page 18: Switch Control
Switch Control Use the following method to make a selection on the EyeOn Air device using switch controls: • Plug in a compatible USB connected switch into one of the available ports: USB Ports (3) on the EyeOn device. Left Side View 3 –... -
Page 20: Message Formulation
The EyeOn Air device is equipped with speech generating software that provides multiple methods of message formulation through use of letters, words, pictures, and symbols. The EyeOn Air device audibly generates words and phrases when an individual selects either letters, words, pictures, or symbols through one of the multiple methods of... -
Page 22: Troubleshooting & Repairs
(such as microfiber). Avoid using strong cleaning substances, such as bleach. Battery Replacement & Disposal The EyeOn Air device uses a Li-ion battery. Do not dispose of the battery in the garbage when replacing. EyeTech uses a third party agent for battery disposal. Go to https://www.call2recycle.org/start-recycling/... - Page 24 Questions, Concerns & Comments Please use the following contact details to contact the manufacturer of the EyeOn Air device, should you have any questions, concerns, or comments: 1128 E Greenway Street Suite 1 Mesa, AZ 85203 Phone: 888.539.3832 Fax: 480.718.5243 info@eyetechds.com...
- Page 25 7. The band 5150-5350MHz indoor use only. Hereby, EyeTech Digital Systems , Inc.declares that this product is in compliance with essential requirements and other relevant provisions of Directive 2014/53/EU. This product is allowed to be used in all EU member states.
