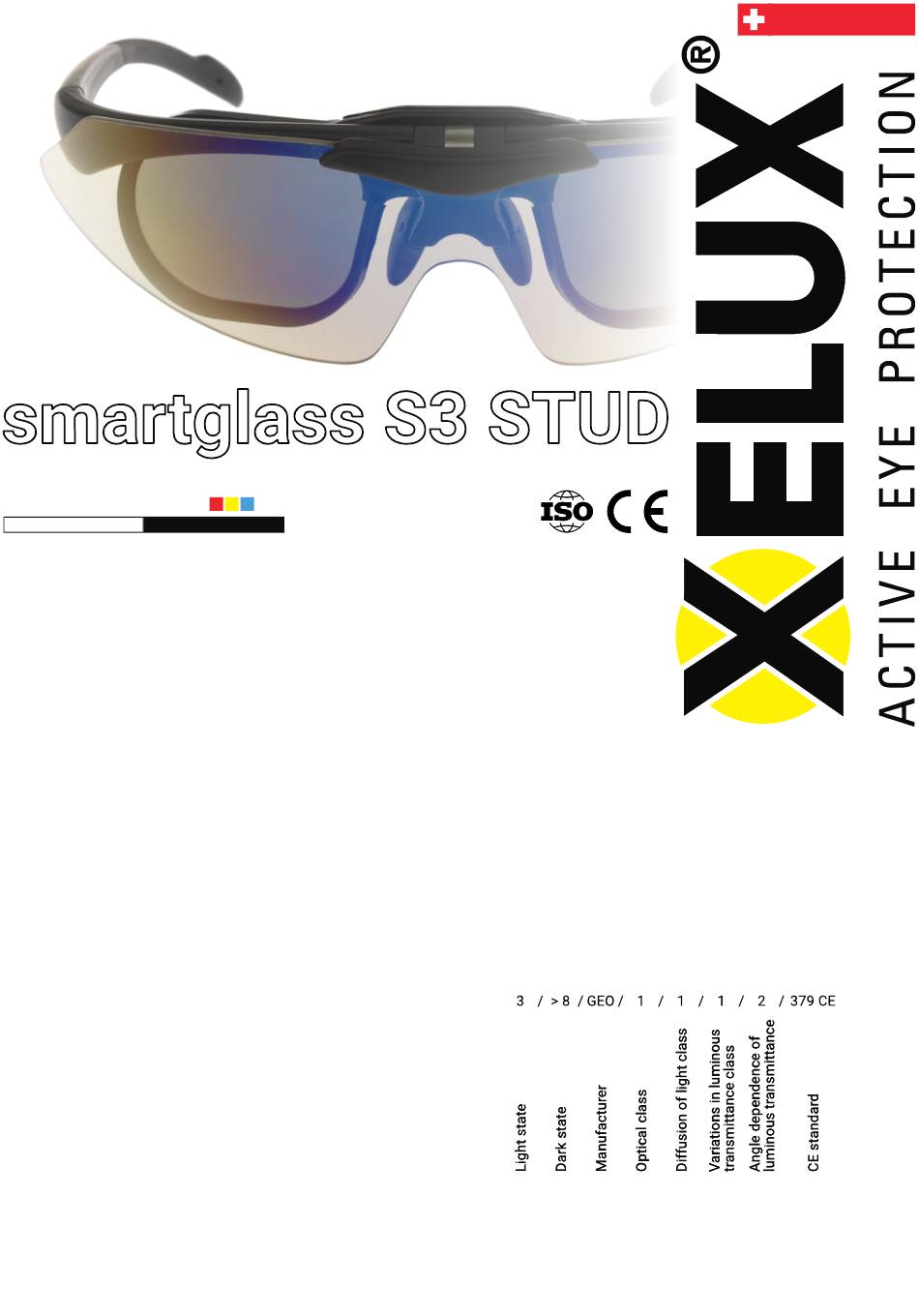

xelux smartglass S3 STUD Instruction Manual

Aktive Schutzbrille
SCHWEISSEN IN FARBE
2.5
Instruction Manual
Warning! The active safety glasses smartglass S3 STUD are
intended exclusively to protect from light pulses as they are emitted
from stud welding processes.
Please read the instruction manual before first use.
This personal protective equipment (PPE) is complies with EU
regulation 2016/425 , with effect from April 21, 2018.
Characteristics
Reaction time of less than a millisecond
Full color recognition and natural view with realcolor optics
Maximum eye protection with minimum weight
Combining comfort with safety
CE certified according EN166, EN170, EN172, EN379, ISO 12609-1
Application
The active safety glasses smartglass S3 STUD were specifically
developed for people working with stud welding processes. The
active safety glasses smartglass S3 STUD reliably protect against
harmful light pulses as they are emitted when stud welding while
working comfortably.
The active safety glasses smartglass S3 STUD are fully operational
out of the box. There is no on/off switch. The active safety glasses
smartglass S3 STUD will automatically darken.
Technology
The active safety glasses smartglass S3 STUD light state's shade
level is 2.5. Upon the firing of a light-pulse, the active safety glasses
smartglass S3 STUD automatically switches from the light state to a
dark state at shade level 8 within less than a millisecond. The
electronics were designed to only start darkening once an
uncomfortable illuminance threshold is reached.
The active safety glasses smartglass S3 STUD protects in the
wavelength range of 200 – 3000 nm. The light state of the realcolor
optics is clear and color neutral. This allows the user to accurately
perceive signal colors.
8
castelberg design gmbh | Räffelstrasse 29 | 8045 Zürich | Switzerland | 2022
Active Safety Glasses

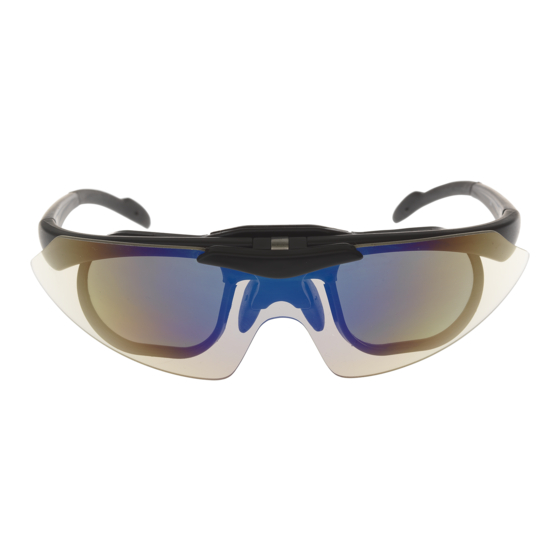

Technical specifications
Frame material: Polycarbonate, skin-friendly
Functional insert material: Glass/Plastics, skin-friendly
Total weight: 42 g
Dimensions: 170 x 150 x 50 mm
Standards: CE: EN166, EN170, EN172, EN379, ISO 12609-1
Warranty: 5 years
Lifetime: Min. 6 years including battery lifetime
Marking CE
3 / > 8 / GEO / 1 / 1 / 1 / 2 / 379 CE
SWISS MADE
