Transform TALL FLOWERBED SINGLE CHAMBER Mounting Instructions

TA L L F L O W E R B E D
S I N G L E C H A M B E R
TALL FLOWERBED MOUNTING SET ELEMENTS MADE OF THE TRAPLAST™
Universal mounting instructions for single chamber flowerbed! Model size 1200 × 660 × 530 mm (w × d × h). Regardless of the size/type of
flowerbed purchased, always use shorter decking boards
a number of decking boards forming the wall of your particular flowerbed by comparing with the picture shown on www.recyklace.cz/eshop.
1
decking board 132 × 32 × 600 mm*, 6 pcs*- for faces
2
decking board 132 × 32 × 1200 mm*, 6 pcs* - for sidewalls
3
decking board 132 × 32 × 600 mm*
(without groove with spring), 2 pcs

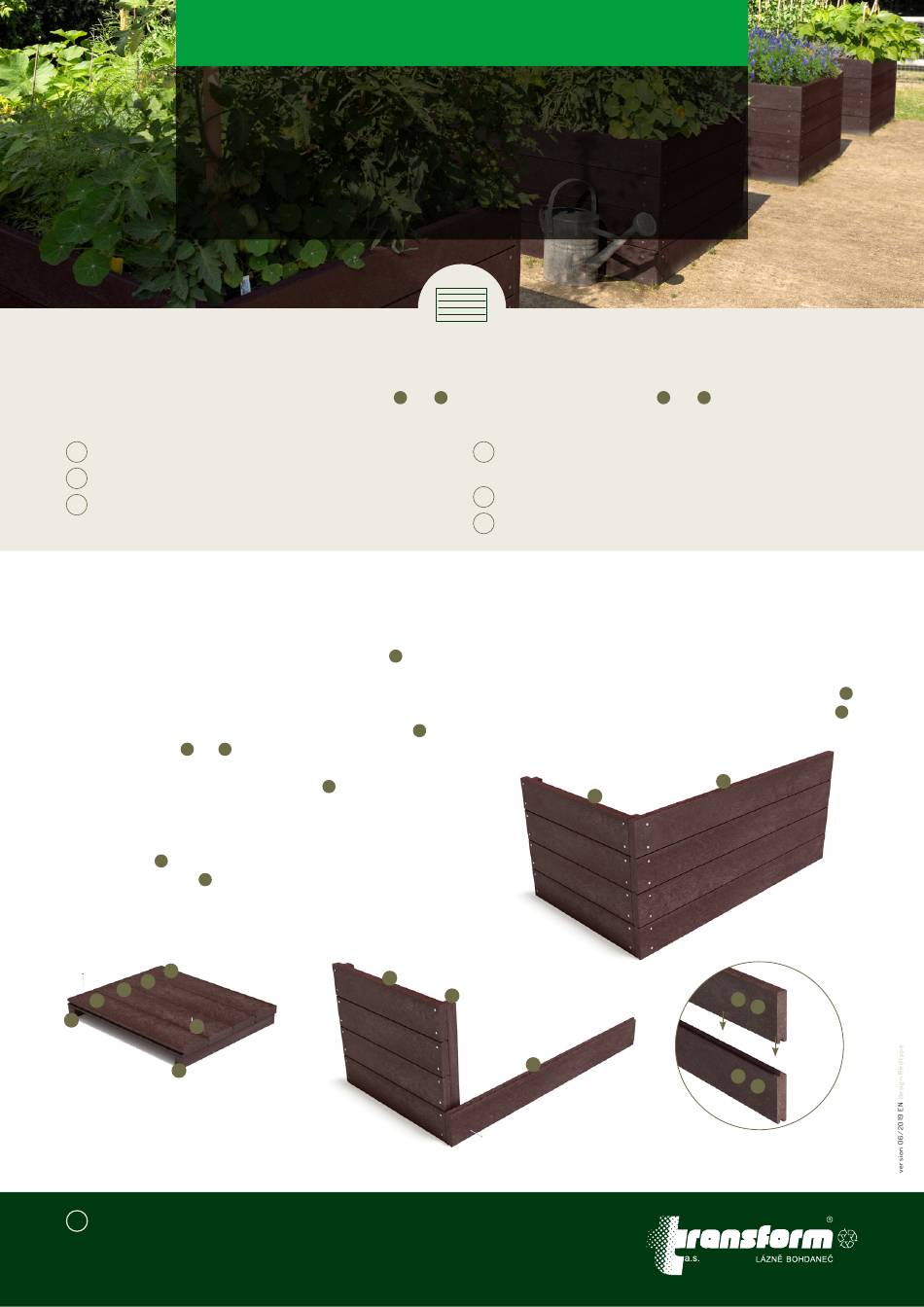

BEST PRACTICE OF MOUNTING TALL FLOWERBED

We recommend to assemble the Tall Flowerbed made of the Traplast™
where it will stand taking into account its total weight. The joist
slightly shorter than the resulting height of the flowerbed sidewall, so
decide first whether it will face up with the bottom or upper edge of the
sidewall - see the Figure A. If you have selected the facing up with the
upper edge of the sidewall, lay a shorter board on two parallel joists
upper decking boards and do not have spring and the groove is at
3 4
the bottom - see the Figure D. When facing up the joists and the decking
board at the bottom, start with the decking board
is facing down again. Align the joists with the sides of the decking board
and drill a 4 mm diameter hole in its longitudinal axis up to the joist in the
distance of 25 mm from each side of the floor. Screw the decking board
using the screws and assemble the face using other decking board.
6
Attach the decking board to the face as shown in the Figure B. Predrill
2
the holes for the screws (up to the joist again) in the horizontal axis of the
A
3
1
1
1
5
6
5
* The values given are for the flowerbed version in the size of 1200 × 660 × 530 mm (width × depth × height). The number of pieces and their length vary according to the chosen size of the flowerbed.
!
When working / assembling, use the protective equipment!
