LED Bulb Installation Manual

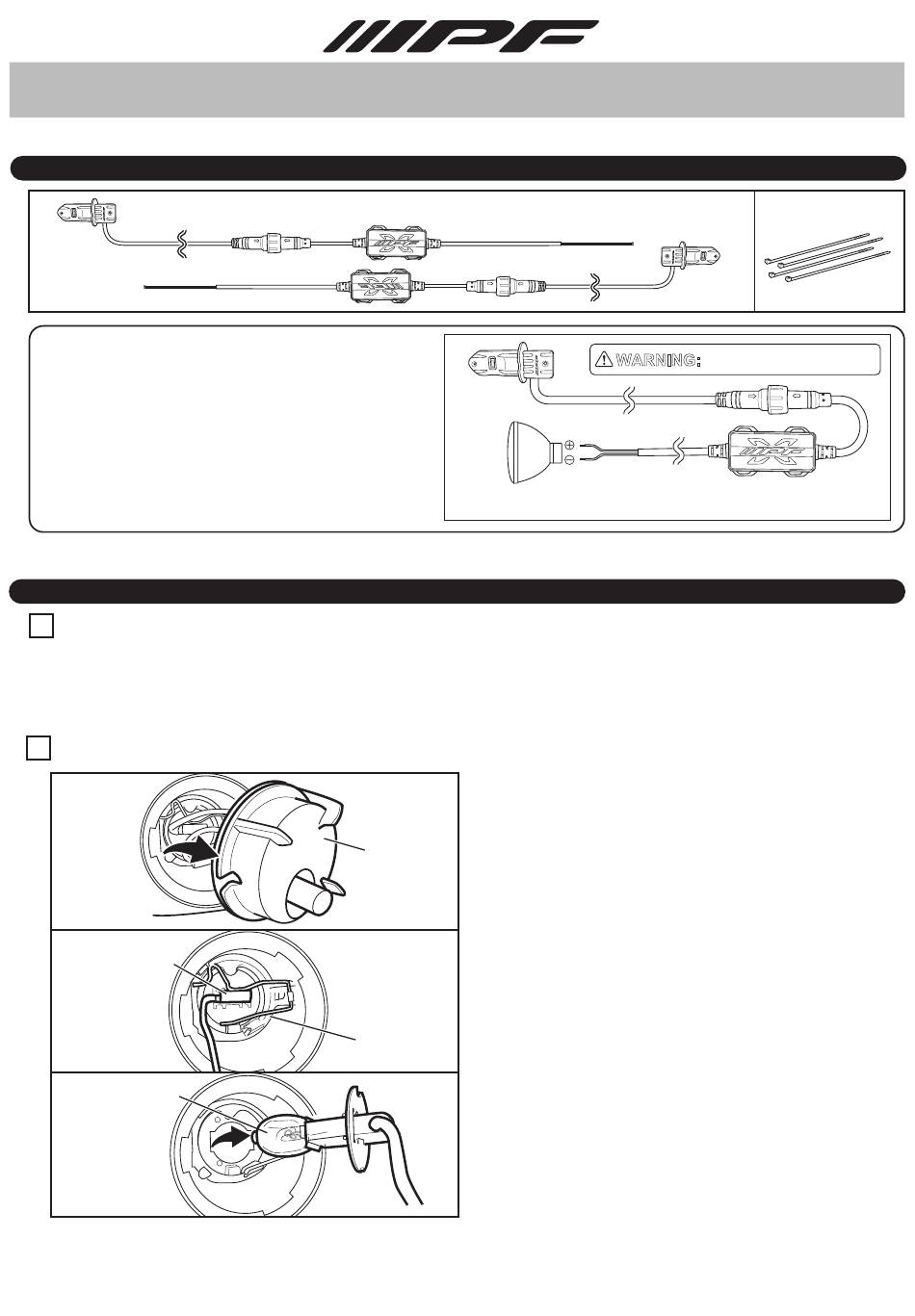

Components

LED bulb lighting test points

※Do it before installation.

＜Test procedure＞

1. Remove the vehicle's power wire from

halogen bulb and connect to the LED bulb's

power wire.

2. Turn on the lamp, Test for correct lighting.

3. Check the vehicles gauges for any warning

signs. If no warnings, the test is finished.

Installation procedure

Halogen bulb check

Check the condition of the halogen bulb attachment.

If the check cannot be done visually or the space is too narrow,

please remove the headlamp unit from the vehicle.

Refer to the vehicle's manual when changing or removing your halogen headlamp bulb.

2 Removing halogen bulb (see below as an example)

Halogen bulb

(H3, H3c)

Vehicle's fog lamp

power wire

Remove the lamp unit cover, unclasp and remove

the bulb.

Refer to the vehicle's manual for fog lamp removal

cover

procedure, as it can differ between vehicles.

Clasp

・ LED bulb assy .........　2

Do not turn on the switch

WARNING:

if the bulb is not connected

LED bulb's power wire

(nonpolarity)

BP070-504451-B

・ Cable ties

.........　4

①
