Intelbras XFCT 1600 Quick Manual

XFCT 1600/1608/1616
Optical termination box
Congratulations, you have just purchased a product with Intelbras quality and safety.

1. Care and Safety

» Read the installation guide: all safety and handling instructions should be
read before starting operations with the product and should be kept for future
reference.
» Safety in transport and handling: high pressure or violent vibrations are
not allowed during transport, storage, or use.
» Technical assistance: do not attempt to repair this product. Let all services
be done by our authorized service network.
» Heed the warnings: follow all the instructions indicated in the guide.
» LGPD - General Law of Personal Data Protection: Intelbras does not
access, transfer, capture, or perform any other type of personal data processing
resulting from this product.

2. Technical Specifications

Maximum fusion capacity 12
Maximum derivation capacity 16
Maximum splitter capacity 1× 1×16 optical splitter (12 × 4 × 60 mm)
2 individual main ports with support for Ø13 mm
Main
Ports
Output 16 output ports for 2 × 3 mm drop flat cable

3. Product

3.1. Available models

» XFCT 1600: aerial optical termination box without splitter;
» XFCT 1608: aerial optical termination box with 1x8 SC/APC splitter;
» XFCT 1616: aerial optical termination box with 1x16 SC/APC splitter.

3.2. Description

The Intelbras Optical Termination Box (OTB) is used as the termination point of the backbone
cable to connect with the drop cable to the network of FFTX communication systems. In the
Quick Guide
OTB, fiber splicing, splitting and distribution can be done, providing adequate protection and
accommodation for FTTx network construction. With its completely closed structure made of
PC+ABS, the Intelbras OTB provides protection against humidity, dust, aging, and water,
with an IP 55 ingress protection rating.

3.3. Features

» Closed structure to accommodate splicing and optical connections;
» Material: PC + ABS;
» Ingress protection rating: IP 55;
» Support for up to 16 SC adapters;
» Outdoor or indoor installation, and can be installed both on walls and on poles;
» Operation temperature range: -40 °C to +85 °C;
» Maximum relative humidity of the installation environment: 85%.

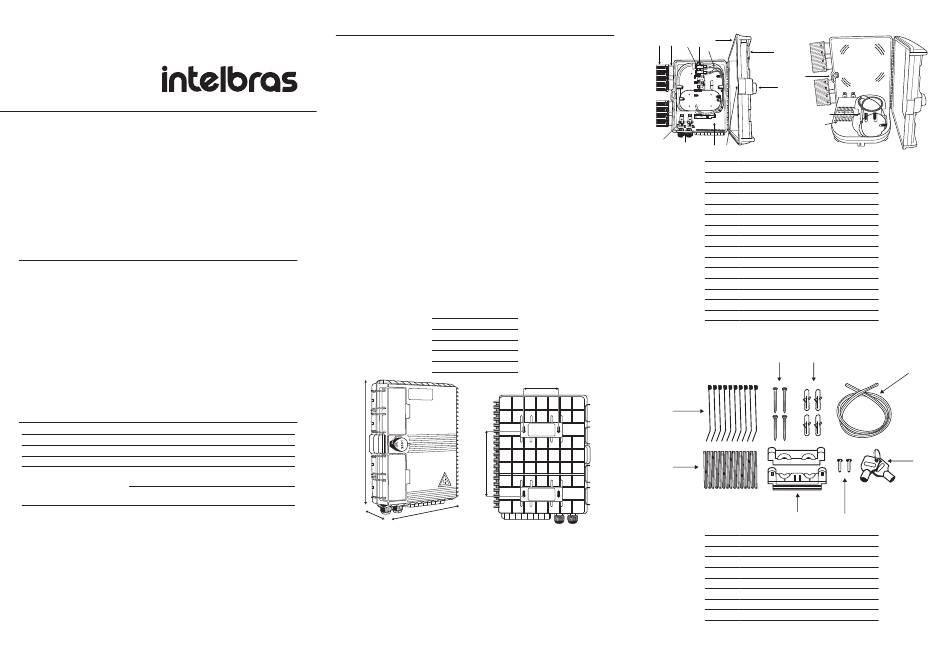

3.4. Dimensions

A
C
A 293 mm
B 219 mm
C 84 mm
D 155 mm
E 82 mm
E
D
B

3.5. XFCT Box Details

4
9 8
7 6
5
1
13
2
14
15
11
12
10
3
1 Cover
2 Lock protector
3 Latch
4 Sealing
5 Tray and mobile splices
6 Adapter holder
7 Adapter
8 Latch hinge for locking the cover
9 Cover latch
10 Base
11 Cable locking system
12 Passage for uncutting cable
13 Box locking system
14 Support for PLC Mini-Module splitter
15 Grooves to fix the sleeves

3.6. Accessories

C D
A
B
F
A 10× plastic ties
B 16× fusion sleeves
C 4× fixing screws
D 4× plugs
E 1× tube for conducting the loose tube
F 2× parts for the uncut cable
G 2× screws to fix the support to the uncut cable
H 2× keys for closing the box
E
H
G
