Summary of Contents for Texi XYZ 2518

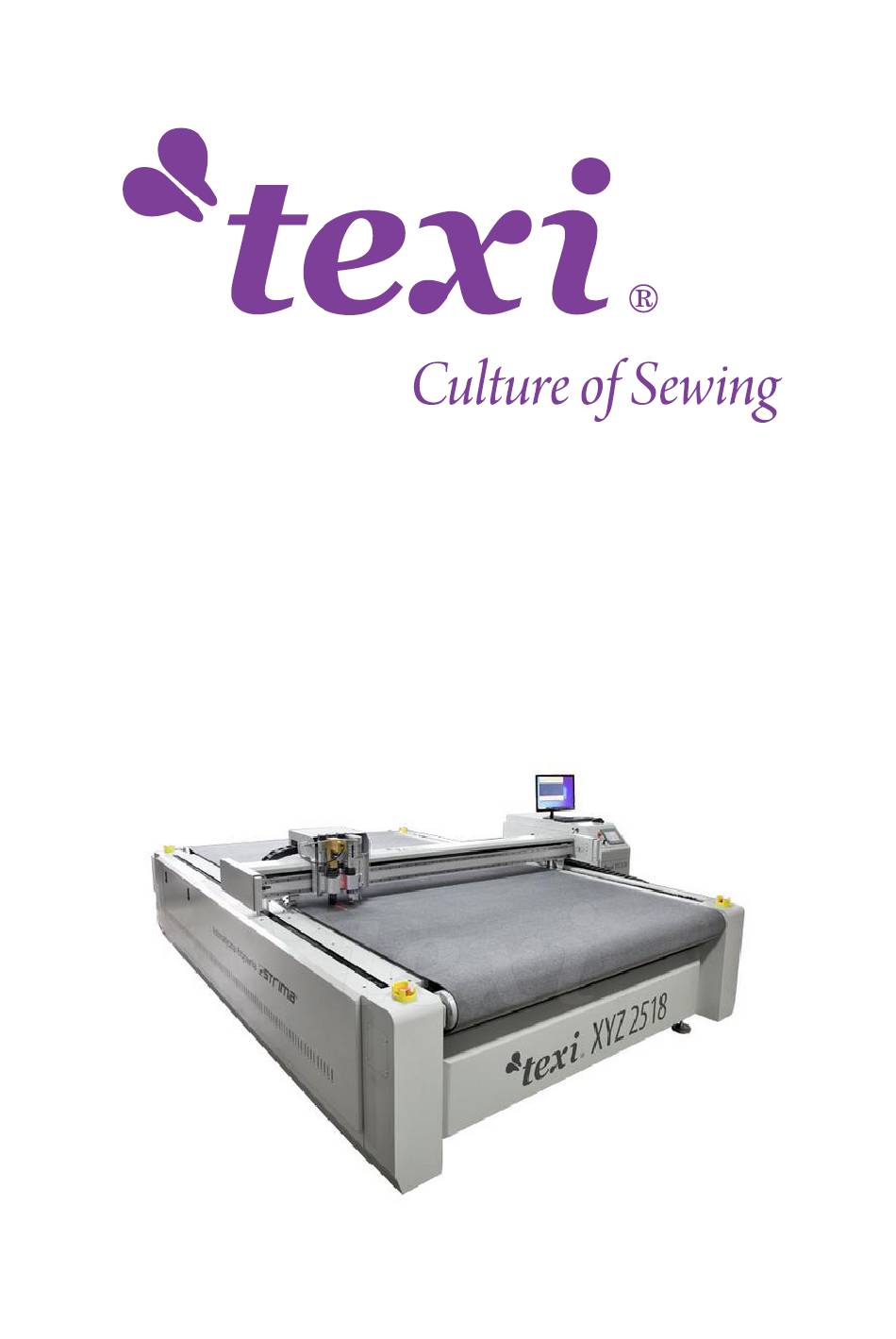

  • Page 1 TEXI XYZ 2518 MANUAL...

  • Page 2: Table Of Contents

    CATALOGUE 1.Machine Introduction ....................... 3 1.1 Power and cable requirements ................... 3 1.2 Introduction ........................4 2.Accessories Installation ....................... 5 2.1 380V ........................... 5 2.2 220V ........................... 7 3.Installation of CUT Software & IP Settings ..............10 3.1 Introduction ......................... 10 3.2 Installation .........................

  • Page 3: Machine Introduction

    7.2 Pneumatic Oscillating Cutting Tool（SP4, cut,Head1） ......... 36 7.3 Driven rotary tool（SP4, cut，Head1） ............... 36 7.4 Universal Cutting Tool(Drag Knife)(SP4, cut，Head1；SP2, Tcut,Head2) . 37 7.5 Kiss Cutting Tool (SP4,cut,Head1；SP2,Tcut,Head2) ........38 7.6 Creasing Wheel Tool（SP2,Tcut,Head2） ............... 39 7.8 V-cut Tool ........................40 7.9Punching Tool（SP2）...

  • Page 4: Introduction

    1.2 Introduction (1)The left one is the 380V model machine and its accessories. (2)The right one is the 220V model machine and its accessories. Number Item ① Distribution Box ② Returning-air Box ③ Air Compressor ④ Vacuum pump ⑤ Control Box （Note：...

  • Page 5: Accessories Installation

    4.There is no air compressor for the machine without using it. 5.Some models have no distribution box, only a certain number of AC contactors are attached.） 2.Accessories Installation 2.1 380V (1)Distribution Box ①.Input A.Connect the U-shaped terminals of the Signal&Protection cable to the A1&A2 of the AC contactor.
  • Page 6 C.Connect one end of the Power Cable for the Vacuum Pump to the 2/T1， 4/T2,6/T3 of the AC contactor and connect another end to the vacuum pump, as show in the red frames below: D.Connect the aviation plug of the 220V Power Cable to the machine or the control box.(Note:Subject to the actual model.) (2)Vacuum Pump of the Digital Knife Cutting Machine with Flat Table...

  • Page 7: 220V

    ②Connect No.2(The signal cable of the returning-air box) to the “Returning Air Box” port on the machine. ③ Connect No.3 to the No.6(The inlet of the vacuum pump) by the air pipe. ④ Connect No.4(Solenoid valve) to the oil water separator(Pneumatic valve) on the machine by the air tube.
  • Page 8 A1&A2 of the No.1 AC contactor. B.Connect the 220V power supply cables to the 2/T1 and 6/T3 of the No.1 and No.2 AC contactors separately(Note:No.5 and No.6 are connected to the 220V cables.You need to prepare 220V power supply cables by yourself) C.Connect the 220V Power Cable to the 220V power supply socket (Note:The 220V power supply cables which are connected to the...
  • Page 9 (Note:Part A is connected to the inlet of the vacuum pump and Part B is connected to the outlet of the vacuum pump) ① Connect No.1 to the air pipe which comes out of the machine. ②Connect No.2(The signal cable of the returning-air box) to the “Returning Air Box”...

  • Page 10: Installation Of Cut Software & Ip Settings

    （Note:It is recommended to discharge water once every one to seven days） 3.Installation of CUT Software & IP Settings 3.1 Introduction Cut is a cutting service software for editing and cutting tasks. It can be well matched with mainstream graphic design software. The software can be used for drawing simple graphs.

  • Page 11: Ip Settings

    3.3 IP Settings (1)Right click →click “Properties” →Click “Local Area Connection” ， as shown below: (2)Click “Properties” (3)Double click “Internet Protocol Version 4(TCP/IPV4)” (4)Click “Use the following IP address”，change the IP as shown below: (Note:There can not be a crash between the computer IP and the machine...

  • Page 12: Settings Of The Cut Software

    IP. The default machine IP is 192.168.0.252.) (5)Click on “OK” to finish changing. 4.Settings of the Cut Software 4.1 Double click to open the software,click 【 optimize 】 → 【config...[P]】： ，the machine work area，they must be the same with the data in the panel. ，the machine IP, it must be the same with the machine IP.

  • Page 13: Operation Of The Cut Software

    (Note:The parameters of different models are different. All factory settings and data on this page cannot be changed) ,it’s used for the auto-feeding system. 5.Operation of the Cut Software 5.1 Import Processing File (1)Click 【 file】 → 【open...】 ， the icons (Note：...
  • Page 14 (2)Left click the processing file icon and drag it to the software icon, as shown below: (Note：You can also keep the front-end display of the software and drag the file directly into the cut software interface) (3)Change the default opening method of the processing file, and then double-click the processing file icon to import the processing file into the cut software.

  • Page 15: Export The Processing File

    ③Click【OK】→【OK】 (4)The imported processing graph must be docked at the left bottom corner of the work area in the software，as shown below: (Note:If the imported processing graph has not docked at the left bottom corner, you can press 【C】key on the keyboard or click the software to complete the docking operation.) 5.2 Export the Processing File (1)Click【file】→【save...】...

  • Page 16: Sp Number

    5.3 SP number (Note:The corresponding relationship between the tools and the SP numbers are slightly different for different models.Here is just a brief introduction.Please consult the Strima technician for the specific corresponding relationship among the tools,SP numbers and the tool holders.) (1)One cutter head machine:The machine that all tool holders mounted on one fixed plate.
  • Page 17 B.Set the Head2 and Pen2 to work，the SP number of Head2 is SP6，the number of Pen2 is SP5,as shown below: ② When cut the graph which the row number is even number，the Head1 SP3, the Pen1 is SP2, the Head2 and Pen2 all are SP0, as shown below: ③...

  • Page 18: Optimize The Processing Graph

    5.4 Optimize the Processing Graph Click to optimize the cutting path and the cutting effect of the processing graph.The content of optimization operation execution is the following selected contents，as shown below： (Note：Click【optimize】→【config...[P]】to show this window)

  • Page 19: Send Graph To The Machine

    5.5 Send Graph to the Machine Click to send the processing graph to the machine. 5.6 Please refer to Operation Examples for other main functions 6.Control Panel 6.1 Screen saver interface After the machine is turned on, the touch screen will enter the screen saver interface(Note:The machine will enter the screen saver interface even if it has not been operated for a long time.And it...
  • Page 20 (2)Click the corresponding button to control the movement, lifting and rotation of the knife tool, select the appropriate position to start cutting, control the vacuum pump, and realize the feeding function, etc (Note:There are no “clamp”and “drag” function for the non auto-feeding model machine) This area controls the movement, lifting and rotation of the knife tools.
  • Page 21 example, if the number is 500, press and hold for 2-5 seconds or until the cutter head stops moving, the distance of the cutter head moving is 500mm (Note:If just tap the direction button, the corresponding axis movement distance is not the set value distance) ,They are used to switch the moving speed of the cutter head during manual operation.Press and it will become to...

  • Page 22: Adjust Page

    will pause processing, and the current state will be remembered after the pause. If the status bar is pressed again, the machine will continue to work. If you don't want to continue, press the cancel button. If press the status bar while the graph is not processed, it is equivalent to pressing the cancel button.
  • Page 23 (2)The“adjust”page used adjust falling position corresponding tool during processing.we call this position as knife depth. This area is used to adjust the knife depth.Only the knife depth of the “cut”and “Tcut” displayed in this area can be set. About adjust the V-cut knife depth, please refer to the 7.8V-cut.About the knife depth adjustment of every tool, please refer to the 7.Tools Installation and Knife Depth...

  • Page 24: Speed Page

    button, causing damage to the knife, felt and adsorption platform. Before using this function, it must be confirmed that the knife depth is within the safe operation range) ,When adjusting the knife depth, it is used to switch the distance value of each drop of the tool(Note: Use it with the buttons in (7)) ,To control the raise and fall of the...
  • Page 25 (2)The speed page displays follow information: null（the machine's speed in non-cutting process during cutting), cutting speed(spd 1 <spd 2<spd 3), acceleration/deceleration, curve speed, drag speed, speed of draw the air back and delay parameters and so on. You can also change the speed and parameters in this page.
  • Page 26 ,“origin” data are the moving speed of every axis after pressing the “origin”button which is in the“work”page.“jog” data are the moving speed of every axis during manual operation. It means the interval between the oscillating knife tool vibrating and start cutting after the “repeat”button is pressed. It means the rotational speed of the punching knife.

  • Page 27: Config Page

    (15) Specify the processing speed of a circle or arc within a certain size range. For example, when the “lim dia” is 10, for a circle with a diameter greater than 10 mm, the processing speed of the machine is the set curve speed; for a circle with a diameter less than 10 mm, the machine will automatically reduce the processing speed according to a certain proportion.
  • Page 28 ,The oscillating knife cutting tool will vibrate automatically during cutting. The safe switch is at the situation of being turned off. If you want to turn on the safe switch, just press it. The safe switch is at the situation of being turned on, and the machine will pause if the safe switch is touched during cutting.

  • Page 29: Test Page

    machine function, and the “expire” is the expiration date for the use of the machine.. ,These data are used to modify the actual processing length of every tool during processing. ①down extend:It is the processing parameter of the starting point of a single continuous processing graph,that is,the processing parameter of the falling position of the tool.
  • Page 30 (Note:In order to prevent wrong operation, some buttons and parameters can’t be used in condition of lock,for example (2)Unlock the icons: ,The default code is 1234，type 1234 into the left frame, then press “unlock” to unlock the icons.(Note:If there is no special case, please do not change the password, so as to prevent our technicians from checking the operation of the machine normally in case of failure) (3)Lock the icons:In condition that the icons have been unlocked, type...

  • Page 31: Tools Installation And Knife Depth Setting

    (Note: The red areas won’t adsorb the material, and the green areas will adsorb the material after press the “vacuum” or “repeat” button. For example, If you don’t want to let the area out14 and area out10 adsorb the material, you can just press the “out14” button and the “out10”...

  • Page 32: Oscillating Knife Cutting Tool（Sp4，Cut,Head1

    All of the above are SP numbers in the panel. Please be sure to distinguish them from those in the computer software. Please refer to the actual model. All the SP numbers below are single or double holder or single holder plus punching tool models.Please consult the technician for the specific SP numbers of other models.
  • Page 33 (4)The cutting edge of the knife must face X+ direction and tighten the fixing ring in the rightmost figure (5)Fix the black slot to the iron rod in the figure and insert the tool cable into the left socket. (6)Knife depth setting ①Press to enter the knife depth setting page.
  • Page 34 inching control of rising and falling, and the latter is the distance of each rising and falling in inching control. There are four values for switching: 5mm, 1mm, 0.1mm and 0.03mm，press to switch the value. ④Knife depth judgement，there are three methods, as shown bellow: Method One: A.Rotate this part of the oscillating knife cutting tool...
  • Page 35 it can cut off the paper. Press then press back to the adjust page. E.Press then press back to the adjust page. ⑤Save the knife depth data After adjusting the knife depth, press to save the knife depth data. (Note: this button is to give up the adjustment of knife depth.

  • Page 36: Pneumatic Oscillating Cutting Tool（Sp4, Cut,Head1

    B.Take the selection of 0.1mm inching step as an example.Press for one time，it can increase 0.1mm knife depth,that is, if the current knife depth is 50, after pressing one time , the knife depth will be 50.01, and there is no need to press Press any of these two buttons to test again，If the material is cut through and the felt is not damaged,that means the knife depth is reasonable.

  • Page 37: Universal Cutting Tool(Drag Knife)(Sp4, Cut，Head1；Sp2, Tcut,Head2)

    (2)After the driven rotary tool bar is placed into the tool holder, tighten the fixing ring and fix the slot to the iron rod at the figure.Tighten the screws at the connection between the tool bar and the tool head in the rightmost figure, and insert the cable of the tool into the left socket of cutter head.

  • Page 38: Kiss Cutting Tool (Sp4,Cut,Head1；Sp2,Tcut,Head2)

    (1)Make sure that the value of the W axis is 0.00,and the cutting edge of the knife must face the X+ direction,tighten the fixing ring in the rightmost figure. 7.5 Kiss Cutting Tool (SP4,cut,Head1；SP2,Tcut,Head2) (1)The exposed part of the tip is the same as or slightly less than the thickness of the cutting material (2)Make sure that the value of the W axis is 0.00,and the cutting edge of the knife must face the X+ direction,tighten the fixing ring...

  • Page 39: Creasing Wheel Tool（Sp2,Tcut,Head2

    (3)Knife depth setting，achieve half-cut effect ①Adjust the black knob of the tool bar so that the expansion distance of the part of the tool head is approximately the same as the material fluctuation height. ②Drop the tool bar until the tool head contacts the felt, and now, drop the tool bar about 1mm.

  • Page 40: V-Cut Tool

    ③ Press for 2-3 seconds ， the set screws at the X+ direction will rotate to X- direction. ④Tighten the set screws. ⑤Press the number in ，it will be 0，the creasing wheel tool installation is finished. (3)The falling position of creasing wheel is the same as the setting method of knife depth, but the specific position is subject to the actual folding effect.
  • Page 41 ②Make sure that the value of the W1 axis is 0.00,and the cutting edge of the knife must face the X+ direction,tighten the fixing ring and set screws. ③The method to tighten the set screw which is at the X+ position， please refer to 7.6->(2).
  • Page 42 (Note:The value of the“v angle”must be the same as the angle of the actual installation position of the knife.） C.Press to to return to Vcut page，when setting the knife depth, just let the tip of the knife enter the corrugated paper 0.2-0.3mm. D.Press ，The machine will cut two vertical lines in X direction，...
  • Page 43 ③The method to tighten the set screw which is at the X+ position， please refer to 7.6->(2). ④Debugging(It is recommended to use corrugated paper for debugging) A.Put the corrugated paper on the felt B.Press → the buttons and the parameters must be set as below：...

  • Page 44: Punching Tool（Sp2

    D.Press to return to Vcut page. E.Press ，The machine will cut two vertical lines in X direction，if it cut like this: ,you need to adjust the knife position manually for fine-tuning till it can cut like this First loosen the screws fixing the knife in the figure above until the knife can move, then use a wrench to turn the set screw, change the knife position and fix the knife again.
  • Page 45 sequence. (3)Adjust the knife depth，press → → ， Check whether the falling depth of punching tool is suitable，press again，the punching tool will raise.If the falling depth of the punching tool is not suitable，you can adjust the nut on the top of the punching tool to fine-tune the depth of the punching tool,as shown below: (4)Test offset, the V-knife and round knife should be as follows: (5)SP number setting...

  • Page 46: Milling Tool（Sp6

    ② Round knife SP number setting, when the cutting graph in the processing file is greater than 50mm, you can click → → . When the cutting graph in the processing file is less than 50mm, you need to select the circles which need to be punched in the processing file, then change their SP number to SP2,as shown below: 7.7 Milling Tool（SP6）...

  • Page 47: Test Angle And Test Offset

    pipe. (3)Connect the dust suction pipe and the spindle connecting cable as the below figure. (4)Installation of the milling cutter (5)After the installation is completed and when set the knife depth, just let the end of the milling cutter contact with the felt. 8.Test Angle and Test Offset (Note:Testing angle is taking the oscillating knife cutting tool as an example.Testing offset is taking the oscillating knife cutting tool...

  • Page 48: Test Angle

    The“test angle”and“test offset”page,press → ， as shown below: 8.1 Test Angle (Note:1.Before testing the angle, the knife depth must be set first, and as long as the mark can be cut on the material.2.Before testing angle, a piece of material should be laid first, such as corrugated paper, KT board, soft glass, etc.) (1)Test Angle ①Press...

  • Page 49: Test Offset

    ③Each line of the cross is inclined to the counter-clockwise direction, then the angle of the tool should be adjusted in the clockwise direction. (2)Adjust Angle ①Press to change the step distance（Note:There are five values for switching:50,10,1,0.1，0.03） ②For example, if rotate the tool clockwise by 10 degree,the position of the tool will be corrected,please do it as followings:First，press to change it to ;Second,press...

  • Page 50: Maintenance

    to the distance between the red dot and the cross center;Second,press the arrow buttons in the below figure to move the red dot to the cross center position. (3)When the red dot is at the cross center,press to save the data.
  • Page 51 valve there is the pneumatic oscillating knife cutting tool, the pressure is 0.8MPa Check air pressure valve Make sure that there is no water in it Check screws Make sure that no screws loose or lost cutter head and tools Clean the felt surface Use air gun clean it, make sure that there is no sundries or bumps on it...
