COPYRIGHT © 2022 CrewPlex, LLC. All rights reserved. CrewPlex® and SmartBoom® are registered trademarks of CoachComm,
LLC. All other trademark references in this document are property of their respective owners.
Document Reference: D0000648_A
CrewPlex, LLC
205 Technology Parkway
Auburn, Alabama 36830 USA

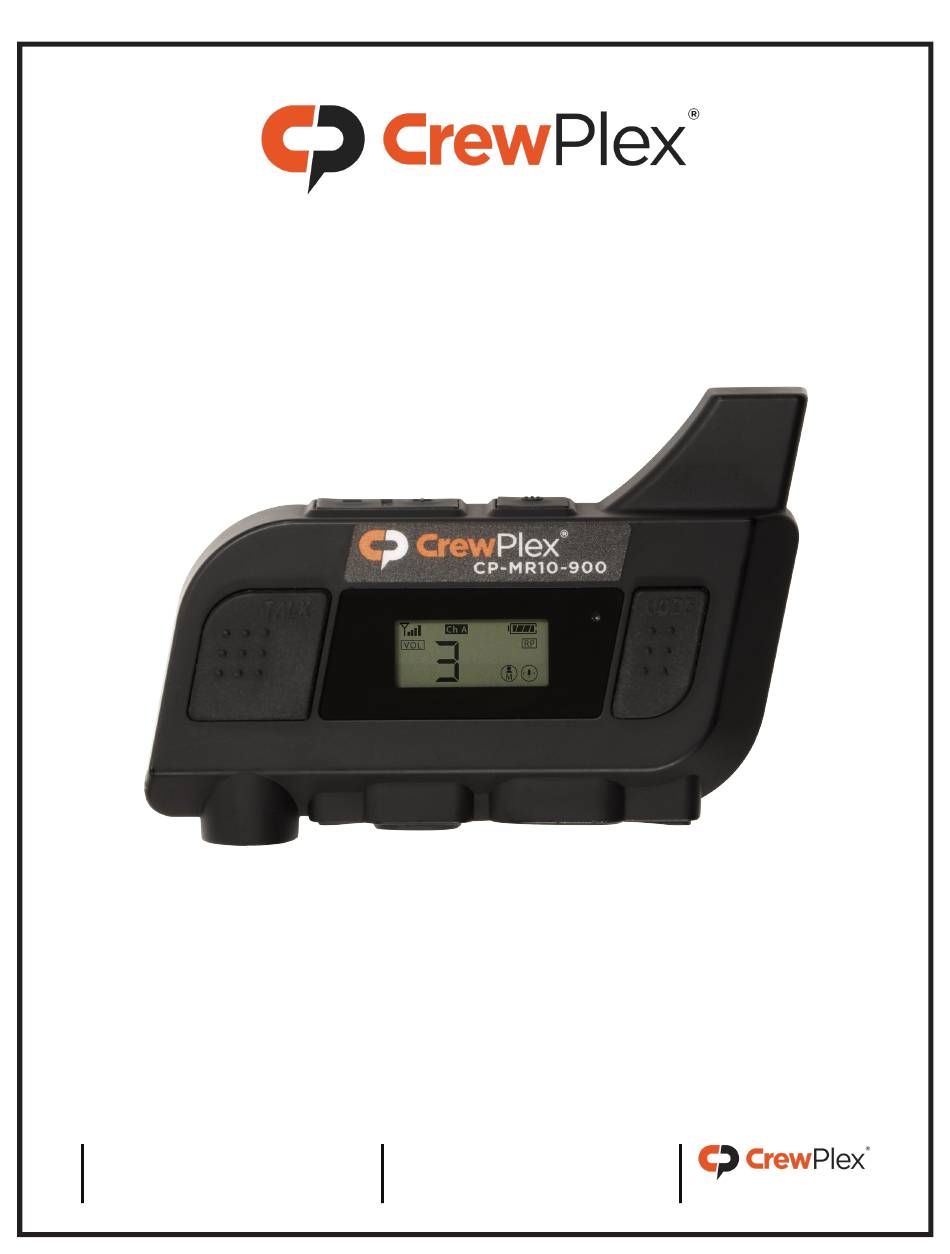

OP E RAT I N G MA NUA L
M R 1 0 - 90 0
™
Phone +1.334.321.1400
Fax +1.334.321.1162
www.crewplex.com
Advertisement
Table of Contents
Related Manuals for CrewPlex MR10-900
Summary of Contents for CrewPlex MR10-900
- Page 1 M R 1 0 - 90 0 ™ COPYRIGHT © 2022 CrewPlex, LLC. All rights reserved. CrewPlex® and SmartBoom® are registered trademarks of CoachComm, LLC. All other trademark references in this document are property of their respective owners. Document Reference: D0000648_A CrewPlex, LLC Phone +1.334.321.1400...
-
Page 2: Table Of Contents
CONTENTS INTRODUCTION ..............................1 WHAT’S INCLUDED WITH MR10-900? .......................2 CONTROLS ..............................3 DISPLAY INDICATORS ...........................3 SETUP................................4 BATTERY ................................6 OPERATION ..............................6 MENU SETTINGS.............................8 DEVICE SPECIFICATIONS ..........................10 PRODUCT CARE AND MAINTENANCE .......................11 PRODUCT SUPPORT ............................11 LICENSE INFORMATION..........................12 CREWPLEX WARRANTY STATEMENT ......................13... -
Page 3: Introduction
In order to get the most out of your new MR10-900, please take a few moments to read this manual completely so that you better understand the operation of this product. This document applies to model CP-MR10-900. -
Page 4: What's Included With Mr10-900
CHS-HH210R-DMGS CrewPlex Hard Hat/Helmet Headset with Dual Mini Connector for MR10 CHS-IEL-M CrewPlex In-Ear Headset, Single Ear Left Only with Single Mini Connector for DR5, DR10, and MR10 CHS-IELPTT-M CrewPlex In-Ear Headset with Push-To-Talk (PTT) Button, Single Ear Left Only with... -
Page 5: Controls
CONTROLS Power Button Antenna Power Button Volume +/– Buttons Antenna Volume +/– Buttons Status/ Charge LED Status/ Charge LED Talk Button LCD Screen Talk Button LCD Screen Mode Button Short press to change channel Long press to enter menu Mode Button Short press to change channel Long press to enter menu Mic Connection... -
Page 6: Setup
SETUP Connect a headset to the pack. 2. Power on. Press and hold the POWER button for two (2) seconds, until the screen turns on. 3. Access the menu. Press and hold the MODE button for three (3) seconds, until the screen changes to <SETTING MODE>. - Page 7 3. Use the appropriate two-way radio cable to connect the adapter to the two-way radio. 4. If desired, connect a secondary CrewPlex two-way radio adapter to each additional pack needing remote push-to-talk ability. (Users with a secondary adapter may push to talk from the adapter instead of the pack.)
-
Page 8: Battery
BATTERY The rechargeable Lithium-ion battery is installed in the device at shipment. To recharge the battery, plug the USB charging cable into the device USB port. The LED in the top right corner of the device will illuminate solid red while the battery is charging and will turn off once the battery is fully charged. - Page 9 OPE RATING M U LTI PLE M R1 0 - 90 0 SYST E MS IN O N E LO CAT I O N Each separate MR10-900 system should use the same Group and Security Code for all packs in that system.
-
Page 10: Menu Settings
MENU SETTINGS The following table lists adjustable settings and options. To adjust these settings from the pack menu, follow the instructions below. To access the menu, press and hold the MODE button for three (3) seconds, until the screen changes to show the first setting in the menu. 2. - Page 11 RECOM M E NDE D S E TTI N GS BY H E A DSE T The following table provides recommended MR10-900 settings for several common headset models. Recommended Setting Headset Model Mic Gain CrewPlex Hard Hat CrewPlex Hard Hat LITE...
-
Page 12: Device Specifications
3.46 oz. (98 g) Display * Notice about Specifications: While CrewPlex makes every attempt to maintain the accuracy of the information contained in its product manuals, that information is subject to change without notice. Performance specifications included in this manual are design- centered specifications and are included for customer guidance and to facilitate system installation. -
Page 13: Product Care And Maintenance
Material Authorization Number will ensure that your equipment is handled promptly. All shipments of CrewPlex products should be made via UPS, or the best available shipper, prepaid and insured. The equipment should be shipped in the original packing carton; if that is not available, use any suitable container that is rigid and of adequate size to surround the equipment with at least four inches of shock-absorbing material. -
Page 14: License Information
LICENSE INFORMATION CRE WPLE X MR10 -90 0 F CC CO M PLI AN CE STAT EM E N T 00004394 (FCCID: YJH-GM-900MSS) This equipment has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. -
Page 15: Crewplex Warranty Statement
CREWPLEX WARRANTY STATEMENT CrewPlex products are warranted to be free from defects in materials and workmanship for a period of two years from the date of sale to the end user, under the following conditions: • First year of warranty included with purchase.
