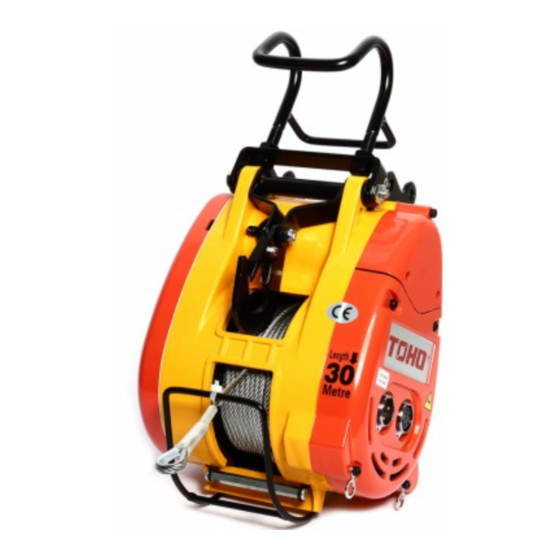

Instruction Manual
Mini Electric winch
S-series,T-series,M-series
READY THIS MANUAL BEFORE USING THESE PRODUCTS
This manual contains important safety, installation, operation
and maintenance information. Make this manual available to all
persons responsible for the operation, installation and
maintenance of the mini electric winch.
Advertisement
Related Manuals for TOHO S Series
Summary of Contents for TOHO S Series
- Page 1 Instruction Manual Mini Electric winch S-series,T-series,M-series READY THIS MANUAL BEFORE USING THESE PRODUCTS This manual contains important safety, installation, operation and maintenance information. Make this manual available to all persons responsible for the operation, installation and maintenance of the mini electric winch.
- Page 2 Table of Contents 10. Part List Parts description Parts description Part description MotorCover Screw Socket Bolt Reel Drum Upper Limit Holder Socket Bolt Wire Rope Fixing Screw Spring Label Screw 1.Specifications and Dimensions 83-1 Wsahser Rectifier Fixing Plate (M) 40-1 Spring Washer 83-2 Upper Limit Push Rod...
- Page 3 9.Parts drawing M-Series 9.Soecifications and Dimensions 280kg,360kg,500kg Model S-series T-Series M-series 160kg/180kg/230kg/250kg/300kg 280kg/360kg 500kg Rated Load Lifting Heigth Wire Rope Dia. 160kg 1200W 1300W 180kg/230kg/280kg Motor 1500W 250kg 1600W 300kg/360kg/280kg 160kg/180kg/230kg/250kg/300kg 19m/min 50Hz Lifting 280kg/360kg/500kg 13m/min Speed 160kg/180kg/230kg/250kg/300kg 23m/min 60Hz 280kg/360kg/500kg 15m/min Power...
- Page 4 2.Precautions 9.Parts drawing T-Series 280kg,360kg,500kg 2.1 GeneralSafety Precautions The winch has been designed to give safe and dependable service if operated according to the instructions. Please read and understand this manual before installation and operation of the winch. Follow these general safety precautions: ●Confirm thatthe winch complies with the using conditions.
- Page 5 9.Parts drawing S-Series 2.Precautions 280kg,360kg,500kg 2.1 General Safety Precautions The winch has been designed to give safe and dependable service if operated according to the instructions. Please read and understand this manual before installation and operation of the winch. To preventthe risk of electric shock, the power plug must be plugged into a matching ●...
- Page 6 3.Installation 9.Parts drawing M-Series 160kg, 180kg, 230kg, 250kg, 360kg 3.1 Winch Assembly Hanger Winch body Switch connector Brush holder Power plug Switch receptacle Wire rope Reverse winding limit lever Over-windling limit lever Pendant switch Weight hook 3.2 Mounting The winch designed to be hanged ormounted on a firm orstable barora bracket. When hanging, do not allow the body or load to be caught by any construction of frame, or other obstruction.
- Page 7 8.Parts drawing T-Series 4.Winch princi ples 160kg,180kg,230kg,250kg,300kg 4.1 Percentage Duty Cycle WARNING Never hoist over the rated percentage duty cycle. The life of the winch is depending on the conditions of the load and working frequency. In the long time operation, make sure to use the machine within its shorttime ratings. Shorttime ratings meansthe working duty cycle is subjectto the rated voltage, rated frequency and a 63% of rated load.All mini winches are rated 25% percentage duty cycle.
- Page 8 4.Winch princi ples 1.Parts drawing S-Series 160kg,180kg,230kg,250kg,300kg 4.4 Over-winding Lift Prevention ●A special mechanism prevents an over-winding when lifting. ●When the weight hook touches the limit lever. Lifting is automatically stopped. ●However, if the limit lever is set too close to the winch body, itwill cause serious damage to the 70-90mm limitleverand the winch body.
- Page 9 8.Wiring Diagram 5.Maintenance and Replacement Control Circut for S-series...
