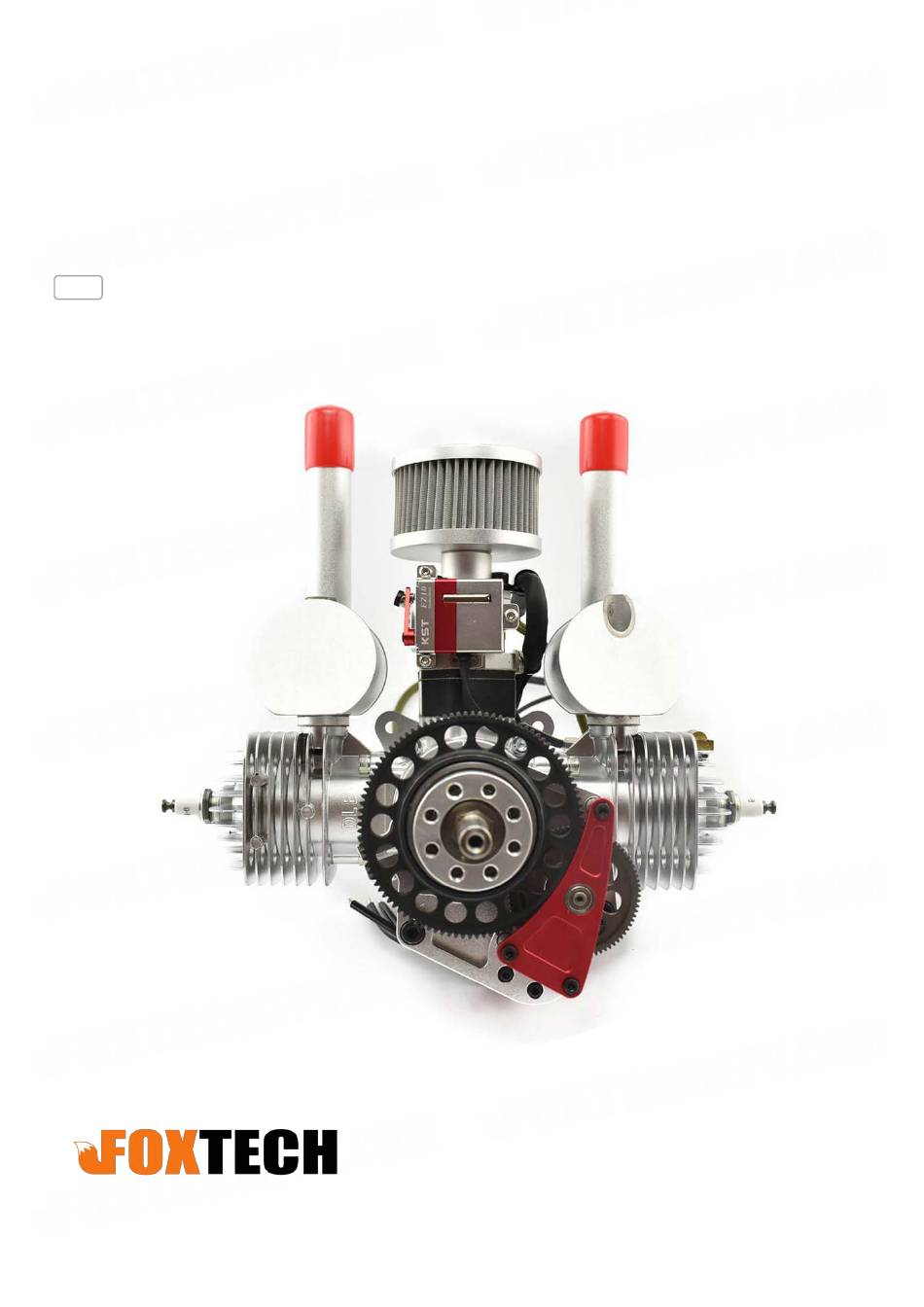

- Page 1 Halo-60 EFI Engine User Manual V1.0 2022.6...
-
Page 2: Table Of Contents
Halo-60 EFI Engine User Manual Table of Contents 1 General Safety ..............2 2 Un-Packing Your Engine ..........3 3 Engine Installation & Getting Started ......7 3.1 Hardware Installation ..........7 3.2 Throttle Setting ............8 3.3 Engine Oil Mix ............9 3.4 Starting the engine for the first time...... -
Page 3: General Safety
Halo-60 EFI Engine User Manual 1 General Safety: Read and understand this Owner’s Manual before operating your engine. You can help to prevent accidents by being familiar with the controls and observing safe operating procedures. Operator’s Responsibility: The operator should know how to stop the engine quickly in case of any Emergency. -
Page 4: Un-Packing Your Engine
Halo-60 EFI Engine User Manual 2 Un-Packing Your Engine Cautions： Your Engine comes with wire harnesses attached to the intake assembly. Handle the engine with care when removing the assembly from the box Package List： 1. Engine with Intake Assembly 2. - Page 5 Halo-60 EFI Engine User Manual Components & Descriptions ＾ ECU Input Harness from Receiver 15 Pin ECU Connector 、 Throttle Command ，． 多 Engine Hall connector 如 ＇ ` .. 、 .. m ， ． COi Hall Connector 七 山．『...
- Page 6 Halo-60 EFI Engine User Manual CDI Electronic Ignition CDI Power In Tach Output Fuel Pressure Regulator 心 ＇， 乙 :;:::.- _/"'Fuel In from Fue ， 多 / /Tank 产， ． Fuel Pressure Regulator Connector $＇｀' Fuel Out to Eng @2022 FOXTECH All Rights Reserved 5...
- Page 7 Halo-60 EFI Engine User Manual Assembly Hardware “ 令 七 心 t,8er Fuel Filter: between fuel Fuel Inlet Pipe tank and fuel pressure Fuel Outlet Pipe regulator Caution: Strictly connect the wires, wrong connection may cause engine damage @2022 FOXTECH All Rights Reserved 6...
-
Page 8: Engine Installation & Getting Started
Halo-60 EFI Engine User Manual 3 Engine Installation & Getting Started 3.1Hardware Installation 1. Do not install the ECU, fuel pressure regulator and CDI to the engine or motor mount. The vibration will damage the hardware. Route the ECU to a location inside the aircraft and mount it where vibration is minimal. -
Page 9: Throttle Setting
Halo-60 EFI Engine User Manual 3.2 Throttle Setting 1. Throttle commands use standard RC TX/RX or flight controller. The voltage of throttle servo installed on the engine is 6V-7.4V by RX or Flight Controller Channel Before starting the engine, adjusting the exponential rate of TX throttle curve or flight... -
Page 10: Engine Oil Mix
Halo-60 EFI Engine User Manual 3.3 Engine Oil Mix This engine was calibrated using 2 Stroke Racing oil at a mix ratio of 30:1 to 40:1. This oil type and mix ratio should be maintained to ensure that the fuel injection system and engine operates as designed. - Page 11 Halo-60 EFI Engine User Manual 8. Starting again after the first start. Give the prop several aggressive flips, the engine should start. If the engine does not start, increase throttle above 50% to clear possible flooded condition. Give the prop several more aggressive flips 9.
-
Page 12: Maintenance
Halo-60 EFI Engine User Manual 4 Maintenance Use the mixed fuel with mixed engine oil rate 40:1 based on recommended engine oil and petrol Maintenance Schedule: Item Before each flight 25 Hours/Per 50 Hours/Per 100 Hours/Per 300 Hours/Per Engine Oil Pre-Mix √... -
Page 13: Technical Specification
Halo-60 EFI Engine User Manual 5 Technical Specifications 1. Technical Data： • Idle: 2300 RPM • Max RPM: 7800 RPM • Thrust: 15KG/100 Meter Altitude • Propeller Range:22*10; 23*8; 23*10; 23*12; 24*10 • Spark Plug: CM-6 2. Parameter： • Displacement: 61cc •...
