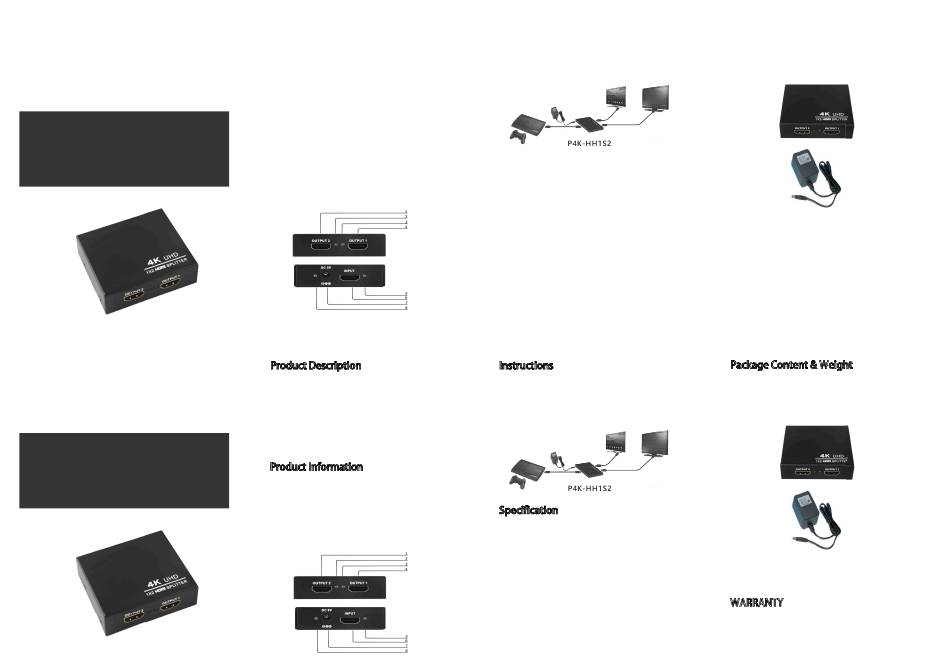

Partilink P4K-HH1S2 User Manual

P4K-HH1S2
4K HDMI 一對二訊號分配器
使用說明書
P4K-HH1S2
4K HDMI 1 X 2 Splitter
User Manual
產品功能簡介
•本產品 P4K-HH1S2為 HDMI 一對二訊號分配器。
•可以串接達16級。
•內含 EDID parsing機制，自動擷取編輯螢幕端解析度資訊
使DVD完整辨識輸出格式。
•提供客戶在連結DVD播放器、電腦與電視、投影機間雙重
影像訊號輸出使用。
•需外接 DC5V電源供應即可動作。
•工作電流180mA。
產品外觀說明
1. HDMI port 2訊號輸出連接埠。
2. HDMI port 2訊號輸出顯示燈號。
3. HDMI port 1訊號輸出顯示燈號。
4. HDMI port 1訊號輸出連接埠。
5. DC 5V 直流電源顯示燈號。
6. DC 5V 直流電源插孔。
7. HDMI port 訊號輸入連接埠。
8. HDMI port 訊號輸入顯示燈號。
P4K-HH1S2
P1
Product Description
•P4K-HH1S2 is a 1 to 2 HDMI Splitter
•Cascade upto 16 layers
•Auto EDID parsing, feedback the complete video
information to DVD player
•Enables image and sound from your HD satellite receiver
set-top box, games computer or Blu-ray Player to be
simultaneously shown on 2 screens
•System turns on when the DC 5V power supply connected
•Rated current 180mA
Product Information
1. HDMI output 2
2. HDMI output 2 LED indicator
3. HDMI output 1 LED indicator
4. HDMI output 1
5. DC 5V power LED indicator
6. DC 5V power input
7. HDMI input port
8. HDMI input LED indicator
P4K-HH1S2
P1
產品使用說明
•將 P4K-HH1S2 HDMI一對二訊號分配器以 HDMI cable 分別接
上欲訊號輸入源設備；如遊戲機或 DVD player，與訊號輸出
之顯示端設備；如電視或投影機。
•將 DC5V 之電源供應器插入電源插座並連接上P4K-HH1S2
HDMI一對二訊號分配器。
•開啟訊號輸入源設備與訊號 輸出之顯示端設備，即可顯示
影像。
產品規格
•HDMI 1.4 and 2.0 compliant
•HDCP 1.2
•HDMI 4K x 2K @60p (4:2:0)
•HDMI 4K x 2K @30p/1080p/1080i/720p/576p/576i/480p/480i
•HDMI 1080p 3D @60p
•Deep color 24bit/30bit/36bit
•LPCM/Dolby-AC3/Dolby True HD/DTS MD master audio
•Input HDMI cable distance ≦ 15m
•Output HDMI cable distance ≦ 5m
•Data transfer throughput 3.0Gbps
•Operating temperature 0~55℃
•Operating humidity 5%~90% RH
•Power adaptor AC in 100~240V (50~60Hz)
•Power Jack 2.0mm, +5V 1A
•ESD protection air gap discharge ±8KV,
contact discharged ±4KV
P2
Instructions
• Connect the HDMI cable from your signal source to the
HDMI Input port of P4K-HH1S2 HDMI splitter and connect
the HDMI cable from your display to the HDMI output port
of P4K-HH1S2 HDMI splitter
•Connect the included power adapter to the DC jack, then
plug it into an AC outlet
•Turn on all the devices
Specification
•HDMI 1.4 and 2.0 compliant
•HDCP 1.2
•HDMI 4K x 2K @60p (4:2:0)
•HDMI 4K x 2K @30p/1080p/1080i/720p/576p/576i/480p/480i
•HDMI 1080p 3D @60p
•Deep color 24bit/30bit/36bit
•LPCM/Dolby-AC3/Dolby True HD/DTS MD master audio
•Input HDMI cable distance ≦ 15m
•Output HDMI cable distance ≦ 5m
•Data transfer throughput 3.0Gbps
•Operating temperature 0~55℃
•Operating humidity 5%~90% RH
•Power adaptor AC in 100~240V (50~60Hz)
•Power Jack 2.0mm, +5V 1A
•ESD protection air gap discharge ±8KV,
contact discharged ±4KV
P2
產品包裝說明
•P4K-HH1S2 HDMI一對二訊號分配器。 X1
•DC5V 之電源供應器。 X1
•產品使用說明書。 X1
•產品總重261克。
※照片中配件外觀僅供參考,外觀依實際附上之配件為主。
產品包裝說明
正常使用下自購買日起保固一年。
UM-P4K-HH1S2-001
P3
Package Content & Weight
•P4K-HH1S2 HDMI Splitter X1
•DC5V power adaptor X1
•User Manual X1
•Total weight 261g
※The looking of the accessories are subject to the actual
and change without notice basis.
WARRANTY
The period of warranty shall start from the date
of delivery of the product to the customer and shall
cover a period of a year.
P3 UM-P4K-HH1S2-001
