3. Electrical diagram ........11 4. Adjustments ..........13 Spare parts list Control unit ............ 15 Frame unit (ES-103) ........19 Frame unit (ES-104) ........21 Frame unit (ES-104C) ........29 Frame unit (ES-104L) ........31 Reel unit (ES-103) ......... 35 Reel unit (ES-104) .........

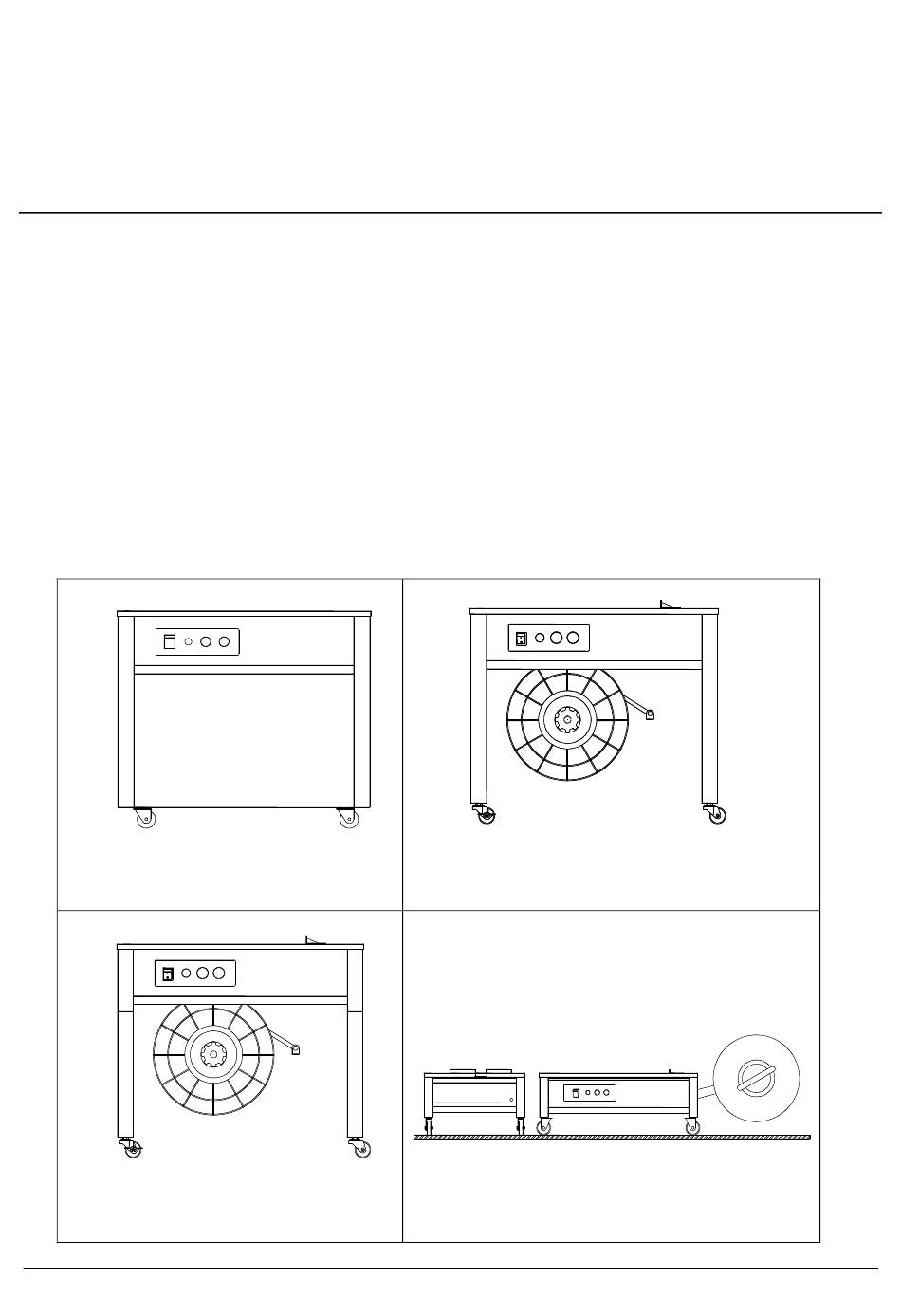

General Description The light and compact des0ign allows easy transportation and op- eration in a very small space. A single motor powers these models assuring stable operation even if the voltage drops. Strap widths to 6-15.5 mm can be easily adjusted by loosening only two screws.
Technical data Semi-automatic strapping machine Capacity: Strap width: Power consumption: approx.12 strapping/minute (6, 9), 12 and 15.5 mm approx. 0,77kW Min. package size: Strap dispenser: Power connection: 60 x 30 mm Inside diameter of coil 110V/60Hz/1Ph ...
Control elements Main switch “1” Power ON. “0” Power OFF Length knob The length of the strap be fed out can be pre-set automatically by adjusting the knob. Reset push button switch Aggregate start a cycle. Feed push button switch To feed strap out of machine freely.
Operating Turn the timer knob to determine the length of strapping supplied for next cycle. Timer graduations are provided from 0 to 5 The length of strap fed out in one second is approx. 1 meter. seconds. Place a package on the top of the machine, and pass the free end around the package; insert the leading end of the strapping into the strapping inlet until the leading end is detected.
Maintenance General Keep the machine clean and neat at all times The sealer housing assembly should be blown out weekly. Attention: Pullout the plug before removing any enclosures for mainte- nance or service. 2. Lubrication Apply a few drops of light lubricant (Daphne Mechanic oil or equivalent) to oil holes and on sliding parts (see the diagram above) once per week.
Troubleshooting 1. The strap will not feed out 1. Turn the motor switch OFF. 2. Strongly pull the strap out in the tightening direction. 2. Strap is buckled and jammed Remedy: 1. Remove hexagon nut (1), spring washer (2) and flat washer (3). 2.
Page 9
Troubleshooting The gripper is locked in the raised position Remedy: 1. Turn the motor switch OFF, then turn it on again 2. If this does not work, adjust the switch level below the slide for LS1, so that activation and disactivation of LS1 is correct.
Page 10
Troubleshooting 6. Strap will not reverse for tensioning Remedy: The Strap is in the correct position, but sealing doe not take place, which occurs when a soft article (package) is being loosely strapped and the friction plate in the tightening adjustment section is slipping. 1.
Adjustments 1. Strap width Adjustment for straps of different width (x) can be done with a Philips screwdriver. The two strap guides have to be adjusted so there is a clearance between strap and guide of 0.5 mm to 1.0 mm.
Page 16
Control unit Part No Description S23-191002 Pulley 4A S23-191000I Reducer Box Assembly S13-110008 O-Ring S13-110009 Solenoid Shaft S23-190011 Motor Pulley S35-125011 Rear End Guide S23-191001 Reduction Gear Box E21-020004 Clutch S23-190003-1 Cam Shaft S23-180011 Collar S23-180012 Collar S23-180013 Collar S23-180014 Collar S23-180015 Collar...
Page 17
Control unit Part No Description S13-123102 Plunger Spring S13-123105 Spring Hook S13-125002 Base Guide (A) S13-125003 Base Guide (B) S13-160001-02 Pulley #170 S13-160002 Friction Disc. S13-160003N Clutch Plate ( R ) S13-160004 Spring S13-160006 Spring Retainer S13-160007-2 Round Belt S13-160009N Clutch Plate (L) S23-160012-3 Fixed Arm for Open Type...
Page 18
Control unit Part No Description S13-171008N Feed Back Gear S13-171009N Gear S13-171012 Roller #192 S13-171017 Collar (A) S13-171019-02 Roller #116 S13-171021-01 Outlet Cover #215 S13-171022 Band Adjustment Plate S13-171023-01 Outlet Guide #216 S13-171026-01 Inlet Cover #212 S13-171031 Washer #213 S13-172002-01 Shaft Holder S13-172005N Feed Roller Shaft...
Page 20
Frame unit─ES-103 Part No Description S23-190009-1 Bracket S13-300009 Knob S13-350002-0 Support S23-330050R2 Top Plate (Hinge Type) S13-300008R2 Package Guide S13-300016 Plastic Lid S13-390050R1 Support Rod S23-330001-2 Screw S13-423001 Shaft S13-171026-3 Inlet Cover (15mm) S13-370050-2 Frame S13-370650-0 Frame(CE) S13-330050R1 Side Door (L)
Page 38
Reel unit─ES-104 Part No Description S23-420003-0 Brake Arm Shaft S23-421350-0 Reel Support S23-422150-1 Brake Base S23-423001 Brake Arm S23-423003 Spring S23-423005-1 Brake Spring Adjustment S23-430002 Reel Shaft S23-430003-120 Reel Side Plate (Outside) S23-431050-120 Reel Side Plate (Inside) S13-410006 S13-450001 Reel Nut Handle (R) S14-422001 Brake Belt S14-422002-2...
