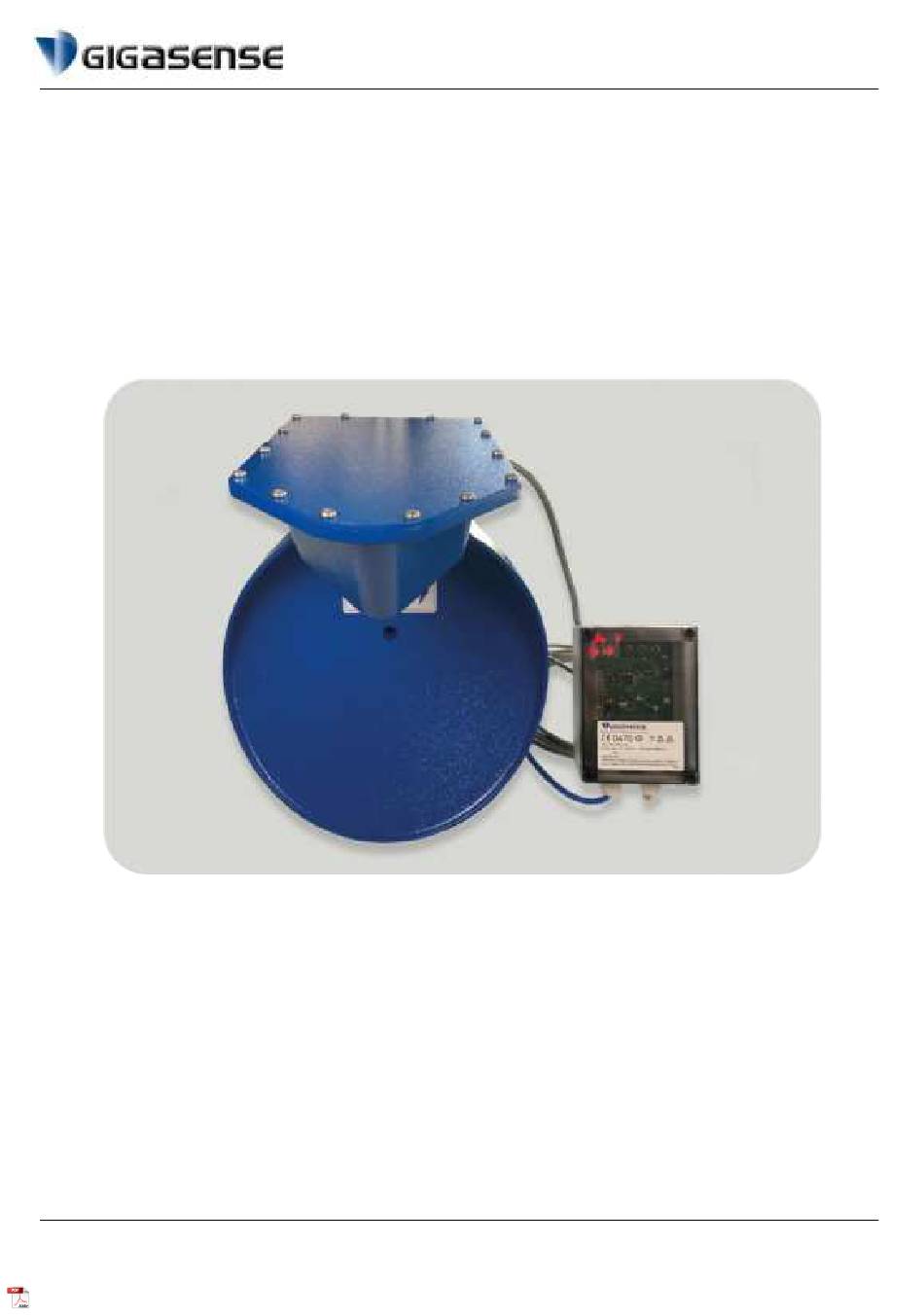

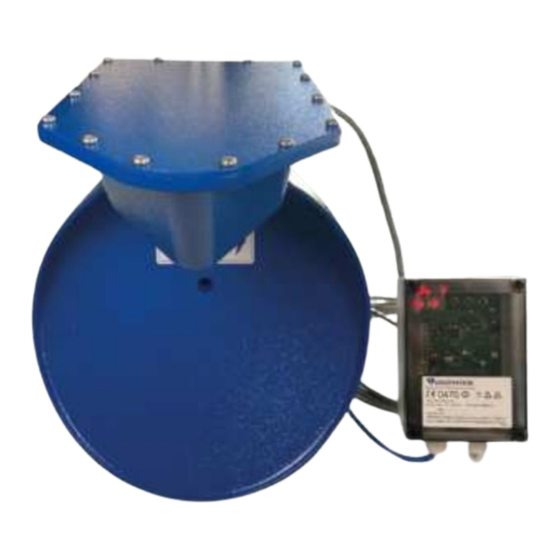

- Page 1 User manual GII Anti-Collision System GIGASENSE® II Intelligent Microwave Anti-Collision System USA and CANADA Relay box program version: 4502-0244 B013 and higher Antenna box program version: 5:36 2016-03-09 and higher GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 1 / 42...
-
Page 2: Software
SOFTWARE Gigasense continuously improves and optimizes the GII system, therefore upgrades and updates of the software will be necessary. In the event of necessary upgrades and updates, it is the end users´ responsibility to ensure that the upgrades and updates are carried out. -
Page 3: Table Of Contents
MTTFd and DIAGNOSTIC COVERAGE ..................... 42 CE-CERTIFICATION ..........................42 FCC and IC-CERTIFICATION ........................42 CONTACT ............................... 42 Appendix 1: Frequency data and working range – Countries Appendix 2: WARNING - MAINS SUPPLY GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 3 / 42... -
Page 4: General - Intended Use
For correct detection of this function, it is necessary to have a surface of metal with minimum 1 m² behind the antennas. GIGASENSE II contains a Microwave transmitter. Although it has very low output power, this system must conform to the local regulations set up by the Telecom Authority in the user country. -
Page 5: Construction
This device complies with part 15 of the FCC Rules. Operation is subject to the following two conditions: (1) This device may not cause harmful interference, and (2) this device must accept any interference received, including interference that may cause undesired operation.” IC Statements: GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 5 / 42... - Page 6 5° and 40°C, and max. relative humidity is 80% (up to 31°C, decreasing linearly to 50% at 40°C). • Turn off all power if any work is to be done on the system. The GIGASENSE II is powered with 24VDC.
-
Page 7: Specifications
User manual GII Anti-Collision System • If this equipment is used in a manner not specified in this manual, or by Gigasense AB personnel, protection or function normally provided by this equipment may be reduced. • The analogue 4-20 mA output must not be used for decisions such as braking and stopping the crane. -
Page 8: Safety & Environment
Unit A and Unit B can be much longer than the range. Principle of the modulated signal (fingerprint) reflection in the Gigasense II system: GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB... - Page 9 The Unit A and Unit B work independently of each other and continuously transmit their respective signals. When the units are in range for the modulated reflection, the Limit 1 and Limit 2 will activate at preset alarm limits. GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 9 / 42...
- Page 10 User manual GII Anti-Collision System Principle of the unmodulated signal reflection in the Gigasense II system: Figure 3A. Unit A (or Unit B) transmits an unmodulated Microwave signal towards the unidentified object. Figure 3B. The Microwave signal is reflected unmodulated by the unidentified object and received in the Unit A (or Unit B) where it triggers an alarm.
-
Page 11: Function - One Moving Crane
Figure 5B. Transponder Unit B (without relay box) modulates the Microwave signal, Unit A receives the modulated reflection. When unit A is in the range for the modulated reflection, Limit 1 and Limit 2 will activate at preset limits. Antenna box Transponder box GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 11 / 42... -
Page 12: Installation
1 m² behind the antennas. A plate of 1 m² or larger can be installed behind the antennas, if the location of the installation do not have enough surface of metal behind the antennas. See figure below. GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 12 / 42... - Page 13 (mounted on the three 8mm bolts). A laser water level pointer is a good tool to help up the alignment. GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 13 / 42...
- Page 14 User manual GII Anti-Collision System Tools for the alignment procedure: - A laser water level pointer - A quick grip tool Dimensions of the antenna: GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 14 / 42...
-
Page 15: Installation - Alignment Procedure
1 to support and align the laser water level pointer (see figure 2). Check the alignment of the reflector no.1. Use washers or adjust the nuts if needed to align correctly (see figure 3). Figure 3 Figure 2 GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 15 / 42... - Page 16 (fitted on reflector no. 1). see figure 4. Figure 4 Step 5 (reflector no. 2) Use the water level indicator to align reflector no.2 (see figure 5). Figure 5 GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 16 / 42...
- Page 17 1,5 degrees to the right. See figure 9 and 10, showing the Microwave spread. Figure 8 GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 17 / 42...
- Page 18 Signal strength (Str) according to test certificate 5 meters (dist) Microwave transmitting spread from A-unit to B-Unit and from B-Unit to A-Unit with a 1 mm washer assembled (see figure 9). Figure 9 GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 18 / 42...
-
Page 19: Installaton - Wiring
5 meters cable length. As an option, cable can be ordered in any length (max. 30 meters) and is then pre-installed in the antenna box from the factory. Cable connection in the antenna box. GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 19 / 42... - Page 20 The cable shield must be connected to the cable gland in the antenna box. The relay outputs can be connected in Normally Open (NO) contacts or Normally Closed (NC), contacts depending on type of crane, see note in the connections for the relay box. GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 20 / 42...
-
Page 21: Installaton - Power Supply
If the crane has the ground/earth terminated to the crane construction, the GII antenna (reflector) shall be isolated by rubber bumps or equal, when fixed with the three bolts in the crane. GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 21 / 42... - Page 22 User manual GII Anti-Collision System Supply voltage box (optional). GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 22 / 42...
-
Page 23: Optional - Power Bank Backup Of The Modulated Signal
Modification of antenna and transponder circuit boards for battery backup is necessary for all systems with S/N 0650 and earlier. From system S/N 0651 and later, antenna and transponder circuit boards are pre-modified as standard. GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 23 / 42... -
Page 24: Installaton - Connections Of The Antenna Box
2Nm. WARNING! NEVER DISMANTLE THE MICROWAVE HEAD OR ADJUST THE SEALED SCREWS. THE MICROWAVE HEAD IS TUNED TO A CERTAIN FREQUENCY! ANY CHANGE WILL CAUSE THE SYSTEM NOT TO FUNCTION PROPERLY. GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 24 / 42... -
Page 25: Installaton - Connections Of The Relay Box
RS485 signals are allowed with the lid open! Operation with open lids is only allowed during installation and maintenance, and in a controlled environment (for specification of controlled environment, see chapter "SAFETY INFORMATION AND WARNINGS". GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 25 / 42... -
Page 26: Push Buttons
“SYSt FAIL” will be displayed: S Y S t B 1 2 F A I L GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 26 / 42... - Page 27 NOTICE! the maximum working range varies for different frequencies from 20 m to 40 m due to restricted output power (EIRP), see appendix 1. Control of the relay functions´ output for modulated signal reflection GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 27 / 42...
- Page 28 Limit 2 will not deactivate automatically and must be reset by a control signal (24 VDC) to the relay box. M o d E M o d E M o d E GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 28 / 42...
- Page 29 When the LED (LD1) “Signal” does not lit (out of range), the display shows a dB value, which should be disregarded. Actual speed in meter/Second to opposite unit. S P E Minus sign indicates that the units move towards each other GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 29 / 42...
- Page 30 ABS Speed = actual speed SpeedCompStart = The speed which must be exceeded to start the compensation. Default value is 0,1 m/s (can be changed by Gigasense AB). SpeedCompLIM1 (SPd1) = Speed compensation value in percent, range 10 – 1500 % to be set by the user.
- Page 31 2 is delayed by the set time in this menu. To avoid abrupt stop signal (Lim 1, brake signal is active before the time of the 0 2 0 set delay). Range 0,0 – 3,0 seconds. GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 31 / 42...
- Page 32 According to step “B”, it is NOT ENOUGH to turn off the mains supply, to the opposite unit. The Super Capacitor operates the modulated reflection, if the diode is not disconnected. You must disconnect the connector from the diode on the antenna PCB. GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 32 / 42...
- Page 33 10.475 GHz = uodb 47 dB 10.54 GHz = uodb 47 dB Actual temperature (degrees Celsius) in relay box. T E M P 2 2 5 The menu scrolls to first menu "L1" GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 33 / 42...
-
Page 34: Adjustments & Test Of Performance
Check that no false alarm occurs. MAINTENANCE GIGASENSE II is designed to be maintenance free, and checking of the performance can usually be made in the normal operation before the cranes are operated. When the equipment is operated in severe environment, high temperature, high humidity etc, it is however recommended that ocular inspection inside and outside of all parts is done on a regular basis i.e. -
Page 35: Troubleshooting
The unit A and Unit B are positioned close beyond the maximum range limit where the echo of the modulated reflection is weak. No action, these values are normal and will be filtered in the relay box to not affect the relay outputs. GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 35 / 42... - Page 36 Unexpected Lim1 / Lim2 trips or the Lim1 / Lim2 do not trigger at expected distances. Lim1 / Lim2 set close to max. range. a) Check the (dBFI) filter for signal strength. See chapter “Menu structure”. b) Decrease the levels for Lim1 and Lim2. GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 36 / 42...
- Page 37 The 0 VDC has the same potential as the crane ground/earth. The 0 VDC leads through the antenna box and feeds the relay box mains supply 0 VDC. The antenna (reflector) must be isolated by rubber bumps or equal to isolate the antenna from the crane metal. GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 37 / 42...
-
Page 38: Identification & Spare Parts
- Antenna box Unit A (or transponder box) - Antenna box Unit B (or transponder box) - Relay boxes Transponder box The article number is added with "TR" A/N = e.g. GIITR10525B Gigasense II 10.525 GHz A-Unit GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 38 / 42... - Page 39 The tuned frequency is noted on the Microwave head. The Microwave head can be used with both A-units and B- Units. The antenna circuit board is programmed to A Unit or B Unit and to work for a certain frequency. GIIMAN_US_CA_000_2021-06-15.docx © Gigasense AB Page 39 / 42...
-
Page 40: Replacement Of Parts & Disposal
"INSTALLATION" to verify proper function of the complete system. When proper function is verified, the system can be used again. Replaced and disposed parts can be sent to Gigasense AB for destruction. RECOMMENDED SPARE PARTS Complete system unit A and unit B: 1. -
Page 41: High Risk Applications
The GII system has MTTFd values which allows, under certain circumstances, to use the GII system in high risk applications. In this case, two Gigasense Systems operate in parallel (as two channels): System 1: A-unit + B-unit System 2: A-unit + B-unit. -
Page 42: Mttfd And Diagnostic Coverage
Directive RED (Radio Equipment Directive) 2014/53/EU. For a list of countries where this equipment may be used, see appendix 1. FCC and IC-CERTIFICATION Hereby, Gigasense AB, declares that this equipment complies with the FCC and IC regulations. FCC: YBQ-GII10525 IC: 8963A-GII10525...
