Hangzhou Roombanker Technology Co., Ltd.
Revision History
Specification
Rev
Date
1.0
2020-01-30
1.1
Approvals
Organization
Hangzhou Roombanker Technology Co., Ltd.
Tel:86-571-86769027/8 8810480
Website:
www.dusuniot.com
User Manual

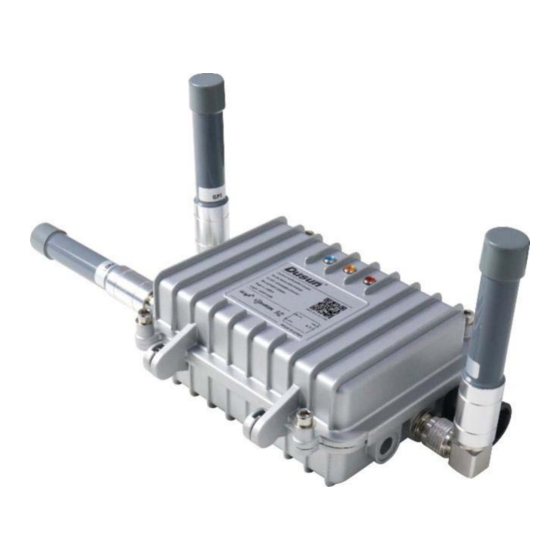

Product Name: Outdoor LoraWAN Gateway
Model Name: DSGW-010C
Sect.
Update Description
New version release
Name
www.dusunremotes.com
Title
Floor 8, building A, Wantong center,
Hangzhou 310004, china
www.dusunlock.com
A DUSUN company
By
Date
Advertisement
Table of Contents
Subscribe to Our Youtube Channel
Related Manuals for Dusun DSGW-010C
Summary of Contents for Dusun DSGW-010C
- Page 1 Hangzhou Roombanker Technology Co., Ltd. A DUSUN company User Manual Product Name: Outdoor LoraWAN Gateway Model Name: DSGW-010C Revision History Specification Sect. Update Description Date 2020-01-30 New version release Approvals Organization Name Title Date Hangzhou Roombanker Technology Co., Ltd. Floor 8, building A, Wantong center,...
-
Page 2: Table Of Contents
Hangzhou Roombanker Technology Co., Ltd. A DUSUN company 1 Introduction ................................3 1.1 Purpose& Description ............................3 1.2 Product Feature Summary ..........................3 1.3 LongFi™ Technology ............................3 1.4 Proof of Coverage ............................... 3 1.5 Hardware block diagram ............................ 4 2 Mechanical Requirement ............................ -
Page 3: Introduction
Earn HNT cryptocurrency by mining Helium and building coverage for The People’s Network using the DSGW-010C HNT Outdoor Hotspot Miner. Anyone can join The People's Network and provide hundreds of square miles of wireless network coverage, while mining HNT on the Helium Blockchain just as hotspot miners The Outdoor HNT Hotspot Miner opens up a plethora of opportunities, such as the ability to mount a hotspot to the side of buildings, houses and roofs. -
Page 4: Hardware Block Diagram
Hangzhou Roombanker Technology Co., Ltd. A DUSUN company Hardware block diagram RJ45/PoE Ethernet UART L76-33M DDR3 2GB PX30 Quad-core Cortex-A35 eMMC LoRa SX1302 SDIO Wi-Fi/BLE Module AP6225 Mechanical Requirement Drawings Hangzhou Roombanker Technology Co., Ltd. Floor 8, building A, Wantong center,... -
Page 5: Interface
Hangzhou Roombanker Technology Co., Ltd. A DUSUN company Interface installation Hangzhou Roombanker Technology Co., Ltd. Floor 8, building A, Wantong center, Tel:86-571-86769027/8 8810480 Hangzhou 310004, china Website: www.dusuniot.com www.dusunremotes.com www.dusunlock.com... -
Page 6: Electrical Requirements
Hangzhou Roombanker Technology Co., Ltd. A DUSUN company Electrical Requirements Hardware Information Category Specifications Quad-core Cortex-A35 eMMC 32GB System Linux Security module ATECC608 Power Supply Port Support DC input , input Voltage range is 4.75V to 5.25V. Power seat The needle diameter is1.35 mm and is positive. Power aperture is 3.5mm. - Page 7 Hangzhou Roombanker Technology Co., Ltd. A DUSUN company 802.11n (HT20): MCS0~MCS7 6.5~72.2Mbps; 802.11n (HT40): MCS0~MCS7 13.5~150Mbps; Frequency offset: +/-30KHz Sensitivity: 802.11b@11Mbps: -86dBm@10% PER 802.11g@54Mbps: -74dBm@10% PER 802.11n@HT20_MCS7 : -69dBm@10% PER 802.11n@HT40_MCS7 : -67dBm@10% PER Transmit Power: 802.11b: 17±1.5dBm @11MHz 802.11g: 15±1.5dBm @54MHz 802.11n: 15±1.5dBm @HT20 MCS7...
- Page 8 Hangzhou Roombanker Technology Co., Ltd. A DUSUN company 802.11ac: 12±2dBm @VHT80 MCS9 • Wireless Security: WPA/WPA2, WEP, TKIP, and AES • Working mode : Bridge、Gateway、AP Client • E.i.r.p (Equivalent Isotopically Radiated power) (mW)<100mW • Bluetooth Specification: Bluetooth v2.1+EDR/4.0/4.2 Bluetooth RF •...
-
Page 9: Software Functions
Hangzhou Roombanker Technology Co., Ltd. A DUSUN company 210 PRN Channels • Horizontal Position Accuracy：Autonomous: < 2.5 m CEP • Velocity Accuracy：Without Aid: < 0.1 m/s • Acceleration Accuracy：Without Aid: < 0.1 m/s² • TTFF@-130dBm with EASY™ Cold Start：<15s Warm Start：<5s Hot Start：<2s... -
Page 10: Certification
Hangzhou Roombanker Technology Co., Ltd. A DUSUN company Certification Hangzhou Roombanker Technology Co., Ltd. Floor 8, building A, Wantong center, Tel:86-571-86769027/8 8810480 Hangzhou 310004, china Website: www.dusuniot.com www.dusunremotes.com www.dusunlock.com... -
Page 11: Fcc
Hangzhou Roombanker Technology Co., Ltd. A DUSUN company This device has been tested and found to comply with the limits for a Class B digital device, pursuant to Part 15 of the FCC Rules. These limits are designed to provide reasonable protection against harmful interference in a residential installation.
